Specifications
Place of Origin :
China
Brand Name :
Yush
Model Number :
SF
Certification :
CE
Price :
FOB: 15000~20000USD
Packaging Details :
Plastic Film or Wooden Box
Delivery Time :
15~30 working days
Payment Terms :
T/T
Supply Ability :
15 sets per month
MOQ :
1set
Automatic grade :
Automatic
Voltage :
220v/380v/440v
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Driven type :
Electric
Name :
Corrugated cardboard single facer line
Color :
Customized Color
Machine type :
Corrugated machine/single facer machine with low price
Usage :
corrugated making
Warranty :
One Year
Description

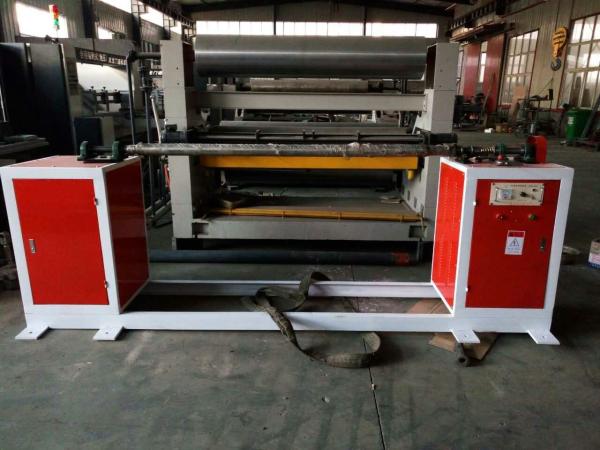

SF Finger type Single Facer Corrugator

1) SF Finger type Single Facer Corrugator adopts fingers to feeding paper.

2) Corrugator Roller adopt 45# steel, heated & grinded, Chrome-plated.

3) Low cost, easy to operate.

4) Adopt electrical heating, working speed about 20~40m/min.

Max Effective Width

1000~2000mm

Flute Type

customer-made

Corrugating Roller

Φ245mm, 45# steel, heated & grinded, Chrome-plated

Design Speed

60m/min

Heating Method

Electrical Heating

Economic Working Speed

20~40m/min

DW-60 Single Facer Corrugating Line

1) DW-60 Single Facer Corrugated Cardboard Production Line consists of three single machines, Shaft type Mill Roll Stand, Finger type Single Facer, Rotary Cutter, etc.

2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.

3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.

4) It is the ideal and perfect equipment for small or medium carton factories.

Max Effective Width 1000~2000mm
Max Paper Roll Diameter 1200mm
Max Paper Roll Weight 2000kg
Corrugating Roller Φ245mm, 45# steel, heated & grinded, Chrome-plated
Cutting Length 400~2400mm
Cutting Precision ±2.5mm
Design Speed 60m/min
Heating Method Electrical Heating
Economic Working Speed 20~40m/min

Finger type Single Facer, Finger type, Eletrical HeatingFinger type Single Facer, Finger type, Eletrical HeatingFinger type Single Facer, Finger type, Eletrical Heating

Finger type Single Facer, Finger type, Eletrical Heating
