Specifications
Place of Origin :
China
Brand Name :
Yush
Certification :
CE
Model Number :
DW-80
MOQ :
1 set
Price :
FOB: 15000~45000USD
Packaging Details :
Plastic Film or Wooden Box
Delivery Time :
30~60 working days
Payment Terms :
T/T
Supply Ability :
10 sets per month
Description

DW-80 Single Facer Corrugator Line

1) This product line consists of three single machines, Electrical Shaftless Mill Roll Stand, SF-280 Fingerless type Single Facer, NC Rotary Cutter, Steam Boiler & Pipeline(customer-owned parts), etc.

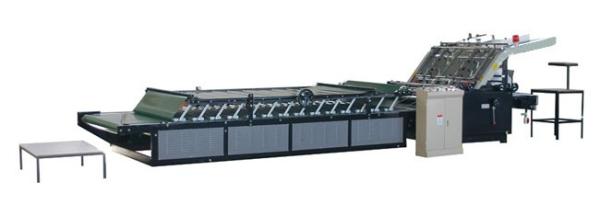

2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Flute Laminator Machine or Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.

3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.

4) It is the ideal and perfect equipment for small or medium carton factories.

Max Effective Width

1100~2200mm

Max Paper Roll Diameter

1400mm

Max Paper Roll Weight

2000kg

Corrugating Roller

Φ280mm, 48CrMo alloy steel, hardness HRC58°-60°

Cutting Length

300~9999mm

Cutting Precision

±1.5mm

Design Speed

80m/min

Heating Method

Steam Heating

Economic Working Speed

60~80m/min
