3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
Specifications
Place of Origin :
China
Brand Name :
Yush
Model Number :
WJ
Certification :
CE
Price :
FOB: 200000~800000USD
Packaging Details :
Plastic Film or Wooden Box
Delivery Time :
3~5 months
Payment Terms :
T/T
Supply Ability :
5 sets per month
MOQ :
1set
Description

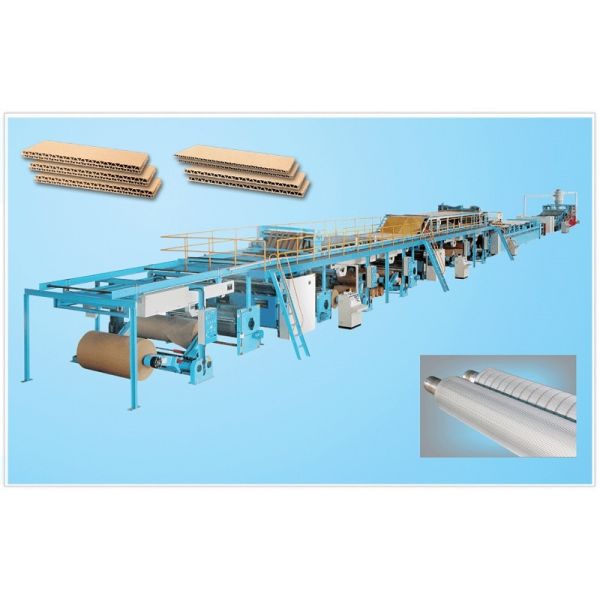

WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line

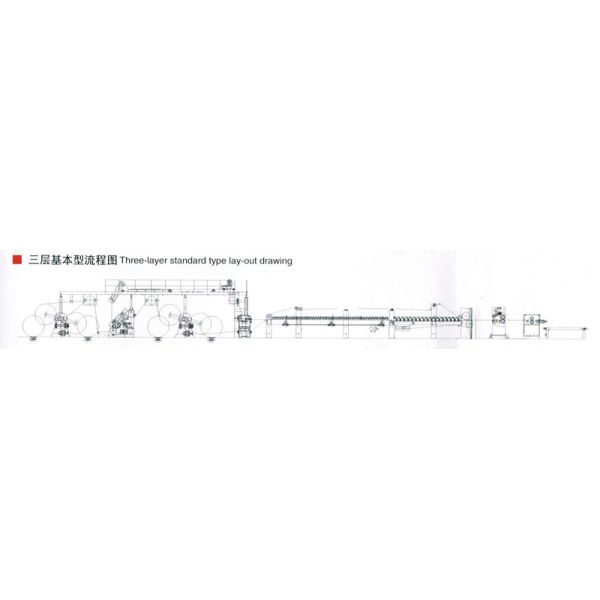

1) WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical Shaftless Mill Roll Stand, Single Preheater, Fingerless type Single Facer, Overhead Conveyor Bridge, Duplex Preheater, Duplex Gluer, Double Facer, Lift-down Thin Blade Slitter Scorer, NC Cut-off, Right-angle Conveyor & Stacker, etc.

2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 3/5-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.

3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.

4) It is the ideal and perfect equipment for corrugated carton box factories.

Max Effective Width

1100~2200mm

Max Paper Roll Diameter

1500mm

Max Paper Roll Weight

3000kg

Corrugating Roller

Φ280~380mm, 48CrMo alloy steel, hardness HRC58°-60°

Min Slitting Width

150mm

Cutting Length

500~9999mm

Design Speed

80~200m/min

Heating Method

Steam Heating

Economic Working Speed

60~160m/min

3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine

3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine

3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine

3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
