Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line
Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line
Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line
Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line
Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line
Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line
Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line
Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line
Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line
Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line
Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line
Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line
Specifications
Place of Origin :
China
Brand Name :
Yush
Certification :
CE
Model Number :
ZJZ-A
MOQ :
1 set
Price :
FOB: 30000~40000USD
Packaging Details :
Plastic Film or Wooden Box
Delivery Time :
30~60 working days
Payment Terms :
T/T
Supply Ability :
15 sets per month
Description
Full Automatic Computer-control Glue Kitchen

1) Full Automatic Computer-control Glue Kitchen entire system adopt PLC control, precision measurement.

2) Equipped with temperature sensors and temperature display to control glue temperature, to ensure starch perfect sluble in water, to avoid glue quality influenced by surrounding temperature changes.

3) Equipped with auto washing system, autoamtic clean tanks once glue supplying stop.

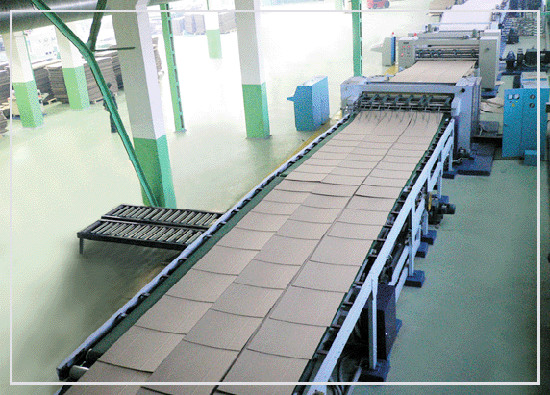

WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line

1) WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical Shaftless Mill Roll Stand, Single Preheater, Fingerless type Single Facer, Overhead Conveyor Bridge, Duplex Preheater, Duplex Gluer, Double Facer, Lift-down Thin Blade Slitter Scorer, NC Cut-off, Right-angle Conveyor & Stacker, etc.

2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 3/5-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.

3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.

4) It is the ideal and perfect equipment for corrugated carton box factories.

Max Effective Width 1100~2200mm
Max Paper Roll Diameter 1500mm
Max Paper Roll Weight 3000kg
Corrugating Roller Φ280~380mm, 48CrMo alloy steel, hardness HRC58°-60°
Min Slitting Width 150mm
Cutting Length 500~9999mm
Design Speed 100~200m/min
Heating Method Steam Heating
Economic Working Speed 80~180m/min

Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line

Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line

Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line

Full Automatic Computer-control Glue Kitchen, Corrugated Cardboard Production Line
