Specifications
Place of Origin :
China
Brand Name :
Yush
Certification :
CE
Model Number :
ZQS
MOQ :
1 set
Price :
FOB: 12000~15000USD
Packaging Details :
Plastic Film or Wooden Box
Delivery Time :
15~30 working days
Payment Terms :
T/T
Supply Ability :
30 sets per month
Description

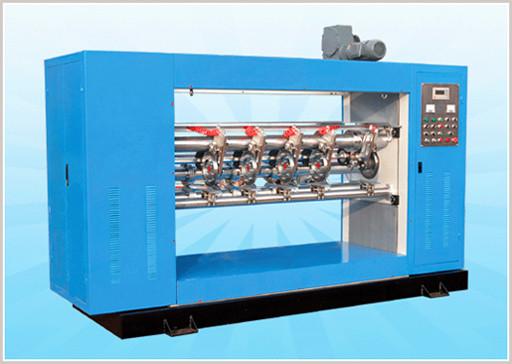

Lift-down Thin Blade Slitter Scorer

1) ZQS NC Computer-control Thin Blade Slitter Scorer as an important part of the corrugated cardboard production line is used to do the slitting and creasing.

2) Machine electrically lift-down, to meet different production lines cardboard height.

3) Machine with the electric axial displacement device, efficiently coordinate with cardboard mis-registration.

4) Manually adjust cardboard specifications, simple and practical.

5) Transmission part adopts synchronous belt, high accuracy.

6) Slitting unit adopt high-speed thin blade, the cardboard cutting edge flat, smooth, without crowded bifida and collapsed; pneumatic grinding; grinding automatically or manually while production process, grinding-time and stop-time can be setup, to ensure that the blade edge sharp.

7) Frequency control speed, speed encoder get production speed through velocimetry wheel directly, PLC issued directive, to adjust scoring motor speed, to ensure synchronous running with the production line.

Max Effective Width

1100~2200mm

Slitting Knife

4~6 pairs

Min Slitting Distance

140mm

Scoring Wheel

6~10 pairs

Min Scoring Distance

140mm

Design Speed

100~150m/min

Lift-down Thin Blade Slitter Scorer, Elcetrical Lift-down, Electrical AdjustmentLift-down Thin Blade Slitter Scorer, Elcetrical Lift-down, Electrical Adjustment

Lift-down Thin Blade Slitter Scorer, Elcetrical Lift-down, Electrical Adjustment

Lift-down Thin Blade Slitter Scorer, Elcetrical Lift-down, Electrical Adjustment
