Specifications
Place of Origin :
China
Brand Name :
Yush
Certification :
CE
Model Number :
ZJ-Y
MOQ :
1 set
Price :
FOB: 15000~20000USD
Packaging Details :
Plastic Film or Wooden Box
Delivery Time :
15~30 working days
Payment Terms :
T/T
Supply Ability :
15 sets per month
Automatic grade :
Automatic
Voltage :
220v/380v/440v
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Driven type :
Hydraulic
Warranty :
One Year
Name :
single facer 2 layer corrugated paperboard production line
Color :
Customized Color
Machine type :
Corrugated paperboard making machine
Usage :
corrugated making
Description
ZJ-Y Hydraulic Shaftless Mill Roll Stand

1) ZJ-Y Hydraulic Shaftless Mill Roll Stand two sets of Paper Vehicle and Track Rail will be provided for each Mill Roll Stand, to transfer the Paper Mill Roll.

2) Adopt double symmetrical shafts with four arms; Support two paper mill rolls on both arms at the same time.

3) Hydraulic control for paper mill roll up-down, electrical clamp-open and centering.

4) Web tension is controlled by pneumatic brake or manual brake.

5) Automatic expansion springiness chucks to reduce paper waste.

Max Paper Roll Width

1100~2200mm

Max Paper Roll Diameter

1500mm

Max Paper Roll Weight

3000kg

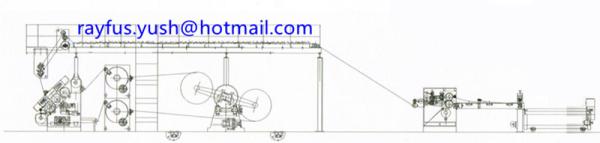

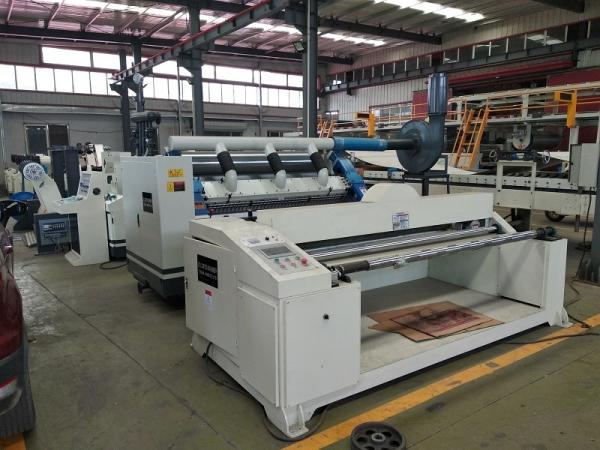

DW-120 Single Facer Corrugation Line

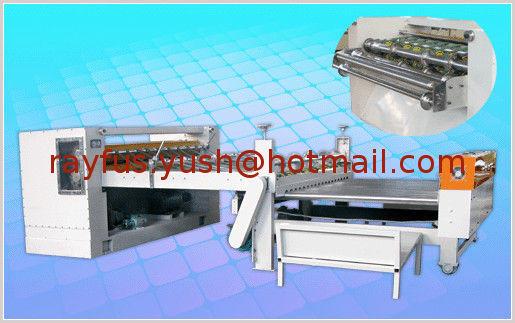

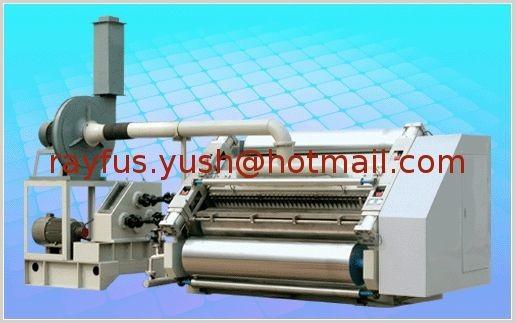

1) This product line consists of Hydraulic Shaftless Mill Roll Stand, Auto Splicer, Preheater, SF-320S Fingerless type Single Facer, NC Single Faced Slitter Cutter Stacker, Steam Boiler & Pipeline(customer-owned parts), etc.
2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Flute Laminator Machine or Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. Good work conditions.
4) It is the ideal and perfect equipment for small or medium carton factories.

Max Effective Width 1100~2200mm
Max Paper Roll Diameter 1500mm
Max Paper Roll Weight 3000kg
Corrugating Roller Φ320mm, 48CrMo alloy steel, hardness HRC58°-60°
Cutting Length 300~9999mm
Cutting Precision ±1mm
Design Speed 120m/min
Heating Method Steam Heating
Economic Working Speed 80~100m/min
