Specifications
Place of Origin :
China
Brand Name :
Yush
Certification :
CE
Model Number :
BFY-NC
MOQ :
1 set
Price :
FOB: 50000~60000USD
Packaging Details :
Plastic Film or Wooden Box
Delivery Time :
30~60 working days
Payment Terms :
T/T
Supply Ability :
15 sets per month
Description

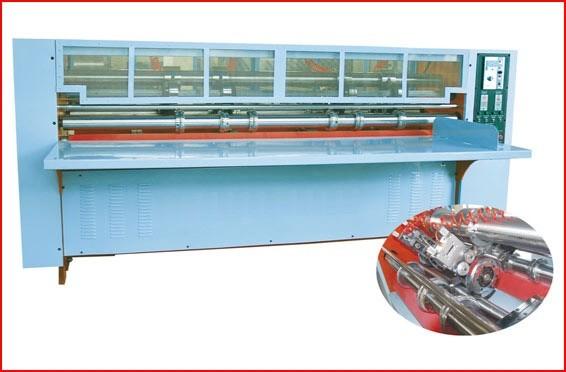

NC Computer-control Thin Blade Slitter Scorer
1) improved with pre-scoring, 0mm slitting width optional;
2) machine axial electric move 200mm, effective with the paper offset;
3) adopt thin knife high-speed slitting, precision ball screw and linear guide transmission;
4) thin tungsten steel alloy blade, sharp edge, long service life more than 8million meter;
5) upper slitter wheel, upper scoring wheel pneumatic control lift up & down, not to cut off the cardboard while changing orders;
6) computer monitor automatically track the production line speed, to ensure the synchronization;
7) electric sharpening system can achieve the production process, non-stop sharpen blades, sharpening device according to the material or trimming conditions to set at any time, the time interval meter and the time of sharpening;
8) independent stepper motor control each knife stand and wheel stand, could be ranked in the case of non-stop machine, synchronization changing orders, complete and accurate specifications changes in 3-8 seconds;
9) computer storage without limit orders, production output any group of orders, according to the actual needs;
10) imported synchronous belt driver, accurate precision, long life, low noise operation.

Max Effective Width

1100~2200mm

Slitting Knife

4~6 pairs

Min Slitting Distance

180mm

Scoring Wheel

6~10 pairs

Min Scoring Distance

0mm

Design Speed

150~250m/min
