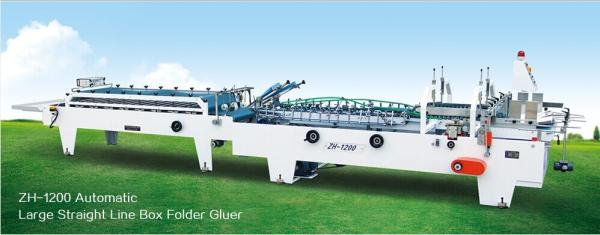

Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
Specifications
Brand Name :
Yush
Model Number :
ZH-FX
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
FOB: 60000~120000USD
Payment Terms :
T/T
Supply Ability :
15 sets per month
Delivery Time :
15~30 working days
Packaging Details :
Plastic Film and Wooden Box
Description

Automatic 4/6-corner Box Folder Gluer Machine

Functional Specifications:

  1. ZH-FS Series folder gluer machine with 4/6 corner function, each set is controlled by independent motor, adopts electrical regulating board, PLC and imported electronic components!
  2. Feeding section adopts independent electrical control, operation on rail with stable performance and easy to control and operate.
  3. The machine is especially designed for all kinds of 4/6 corner cardboard or corrugated packaging boxes, which can meet to all kinds of requirements of automatic packaging area.
  4. The machine consists of 9 sections: feeding, aligning, 4/6-corner folding, pre-folding & back-folding, bottom-lock & back-folding, folding, pre-pressing, patting, and pressing conveyor.

Technical Parameters:

Paper Material Paperboard 200-800g, A/C/B/E/F-flute Corrugated Cardboard
Feeding Method Automatically and continuously feeding
Folding Method 1st, 2nd and 4th folding 180°, 3rd folding 135°
Glue Material Water-base cold glue
Max Liner Speed 220 m/min

4-corner box type and size
Model 1050 1250 1450 1650 1850 Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
A 290~1000mm 290~1200mm 290~1400mm 290~1600mm 290~1800mm
B 130~800mm
C Min: 30mm
D Min: 130mm
6-scorer box type and size
Model 1050 1250 1450 1650 1850 Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
A 290~1000mm 290~1200mm 290~1400mm 290~1600mm 290~1800mm
B 130~800mm
C Min: 30mm
D Min: 130mm
Bottom-lock box type and size
Model 1050 1250 1450 1650 1850 Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
B 250~850mm 250~1050mm 250~1250mm 250~1450mm 250~1650mm
A 200~600mm
C Min: 15mm
D Min: 80mm
F Min: 130mm
Common side-glue box type and size
Model 1050 1250 1450 1650 1850 Automatic 4/6-corner Carton Box Folder Gluer Machine, 4/6 corner box, crash lock bottom box, normal side glue box
B 280~1000mm 280~1200mm 280~1400mm 280~1600mm 280~1800mm
A 150~700mm
C Min: 15mm
D Min: 80mm
F Min: 130mm
