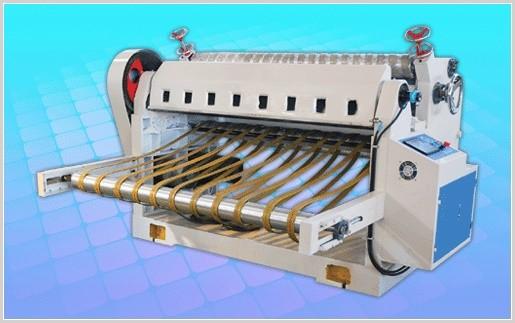

NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking
NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking
NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking
NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking
NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking
NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking
NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking
NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking
NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking
NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking
NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking
NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking
Specifications
Brand Name :
Yush
Model Number :
DWQJ-NC
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
FOB: 12000~15000USD
Payment Terms :
T/T
Supply Ability :
15 sets per month
Delivery Time :
15~30 working days
Packaging Details :
Plastic Film or Wooden Box
Automatic grade :
Automatic
Voltage :
220v/380v/440v
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Driven type :
Electric
Warranty :
One Year
Name :
single facer 2 layer corrugated paperboard production line
Color :
Customizable
Machine type :
Corrugated paperboard making machine
Usage :
Paper corrugation
Description
DWDM-NC NC Computer-control Rotary Slitter-Cutter Satcker

1) DWQJ-NC NC Computer-control Rotary Slitter-Cutter PLC touch screen control system.

2) Man-machine conversation, one-key to change orders.

3) Adopt frequency conversion motor, servo driver control.

4) Whole machine with excellent property.

5) Equipped with automatic stacking unit to improve efficiency and save labor.

Max Effective Width

1100~2200mm

Slitting

4-slitter

Cutting Length

300~9999mm

Cutting Precision

±1.5mm
Max Stacking Length 1500mm
Max Stacking Length 300mm

Design Speed

80m/min

DW-80 Single Facer Corrugation Line

1) This product line consists of three single machines, Electrical Shaftless Mill Roll Stand, SF-280 Fingerless type Single Facer, NC Rotary Cutter, Steam Boiler & Pipeline(customer-owned parts), etc.
2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Flute Laminator Machine or Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for small or medium carton factories.

Max Effective Width 1100~2200mm
Max Paper Roll Diameter 1400mm
Max Paper Roll Weight 2000kg
Corrugating Roller Φ280mm, 48CrMo alloy steel, hardness HRC58°-60°
Cutting Length 300~9999mm
Cutting Precision ±1.5mm
Design Speed 80m/min
Heating Method Steam Heating
Economic Working Speed 60~80m/min

NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking

NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking

NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking

NC Computer-control Rotary Slitter Cutter Stacker, Corrugated Cardboard Slitting + Cutting + Stacking
