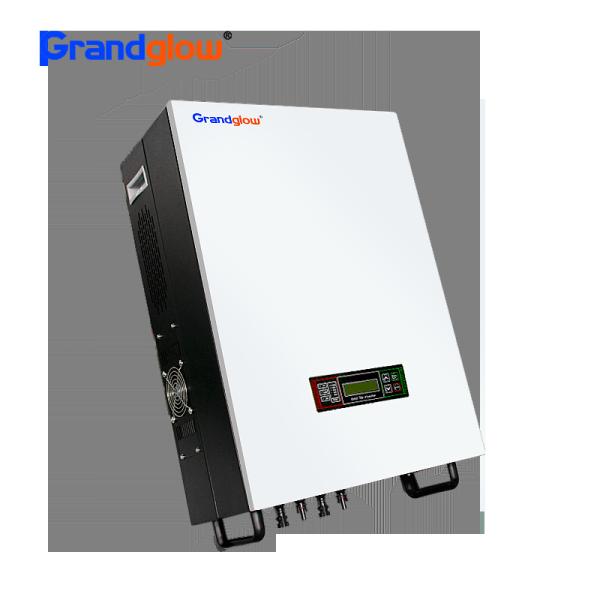

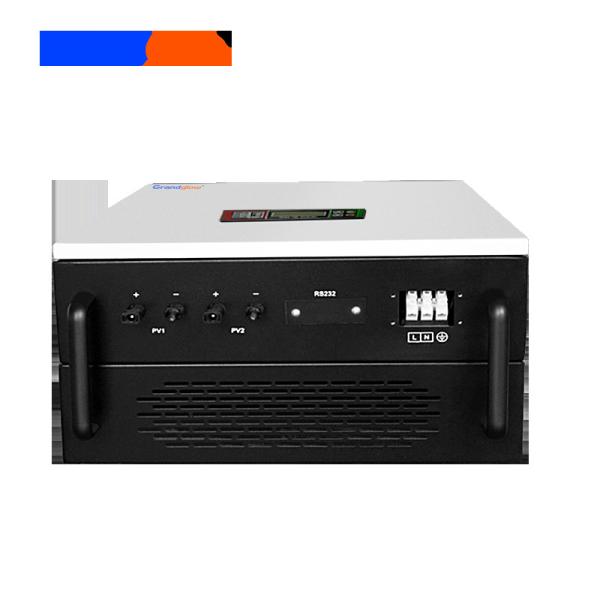

GOOD PRICE 8000 WATTS 500V DC TO AC 220V 230V SINGLE PHASE MPPT ONGRID INVERTER FOR HOME POWER SYSTEM
GOOD PRICE 8000 WATTS 500V DC TO AC 220V 230V SINGLE PHASE MPPT ONGRID INVERTER FOR HOME POWER SYSTEM
GOOD PRICE 8000 WATTS 500V DC TO AC 220V 230V SINGLE PHASE MPPT ONGRID INVERTER FOR HOME POWER SYSTEM
GOOD PRICE 8000 WATTS 500V DC TO AC 220V 230V SINGLE PHASE MPPT ONGRID INVERTER FOR HOME POWER SYSTEM
GOOD PRICE 8000 WATTS 500V DC TO AC 220V 230V SINGLE PHASE MPPT ONGRID INVERTER FOR HOME POWER SYSTEM
GOOD PRICE 8000 WATTS 500V DC TO AC 220V 230V SINGLE PHASE MPPT ONGRID INVERTER FOR HOME POWER SYSTEM
GOOD PRICE 8000 WATTS 500V DC TO AC 220V 230V SINGLE PHASE MPPT ONGRID INVERTER FOR HOME POWER SYSTEM
GOOD PRICE 8000 WATTS 500V DC TO AC 220V 230V SINGLE PHASE MPPT ONGRID INVERTER FOR HOME POWER SYSTEM
Specifications
Network :
SDK
Customized support :
Software reengineering
Place of Origin :
Hubei, China
Brand Name :
Grandglow
Model Number :
TL8000
Type :
DC/AC Inverters
Output Type :
Single
Output Current :
36A
Output Frequency :
50HZ
Size :
530x680x240mm
Weight :
37kgs
Certificate :
3c, CE/G83/IEC/TUV/SAA
Application :
Solar Power System Home
MTTP Efficiency :
99.5
Power factor :
1
Cooling Method :
intelligent air cooling
Protecition degree :
IP20
Display :
LCD
Date interface :
RS232/RS485/WIFI/GPRS
Packaging Details :
In Carton.
Port :
Shanghai
Supply Ability :
1000 Piece/Pieces per Month
Price :
$464.00 - $557.00/pieces
Description
Product Description

GOOD PRICE 8000 WATTS 500V DC TO AC 220V 230V SINGLE PHASE MPPT ONGRID INVERTER FOR HOME POWER SYSTEM

Feature:

1. Max efficiency to 98.5%

2. Wide input voltage range, high efficient MPPT.

3. Multiple inverters can be operated in parallel.

4. Without insulated transformer, strong IP65 protection.

5. Small and light, easy to installation.

6. LCD display.

GOOD PRICE 8000 WATTS 500V DC TO AC 220V 230V SINGLE PHASE MPPT ONGRID INVERTER FOR HOME POWER SYSTEM

Maximum DC Input Power

8700W

Maximum DC Input Voltage

500VDC

Maximum DC Input Current

43A

MPPT Tracking Number/
Each Input String Number

1/2

MPPT Tracking Voltage Range

180-450VDC

Power Off/On Voltage

100/200VDC

AC Output

Rated Power

8000W

Voltage Range

Single Phase AC 230V(190-270V)
Adjustable according to different countries and regions requirement.

Rated Voltage Range

230VAC

Frequency

50Hz / 60Hz

Phase number

Single Phase

Power Factor

1

Max Output Current

36A

Current THD

At Rated Power And In The Sine Wave<3.5%

Max Efficiency

98%

Europe Efficiency

97%

MPPT Efficiency

99.5%

Structure

Protection Degree

IP20

Cooling Method

Intelligent Air Cooling

Noise

<50dB

Data Interfaces

RS 485/ RS 232/ (Standard), WiFi Modular(Optional)

Isolation type

Non-isolated

Standby Power Consumption

0W

LCD Display

LCD

DC Switch

Integration

Protection

Support

DC Input Switch, Anti-island, Output Over-current, Input Reverse Connection,
DC/AC Surge Protection, Insulation Resistance Testing, RCD Testing, Upgrade WIFI

RCD Testing

Support

Protection (Inverter)

Input Overvoltage, Output Short Circuit, Overload, Overheat

Protection (Grid)

Anti-islanding(IEEE1547), over/under voltage of grid, over/under frequency of grid.

General Parameters

Input Terminal

MC4

Output Terminal

Connect Terminals

Topology

No Transformer

Warranty

5 Years Warranty, Can Be Extended to 10 years

State Grid Function

Yes

AC Switch

Integration

Operation temperature Range

Air Flow, -10 ℃ ~40 ℃ ( 50 ℃ )

Storage temperature

-25 ℃ ~ 60 ℃

Relative humidity

0~100%

Environment

No Corrosion Gas, Flammable Gas, Gas Fumes and Dust Etc

Altitude

6600 Feet 2000m, Max. 3000m

Size

530x680x240mm

Weight

37kgs
