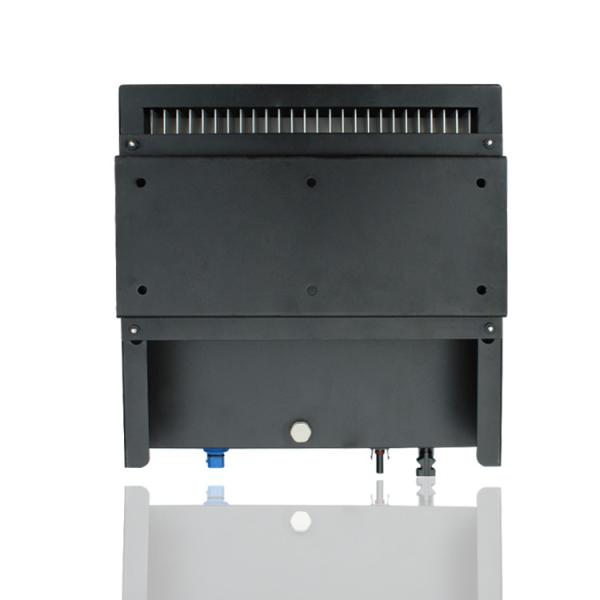

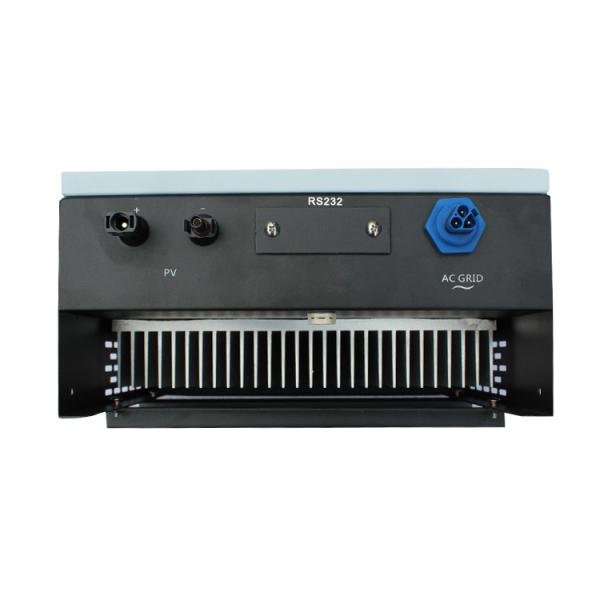

HIGH QUALITY GRANDGLOW 1500 WATTS 110V 230VAC ON GRID TIE INVERTER FOR HOME SOLAR POWER SYSTEM
HIGH QUALITY GRANDGLOW 1500 WATTS 110V 230VAC ON GRID TIE INVERTER FOR HOME SOLAR POWER SYSTEM
HIGH QUALITY GRANDGLOW 1500 WATTS 110V 230VAC ON GRID TIE INVERTER FOR HOME SOLAR POWER SYSTEM
HIGH QUALITY GRANDGLOW 1500 WATTS 110V 230VAC ON GRID TIE INVERTER FOR HOME SOLAR POWER SYSTEM
HIGH QUALITY GRANDGLOW 1500 WATTS 110V 230VAC ON GRID TIE INVERTER FOR HOME SOLAR POWER SYSTEM
HIGH QUALITY GRANDGLOW 1500 WATTS 110V 230VAC ON GRID TIE INVERTER FOR HOME SOLAR POWER SYSTEM
HIGH QUALITY GRANDGLOW 1500 WATTS 110V 230VAC ON GRID TIE INVERTER FOR HOME SOLAR POWER SYSTEM
HIGH QUALITY GRANDGLOW 1500 WATTS 110V 230VAC ON GRID TIE INVERTER FOR HOME SOLAR POWER SYSTEM
HIGH QUALITY GRANDGLOW 1500 WATTS 110V 230VAC ON GRID TIE INVERTER FOR HOME SOLAR POWER SYSTEM
HIGH QUALITY GRANDGLOW 1500 WATTS 110V 230VAC ON GRID TIE INVERTER FOR HOME SOLAR POWER SYSTEM
HIGH QUALITY GRANDGLOW 1500 WATTS 110V 230VAC ON GRID TIE INVERTER FOR HOME SOLAR POWER SYSTEM
HIGH QUALITY GRANDGLOW 1500 WATTS 110V 230VAC ON GRID TIE INVERTER FOR HOME SOLAR POWER SYSTEM
Specifications
Network :
ON GRID
Customized support :
YES
Place of Origin :
Hubei, China
Brand Name :
Grandglow
Model Number :
TL1500
Type :
DC/AC Inverters
Output Type :
Single
Output Current :
6.8A
Output Frequency :
50HZ
Size :
295x300x150mm
Weight :
9kgs
Application :
Solar Power System Home
MTTP Efficiency :
99.5
Power factor :
1
Cooling Method :
Nature
Protecition degree :
IP65
Display :
LCD
Date interface :
RS232/RS485/WIFI/GPRS
Certificate :
CE/G83/IEC/TUV/SAA
Packaging Details :
In Carton.
Port :
Shanghai
Supply Ability :
1000 Piece/Pieces per Month
Price :
$165.00 - $198.00/pieces
Description
Product Description

HIGH QUALITY GRANDGLOW 1500 WATTS 110V 230VAC ON GRID TIE INVERTER FOR HOME SOLAR POWER SYSTEM

Feature:

1. Max efficiency to 98.5%

2. Wide input voltage range, high efficient MPPT.

3. Multiple inverters can be operated in parallel.

4. Without insulated transformer, strong IP65 protection.

5. Small and light, easy to installation.

6. LCD display.

HIGH QUALITY GRANDGLOW 1500 WATTS 110V 230VAC ON GRID TIE INVERTER FOR HOME SOLAR POWER SYSTEM

Maximum DC Input Power

1500W

Maximum DC Input Voltage

450VDC

Maximum DC Input Current

10A

MPPT Tracking Number/
Each Input String Number

1

MPPT Tracking Voltage Range

180-450VDC

Power Off/On Voltage

100/200VDC

AC Output

Rated Power

1500W

Voltage Range

Single Phase AC 230V(190-270V)
Adjustable according to different countries and regions requirement.

Rated Voltage Range

230VAC

Frequency

50Hz / 60Hz

Phase number

Single Phase

Power Factor

1

Max Output Current

6.8A

Current THD

At Rated Power And In The Sine Wave<3.5%

Max Efficiency

97.5%

Europe Efficiency

96.5%

MPPT Efficiency

99.5%

Structure

Protection Degree

IP65

Cooling Method

Nature Cooling

Noise

<50dB

Data Interfaces

RS 485/ RS 232/ (Standard), WiFi Modular(Optional)

Isolation type

Non-isolated

Standby Power Consumption

0W

LCD Display

LCD

DC Switch

Integration

Protection

Support

DC Input Switch, Anti-island, Output Over-current, Input Reverse Connection,
DC/AC Surge Protection, Insulation Resistance Testing, RCD Testing, Upgrade WIFI

RCD Testing

Support

Protection (Inverter)

Input Overvoltage, Output Short Circuit, Overload, Overheat

Protection (Grid)

Anti-islanding(IEEE1547), over/under voltage of grid, over/under frequency of grid.

General Parameters

Input Terminal

MC4

Output Terminal

Connect Terminals

Topology

No Transformer

Warranty

5 Years Warranty, Can Be Extended to 10 years

State Grid Function

Yes

AC Switch

Integration

Operation temperature Range

Air Flow, -10 ℃ ~40 ℃ ( 50 ℃ )

Storage temperature

-25 ℃ ~ 60 ℃

Relative humidity

0~100%

Environment

No Corrosion Gas, Flammable Gas, Gas Fumes and Dust Etc

Altitude

6600 Feet 2000m, Max. 3000m

Size

295x300x150mm

Weight

9.0kgs
