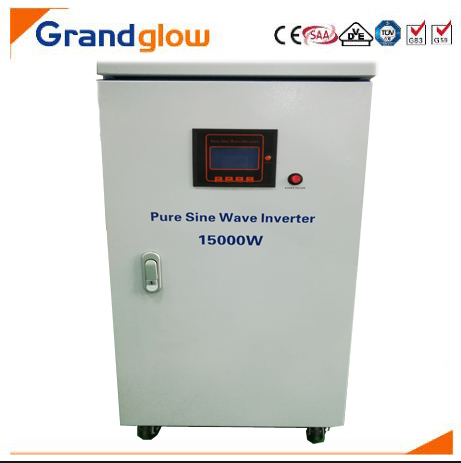

DC TO AC 220V PURE SINE WAVE SINGLE PHASE 15KW OFF GRID SOLAR INVERTER
DC TO AC 220V PURE SINE WAVE SINGLE PHASE 15KW OFF GRID SOLAR INVERTER
DC TO AC 220V PURE SINE WAVE SINGLE PHASE 15KW OFF GRID SOLAR INVERTER
DC TO AC 220V PURE SINE WAVE SINGLE PHASE 15KW OFF GRID SOLAR INVERTER
DC TO AC 220V PURE SINE WAVE SINGLE PHASE 15KW OFF GRID SOLAR INVERTER
DC TO AC 220V PURE SINE WAVE SINGLE PHASE 15KW OFF GRID SOLAR INVERTER
DC TO AC 220V PURE SINE WAVE SINGLE PHASE 15KW OFF GRID SOLAR INVERTER
DC TO AC 220V PURE SINE WAVE SINGLE PHASE 15KW OFF GRID SOLAR INVERTER
DC TO AC 220V PURE SINE WAVE SINGLE PHASE 15KW OFF GRID SOLAR INVERTER
DC TO AC 220V PURE SINE WAVE SINGLE PHASE 15KW OFF GRID SOLAR INVERTER
DC TO AC 220V PURE SINE WAVE SINGLE PHASE 15KW OFF GRID SOLAR INVERTER
DC TO AC 220V PURE SINE WAVE SINGLE PHASE 15KW OFF GRID SOLAR INVERTER
Specifications
Place of Origin :
Hubei, China
Brand Name :
Grandglow
Model Number :
Grandglow15000
Input Voltage :
192VDC
Output Voltage :
220VAC
Output Current :
68A
Output Frequency :
50Hz
Output Type :
Single
Size :
400X600X840MM
Type :
DC/AC Inverters
Inverter Efficiency :
98%
Certificate :
3c
Warranty :
1year, 2 years
Weight :
122KG
Application :
Solar Power System Home
Display :
LCD+LED Display
Efficiency :
≥85%
Waveform :
Pure Sine Wave
Packaging Details :
In Wooden Case
Port :
SHANGHAI
Supply Ability :
1000 Piece/Pieces per Month
Price :
$822.00/pieces 1-49 pieces
Description

15KW DC TO AC 220V PURE SINE WAVE SINGLE PHASE OFF GRID SOLAR INVERTER

Product Description

Dual CPU single chip intelligent control technoloty, microcomputer control,humanized design.

Output high quality Pure Sine Wave AC power, with strong Load capacity.

With perfect protection fuction, greatly improve product reliability.

Adopt CPU centralized control, and SMT technology.

Stable operation, low distortion, no noise, no pollution. Strong resistance to load impact, long life.

LCD/LED Panel Manu display operation status.

Three-stage charging function with battery type selection ( optional).

Stroage Battery overvoltage, shortvoltage protection. Can resume working automatically.

Utility electricity automatic conversion . ( optional )

High conversion efficiency, high instance power, low load loss.

Can realize the connection of generator and external battery.

DC TO AC 220V PURE SINE WAVE SINGLE PHASE 15KW OFF GRID SOLAR INVERTER

Input

Minimum/ Maximum DC Input Power

192 / 492 VDC

Max Discharge Current

102A

Input Utility Electricity Voltage AC

220V

Intergrated AC Charger Current ( optional)

3A

AC Output

Rated Power

15000W

Output Current

68A

Rated Voltage

220VAC ±5%

Frequency

50Hz / 60Hz

Phase number

Single Phase

Output Wave Form

Pure Sine Wave

Current THD

< 3%

Switching Time

20ms ~ 1s

General Parameters

Invert efficiency

≥ 85%

Standby Power Consumption

< 20W

Noise

≤ 55dB

Peak Overload Capacity

when >120%, 10s protection; when >150, 5ms protection

Display

LCD/ LED

Operation temperature Range

Air Flow, -10 ℃ ~ 60 ℃

Relative humidity

≤90% RH , no condensation

Environment

No Corrosion Gas, Flammable Gas, Gas Fumes and Dust Etc.

Altitude

< 1000m

Size

400x600x840mm

Weight

122kgs

Protection

Support

Over-voltage, short-voltage, over-heat, overload, over short-circuit, auto-resume when voltage in normal. Utility electricity over/short voltage protection.
