10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
Specifications
Place of Origin :
Hubei, China
Brand Name :
Grandglow
Model Number :
TLC10000
Input Voltage :
200-820VDC
Output Voltage :
360-440VAC
Output Current :
15A
Output Frequency :
50Hz/60Hz
Output Type :
Three Phase
Size :
440*610*260mm
Type :
DC/AC Inverters
Inverter Efficiency :
97.5%
Certificate :
CE,SAA
Warranty :
5 years
Weight :
42kg
Product Name :
10KW On Grid Solar Inverter
MPPT tracking voltage number :
1
Max DC Input Power :
10500W
Max. DC Input Current :
30A
MPPT Tracking Voltage Range :
200-820VDC
Power off/on voltage :
200V/300VDC
Rated power :
10000W
Outpur Volgtage Range :
360-440VAC
Frequency :
50Hz/60Hz
power factor :
0.99
Packaging Details :
3 Phase On Grid Photovoltaic Inverter 3KW 5KW 5KW 10KW Inverters are usually packed in cartons and pallets.
Port :
Shanghai
Supply Ability :
1000 Piece/Pieces per Month
Price :
$725.00/pieces 1-9 pieces
Description

10000 Watte Three Phase On Grid Photovoltaic Solar Inverter
10kW Inverter For Grid Tie Solar Power System
Product Description

Overview
3-phase 4 line grid tie solar inverter with cheap price, 10000 watt power capacity, works at 50Hz/60Hz low frequency, 2
independent MPPT trackers guarantee optimal energy production for every use, DC 200-820 volt wide input voltage range, the maximum converssion efficiency of 98%.
10kW on grid tie inverter on sales, pure sine wave output, wide input voltage range, maximum DC input voltage to 850V, rated output voltage can be customized with three phase 240V/ 380V/ 480V AC. High efficiency MPPT transformerless solar inverter designed for grid tied PV system.
Features
* Can be applied to various fields, mainly for solar power, wind power, battery power, and scenery lamp power.
* Strong IP65 protection, completed sealed cover suitable for harsh environment.
* Advanced MPPT tracking technology, wide MPPT voltage range.
* No isolation transformer H6 full-bridge configuration, highest efficiency reach 98%.
* Over voltage, short circuit, overload, overheating, anti-islanding protection etc.
* Multiple inverters can be operated in parallel.
* LCD display, convenient for user to monitor main parameters.
* Support various communication modes.
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System

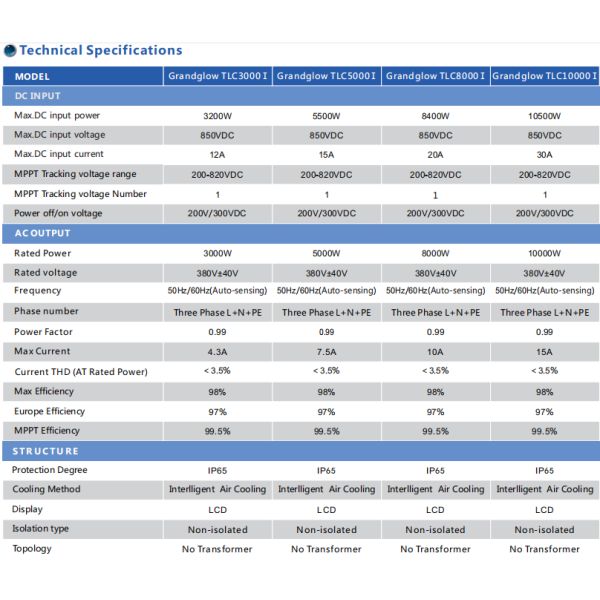

Specification
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
Company Profile
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
10000W Three Phase On Grid Photovoltaic solar Inverter 10KW Inverter For Grid Tie Solar Power System
Grandglow is the booming high-Tech company that has been always focusing on researching and developing, manufacturing, selling, also serving customer with the grid tie inverter, off grid inverter, solar pump inverter, wind generator inverter and all other renewable energy products. Besides, we provide project consulting, network design and system solutions for worldwide customers. Until now, our products can be comparable with the most excellent products domestic and abroad, in some extent , perform the most advanced technology in the world.
Grandglow is located in Huangjinshan national high-tech development zone, Huangshi city, Hubei Province. It covers an area of over 66000 square meters .Also R&D and testing center area of 7000 square meters which is a R&D centre composed of a post-doctoral returnee with PHD. Grandglow have been continuing emphasis on brand building , establishing the highest quality, best service, best cost-effective brand philosophy, responding quickly to customer needs and understanding customer value pursuit. With the "Green changes life,Technology leads the future" development idea and adhering to "Innovation ,Excellence and Superior", tomorrow, Grandglow will be your most reliable partner for green energy power systems.
FAQ
1. Who are we?
We are a professional solar inverter manufacturer since 2002.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
solar Inverter,PV Combiner Box,Solar Charge Controller,Wind Turbine Inverter,UPS

4. Why should you buy from us not from other suppliers?
One of the oldest inverter manufacturers in China since 2002, products covers from grid tie inverter, off grid inverter, pump inverter, micro inverter, high frequency inverter, combiner box, battery charge controller, power system design and installation.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,French,Korean
