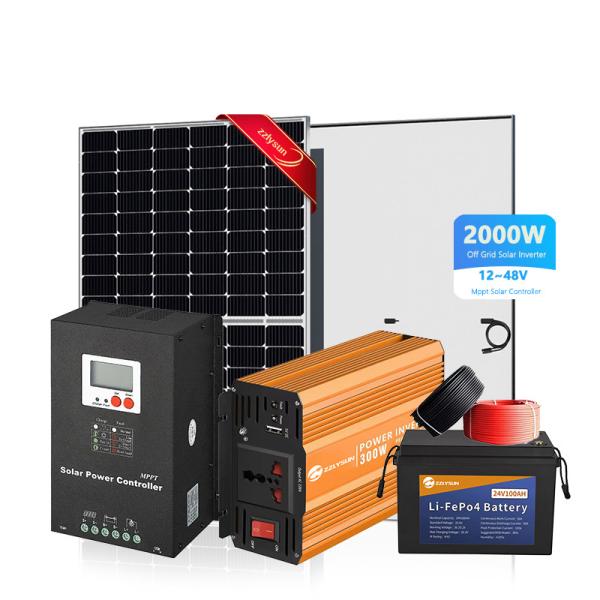

Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Specifications
Place of Origin :
Henan, China
Brand Name :
zzlysun
Model Number :
2000W off grid
Packaging Details :
Plywood Case
Supply Ability :
10 Carton/Cartons per Day
MOQ :
1000 watts
Price :
$0.60/watts 1000-4999 watts
Warranty :
5years
Free installation service :
NO
Application :
Home
Solar Panel Type :
Monocrystalline Silicon
Battery Type :
Lead-Acid, Lithium Ion
Controller Type :
MPPT
Mounting Type :
Roof Mounting
Load Power (W) :
3KW, 5KW, 1KW, 2KW, 4KW
Output Voltage (V) :
230V
Output Frequency :
50Hz/60Hz
Work Time (h) :
12
Certificate :
CE/ROHS/FC
Pre-sales project design :
Y
Product Name :
2kw off grid solar system
Port :
Shanghai/Ningbo/Qingdao/Guangzhou
Description

Best selling cheap price list solar panel energy system solar inverter with battery for home off grid full set

Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery

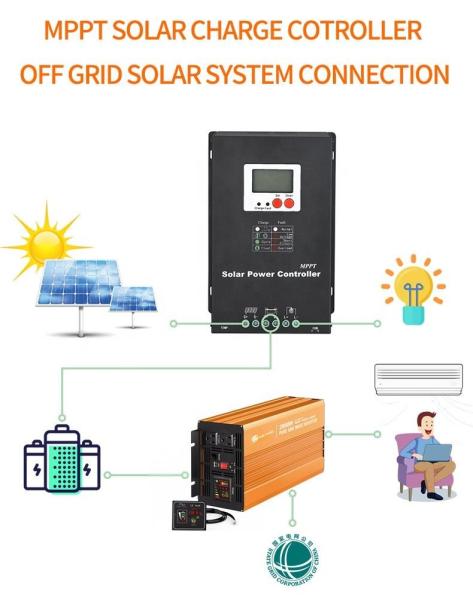

❖ General mode:
The off grid power solar system is that the electric generate from the PV array will provide the load first,the excess electric will charge the battery,when the PV electric is not sufficient ,the battery will provide the load.
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Product Name
1KW Off Grid Solar
1.5KW Off Grid Solar
2KW Off Grid Solar
3KW Off Grid Solar
4KW Off Grid Solar
PV Module
2pcs*450W
3pcs*450W
4pcs*450W
7pcs*450W
9pcs*450W
Inverter
off grid inverter 1kw
off grid inverter 1.5kw
off grid inverter 2kw
off grid inverter 3kw
off grid inverter 24kw
MPPT solar controller
24V 40A/36V 30A
24V 60A/36V 40A
24V 80A/48V 40A
48V 60A
48v 80A
Battery
24V 100Ah(2.4kwh)
24V 100Ah(2.4kwh)
48V 100Ah(4.8kwh)
36V 200Ah(7.2kwh)
48V 200ah(9.6kwh)
Mounting System
Ground /Roof Mounting
Accessories
MC4 Connector,PV Cable
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
❖ Solar Panel
1.Power:540~560W
2.The quantity of Cell:144PCS
3.Solar cells size:182*91mm
4.Dimensions:2279x1134x35mm(LxWx H)
5.Open Circuit Voltage-Voc[V]:49.90V
6.Short Circuit Current-lsc[A]:14.00A
7.Max Power Voltage-Vmp[V]:41.96V
8.Max Power Current-lmp[A]:13.11A
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
❖ Off Grid Inverter
1. Rate Power: 1kW/1.5KW/2KW/3KW/4KW
2.Surge Power:2KW/3KW/4KW/6KW/8KW
3.Input Voltage:12VDC/24VDC/48VDC
4.Battery Type:Lithium/Lead-acid
5.AC Voltage Regulation:110/220VAC ± 5% @ 50 or 60Hz
6. USB Port: 5V 2A
7.Efficiency :94% Max
8.Waveform:Pure sine wave
9. Cooling Way:Intelligent?Cooling?Fan
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
❖ Off Grid Inverter
* Controller Type:Controller with maximum power point tracking(MPPT)
* Input System:12V/24V/36V/48V
*Charge Current:20A/30A/40A/50A/60A/80A
*MPPT Effiency:≥99.5%
* No-load static loss:0.5W~1.2W
*Max PV input:DC150V
* Battery type:Sealed lead acid battery,lifepo4 lithium battery
* Charging Method:Three stages constant current(fast charge),constant voltage,floating charging
* Protect Function:Input and output over-voltage protection,anti-reverse protection,battery off protection,etc.
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
❖ AGM Lead Aid Battery
1. Voltage:12V
2.Capacity:200AH
3.Application:Solar energy system
4.Number of cell:6pcs
5.Cycle life:600~1200 times
6. Weight:53.5kg
7. Size:522*238*218/240mm
8.Working time:3-5 years old.
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery

❖ Accessories
1.PV DC Cable
4mm2 or 6mm2

2.Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery

❖ Accessories
1.PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar/Breaker 63A1000V)

2.MC4 Connector
Rated current: 30A Rated voltage: 1000VDC
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
❖ Mounting Bracket
1.Good Appearance
2.Easy and flexible installation.
3.Diversified design
4.Light dead-weight
5.Save installation materials
❖ Work Room Show Case
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
❖ Package&Delivery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
Roof Mounting Off Grid Solar Energy System MPPT Controller With Battery
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ

1.What kind of product can you provide ?

Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?

Re:We can provide the home use solar system from 1kw to 8kw Off grid Solar system.

3.Are you acceptable the OEM/ODM Order?

Re:Yes,we can accept the OEM/OEM Order if you want to make the color ,apperance.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

4.What is your warranty and after-sales policy?

Re:Warranty term: China parts warranty is one years,the oversea import part is two years old.

5.How many days will the product delivery?

Re:All the package will shipped within 10~20 working days after your payment.
