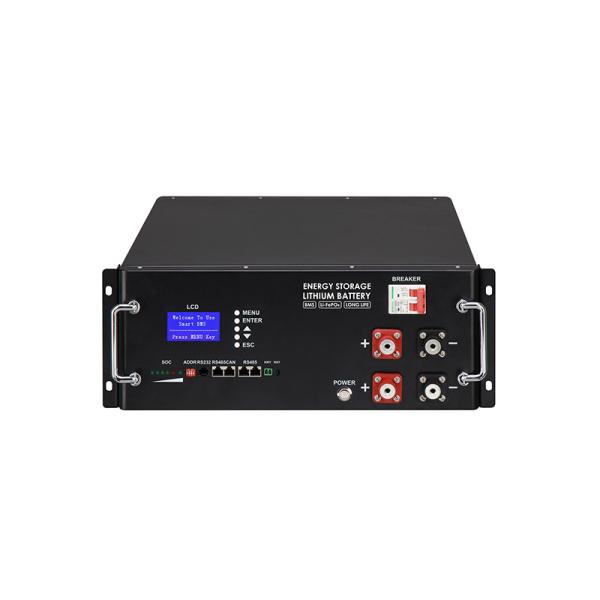

High quality prismatic cells rechargeable 96 volt 100ah energy storage solar system lithium ion cell battery
| Model | LYH96 | LYH144 | LYH192 | LYH240 | LYH384 | LYH512 | LYH768 | ||||||
| Rated Energy | 9.6kwh | 14.4kwh | 19.2kwh | 24kwh | 38.4kwh | 51.2kwh | 76.8kwh | ||||||
| Standard Discharge current | 50A~300A(Customer customize) | | | | | | | ||||||
| Max.discharge current | 50A~500A(Customer customize) | | | | | | | ||||||
| Working Voltage Range(VDC) | 81~108 | 121.5~162 | 162~216 | 202.5~270 | 324~432 | 432~576 | 648~864 | ||||||
| Standard Voltage | 96VDC | 144VDC | 192VDC | 240VDC | 384VDC | 512VDC | 768VDC | ||||||
| Max .Charge Current | 100A~500A(Customer customize) | | | | | | | ||||||
| Max.charge Voltage | 81~864V | | | | | | | ||||||
| Cycle | 3000~6000 Cycles @DOD 80%/25℃/0.5C | | | | | | | ||||||
| Working humidity | 65±20%RH | | | | | | | ||||||
| Operating temperature | -10~+50℃ | | | | | | | ||||||
| Cooling method | Natural cooling | | | | | | | ||||||
| Installation | Cabinet/Rack Mount/Stack installation | | | | | | | ||||||
| Protection level | IP20 | | | | | | | ||||||
| Max of parallel | 15PCS | | | | | | | ||||||
| Warranty | 5~10Years | | | | | | | ||||||
| Communication | Default:RS485/RS232/CAN Optional:WiFi/4G/Bluetooth | | | | | | | ||||||
| Working altitude | ≤2500m | | | | | | | ||||||
| Certificate | CE/ROHS/FCC/UN38.3 /MSDS | | | | | | | ||||||
| Note | Voltage,capacity,size/color customization,OEM/ODM Service can be provided according to customer needs. | | | | | | | ||||||
