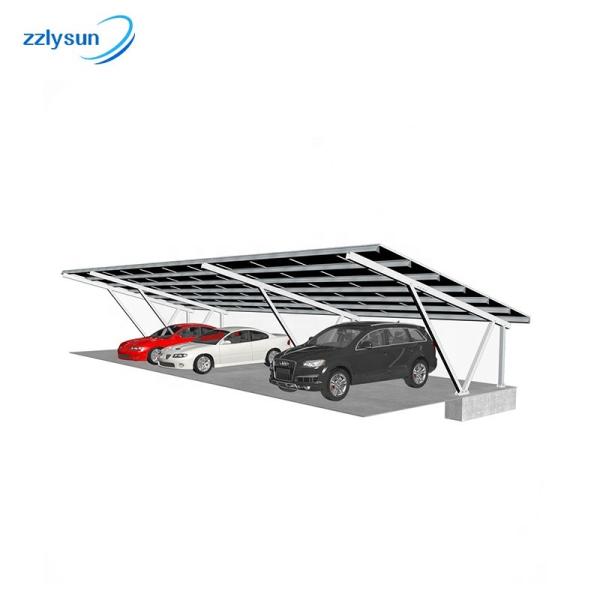

Bus Station On Grid Solar System 100KW 120KW Solar Power Station for Car Port
❖ General mode:
When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid;

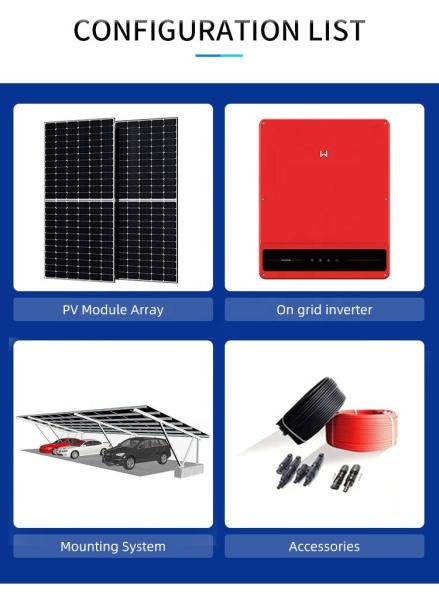

| Product List | 100kw on grid solar system | 120kw on grid solar system |
| PV module | | 550W Solar Panel*217pcs |
| PV Combiner Box | | 12 input 12 output |

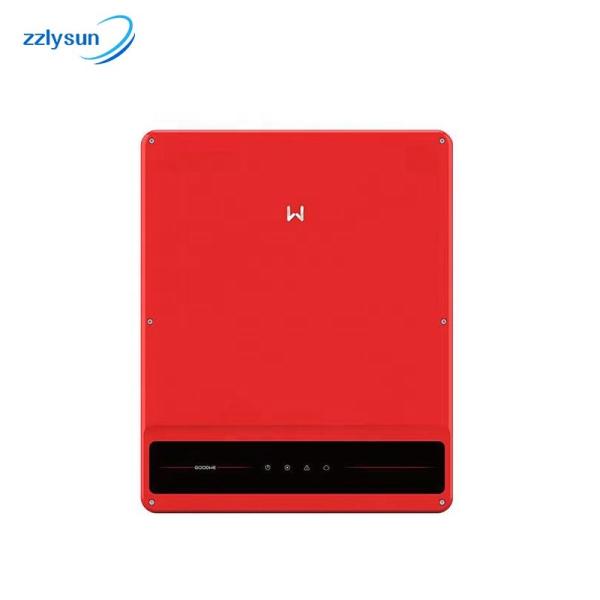

| Hybrid Solar Inverter | Goodwe on grid inverter 50kw*2PCS | Goodwe on grid inverter 60kw*2PCS |
| Battery | | |
| PV Cable | | |
| MC4 Connector | | |
| Mounting System | Roof/Ground Mounting(Design for your requirement) | |
| Installation tools | | |
* Power:540~560W
* The quantity of Cell:144PCS
* Solar cells size:182*91mm
* Dimensions:2279x1134x35mm(LxWx H)
* Front Glass:3.2mm high transmisson tempered glass
* Container type:40HQ
* No. of modules per container:620PCS
* No. of modules per pallet:31PCS
* No. of pallets per container:20
* Packaging box size (LxWxH)[mm]:2300x1145x1260MM
* Rate Power: 100/120KW
* MPP voltage range:200V-950V
* AC Voltage Regulation:3 phase 400V * AC grid frequency:50Hz/60Hz
* MPPT Efficiency :98.7%
* AC grid connection type:3W+N+PE
* Nominal voltage:600V
* No. of MPP trackers:5pcs/6pcs
* Max. input current per MPP tracker:37.5A * MC4 Connector
Rated current: 30A Rated voltage: 1000VDC
* PV DC Cable
4mm2 or 6mm2
* PV Combiner Box (Antireverse/SPD/Fuse/Busbar/Breaker 63A1000V)
* Installation tolls (Wire Crimper, Stripper, MC4 Connector Wrench)
* PV DC Cable
4mm2 or 6mm2
* MC4 Connector
Rated current: 30A Rated voltage: 1000VDC
* PV Combiner Box
(Antireverse/SPD/Fuse/Busbar/Breaker 63A1000V)
* Installation tolls
(Wire Crimper, Stripper, MC4 Connector Wrench)
* Good Appearance
* Easy and flexible installation. * Diversified design
* Light dead-weight
* Save installation materials
❖ Advantage
The hybrid soar system are suitable for the country,which are the payment bill is expensive .The charging and discharging time of the battery is set.When the local grid price is in the peak stage ,the battery is discharged to the load,when the local grid price is in the trough stage,the battery will be charged by the power grid.
❖ Plywood Package
The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
❖ Company
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
❖ Quality gurantee
The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC. 2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us know freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
