3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
Specifications
Place of Origin :
Henan, China
Brand Name :
zzlysun
Model Number :
20KW/25KW hybrid solar
Packaging Details :
Plywood Case
Supply Ability :
10 Carton/Cartons per Day
MOQ :
20000 watts
Price :
$0.61/watts 20000-39999 watts
Warranty :
5years
Free installation service :
NO
Application :
Home
Solar Panel Type :
Monocrystalline Silicon
Battery Type :
Lead-Acid, Lithium Ion, Lead-acid or Li-lon
Controller Type :
MPPT, MPPT
Mounting Type :
Ground Mounting
Load Power (W) :
30KW, 8KW, 6KW, 20KW, 5KW, 10KW, 25kw
Output Voltage (V) :
230V/400V
Output Frequency :
50Hz/60Hz
Work Time (h) :
12
Certificate :
TUV/ISO/IEC/BIS
Pre-sales project design :
Y
Rated power :
20kw/24kw
Solar panel :
Mono Crystalline
Battery Voltage Range (V) :
40~60V
Charging Strategy for Li-Ion Battery :
Self-adaption to BMS
Max PV Power :
26kw/31.2kw
MPPT Range (V) :
200V-650V
No.of MPPT Trackers :
2
PV Input Current (A) :
26A+13A
Port :
Shanghai/Ningbo/Qingdao/Guangzhou
Description

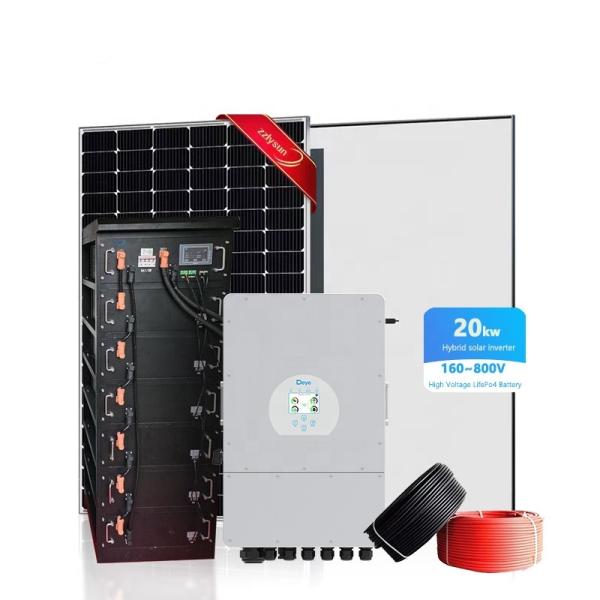

3 Phase Solar systems 20kw 25kw solar system home power with 48VDC LifePo4 Lithium battery

3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
❖ General mode:
When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid;
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
Product List
20kw hybrid solar system
25kw hybrid solar system
PV module
455W solar*44PCS
455W solar*55PCS
PV combiner box
4 Input 4 output
5 Input 5 output
Inverter
Deye 8kw *2PCS parallel
Deye 10kw*2pcs parallel
Monitor
Wifi Module
Wifi Module
Battery
Lithium Battery or Lead Aid Battery
Lithium Battery or Lead Aid Battery
Mounting System
Roof mounting/Ground mounting (Design by your requirement)
Accessories
MC4 Connector,PV cable,Installations
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery

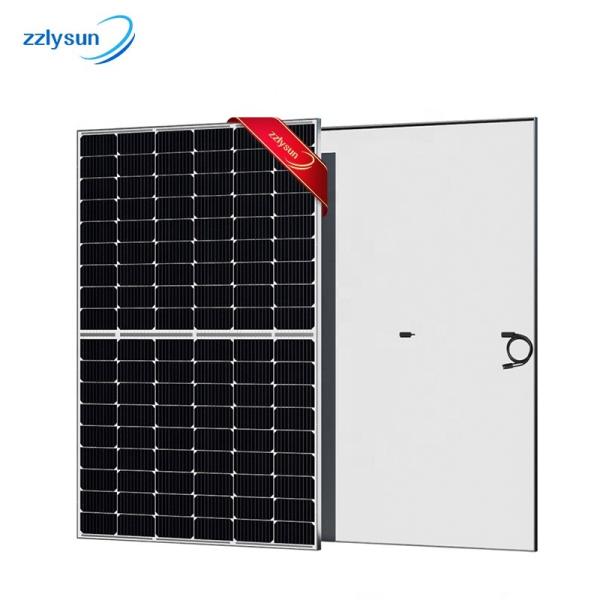

❖ Solar Panel
1.Power:445~470W
2.The quantity of Cell:144PCS
3.Solar cells size:166*83mm
4.Dimensions:2094x1038x35mm(LxWx H)
5.Open Circuit Voltage-Voc[V]:49.56V
6.Short Circuit Current-lsc[A]:11.32A
7.Max Power Voltage-Vmp[V]:41.21V
8.Max Power Current-lmp[A]:10.08A
9.Module Efficiency:20.47%
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
❖ Hybrid Solar Inverter
1. Rate Power: 20KW/25KW
2.Battery Voltage:40~60V
3.Battery Type:Lithium Battery/Lead Aid
4. MPP voltage range:200~600V
5. AC Voltage Regulation:230V/400V
6. AC grid frequency:50Hz/60Hz
7. Max PV Power:26KW/31.2KW
8. Max. Efficiency :99%
9. AC grid connection type:3W+N+PE
10. Peak Power (off grid):<10S
11.No. of MPP trackers:2pcs
12.Max. input current per MPP tracker:
126A+13A
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
❖ Lithium Battery
1. Nominal Voltage:51.2V
2. Capacity:200Ah
3. Energy:10240Wh
4. Cycle Life:
≥5000 cycles @ 80% DOD, 25℃, 0.5C
≥4000 cycles @ 80% DOD, 40℃, 0.5C
5. Design Life:≥10 years
6. Charge Cut-off Voltage:56.0V±0.5V
7. Dimensions:680 x485 x180(220)mm
8. Weight:Approx:98kg
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery

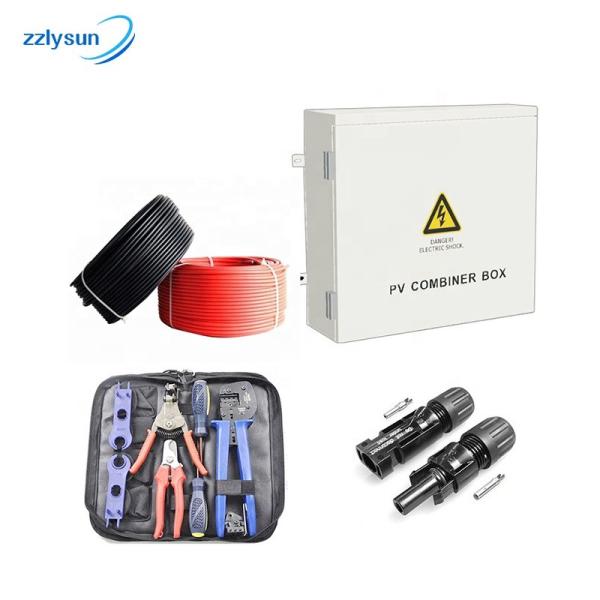

❖ Accessories
1. PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar/Breaker 63A1000V)
2. Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery

❖ Accessories
1. PV DC Cable
4mm2 or 6mm2
2. MC4 Connector
Rated current: 30A Rated voltage: 1000VDC
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
❖ Mounting Bracket
1. Good Appearance
2.Easy and flexible installation.
3.Diversified design
4.Light dead-weight
5.Save installation materials
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
❖ Advantage
The hybrid soar system are suitable for the country,which are the payment bill is expensive .The charging and discharging time of the battery is set.When the local grid price is in the peak stage ,the battery is discharged to the load,when the local grid price is in the trough stage,the battery will be charged by the power grid.
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
❖ Company
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
❖ Quality gurantee
The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
❖ Plywood Package
The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
3 Phase Home Solar Power System 20KW 25KW With 48VDC LifePo4 Lithium Battery
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your deposit of payment.
