Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Specifications
Place of Origin :
Henan, China
Brand Name :
zzlysun
Model Number :
5kw hybrid system
Packaging Details :
Plywood Case
Supply Ability :
10 Carton/Cartons per Day
MOQ :
5000 watts
Price :
$0.50/watts 5000-24999 watts
Warranty :
5years
Free installation service :
NO
Application :
Home
Solar Panel Type :
Monocrystalline Silicon
Battery Type :
Lead-Acid, Lead-acid
Controller Type :
MPPT
Mounting Type :
Roof Mounting
Load Power (W) :
3KW, 8KW, 5KW, 2KW, 4KW
Output Voltage (V) :
230V
Output Frequency :
50Hz/60Hz
Work Time (h) :
12
Certificate :
CE/IEC
Pre-sales project design :
Y
MPP voltage range :
150~430VDC
WIFI remote monitoring :
Optional
Rated power :
5KW
Battery Voltage :
48VDC
Efficiency (Peak) :
93%
Waveform :
Pure sine wave
Transfer Time :
10ms(UPS /VDE4105 ) 20ms( APL)
Maximum PV Array Open Circuit Voltage :
450VDC
Number of MPP Strings :
1/1
Port :
Shanghai/Ningbo/Qingdao/Guangzhou
Description

Home solar generator complete set equipment lead aid battery kit 5kw portable power hybrid solar energy system

Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
❖ General mode:
The hybrid solar system, it can realize self-consumption and feed-in to the grid from solar energy with best solution according to your setting. During the daytime solar power can run your home appliances and if there is extra solar power it will feed-in to the grid or you can choose to save them on the battery to backup when power failure or nighttime.
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW

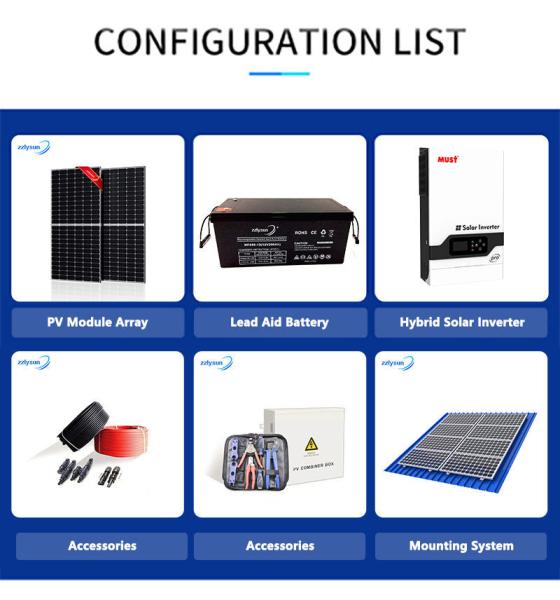

Product List
3KW 24V Hybrid Solar
5KW 48V Hybrid Solar
PV module
7pcs*455W
12pcs*455W
PV combiner box
1 Input 1 output
2 Input 1 output
Inverter
Hybrid inverter 3KW
Hybrid inverter 5kw
Monitor
Wifi Module
Wifi Module
Battery
Lithium Battery /Lead Aid gel battery
Battery Voltage
24V
48V
Mounting System
Roof mounting/Ground mounting (Design by your requirement)
Accessories
MC4 Connector,PV cable,Installations
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
❖ Solar Panel
1.Power:445-470W
2.The quantity of Cell:144PCS
3.Solar cells size:166*83mm
4.Dimensions:2094x1038x35mm(LxWx H)
5.Open Circuit Voltage-Voc[V]:49.85V
6.Short Circuit Current-lsc[A]:11.41A
7.Max Power Voltage-Vmp[V]:41.82V
8.Max Power Current-lmp[A]:10.99A
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
❖ Hybrid Grid Inverter
1. Rate Power: 3KW/5KW
2.Battery Voltage:24VDC/48VDC
3.Battery Type:Lithium/Lead-acid
4. Maximum PV Array Open Circuit Voltage:450VDC
5.AC Voltage Regulation:230VAC ± 5% @ 50/60Hz
6. Maximum PV Array Open Circuit Voltage:150~430 VDC
7.Efficiency (Peak):93%
8.Waveform:Pure sine wave
9. Transfer Time:10ms(UPS /VDE4105 ) 20ms( APL)
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
❖ AGM Lead Aid Battery
1. Voltage:12V
2.Capacity:200AH
3.Application:Solar energy system
4.Number of cell:6pcs
5.Cycle life:600~1200 times
6. Weight:53.5kg
7. Size:522*238*218/240mm
8.Working time:3-5 years old.
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW

❖ Accessories
1.PV DC Cable
4mm2 or 6mm2

2.Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW

❖ Accessories
1.PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar/Breaker 63A1000V)

2.MC4 Connector
Rated current: 30A Rated voltage: 1000VDC
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
❖ Mounting Bracket
1.Good Appearance
2.Easy and flexible installation.
3.Diversified design
4.Light dead-weight
5.Save installation materials
❖ PROJECT CASE
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
❖ Company
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
❖ Quality gurantee
The solar panel power system should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
❖ Plywood Package
The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
Hybrid Solar Panel Power System Portable Power Lead Aid Battery Kit 5KW
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ

1.What kind of product can you provide ?

Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?

Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?

Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?

Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem, will let us freely.

5.How many days will the product delivery?

Re:All the package will shipped within 10~20 working days after your payment.
