Hybrid solar inverter 8kw 10kw with lithium battery for home use
Hybrid solar inverter 8kw 10kw with lithium battery for home use
Hybrid solar inverter 8kw 10kw with lithium battery for home use
Hybrid solar inverter 8kw 10kw with lithium battery for home use
Hybrid solar inverter 8kw 10kw with lithium battery for home use
Hybrid solar inverter 8kw 10kw with lithium battery for home use
Hybrid solar inverter 8kw 10kw with lithium battery for home use
Hybrid solar inverter 8kw 10kw with lithium battery for home use
Hybrid solar inverter 8kw 10kw with lithium battery for home use
Hybrid solar inverter 8kw 10kw with lithium battery for home use
Hybrid solar inverter 8kw 10kw with lithium battery for home use
Hybrid solar inverter 8kw 10kw with lithium battery for home use
Specifications
Warranty :
5years
Free installation service :
Yes
Place of Origin :
Henan, China
Brand Name :
zzlysun
Model Number :
8KW/10KW
Application :
Home
Solar Panel Type :
Monocrystalline Silicon
Battery Type :
Lithium Ion, Li-Ion
Controller Type :
MPPT
Load Power (W) :
8KW, 6KW, 5KW, 10KW
Output Voltage (V) :
400 / 380, 3L / N / PE
Output Frequency :
50/60hz
Work Time (h) :
12hs
Certificate :
TUV
Pre-sales project design :
Y
Battery Voltage Range (V) :
180~600V
Max. Charging Current (A) :
25A
Charging Strategy for Li-Ion Battery :
Self-adaption to BMS
Max. DC Input Power (W) :
9.6KW/13KW
MPPT Range (V) :
200~850V
Max. Input Current (A) :
12.5A
Number of MPPTs :
2
Max. DC Input Voltage (V) :
1000V
Number of Strings per MPPT :
1
Packaging Details :
Plywood Case
Port :
Shanghai/Ningbo/Qingdao/Guangzhou
Supply Ability :
1000 Pallet/Pallets per Day
MOQ :
8000 watts
Price :
$0.60/watts 8000-15999 watts
Description
Hybrid solar inverter 8kw 10kw with lithium battery for home use

❖ General mode

When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid。
Hybrid solar inverter 8kw 10kw with lithium battery for home use
Hybrid solar inverter 8kw 10kw with lithium battery for home use

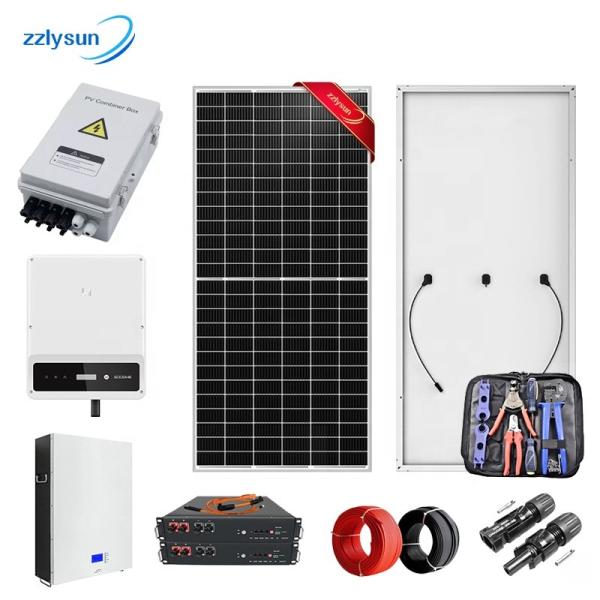

Product List
8kw hybrid solar system
10kw hybrid solar system
PV module
455W Solar Panel*11pcs
455W Solar Panel*13pcs
PV Combiner Box
2 input 2 output
2 input 2 output
Hybrid Solar Inverter
Goodwe hybrid inverter 8KW
Goodwe hybrid inverter 10KW
Powerwall Lithium Battery
20.48KWH
20.48KWH
PV Cable
4mm2*200m
4mm2*200m
MC4 Connector
10pcs
10pcs
Mounting System
Roof mounting/Ground mounting
Roof mounting/Ground mounting
Installation tools
1pc
1pc
Hybrid solar inverter 8kw 10kw with lithium battery for home use

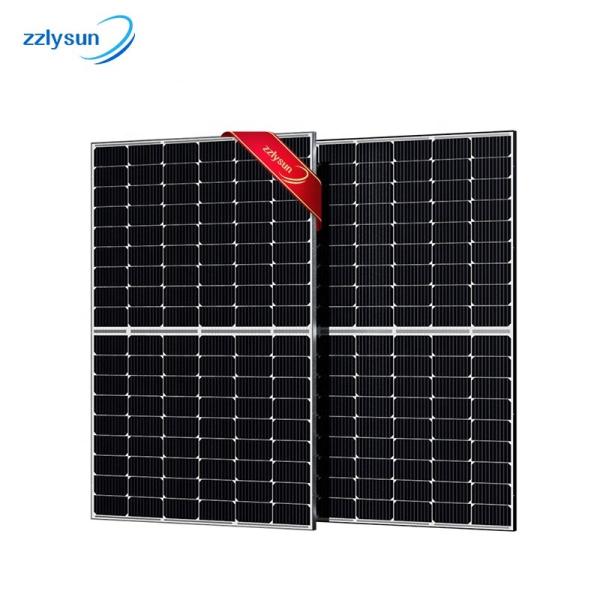

❖ Solar Panel

* Power:455W~470W* The quantity of Cell:144PCS
* Solar cells size:166*83mm
* Dimensions:2094x1038x35mm((LxWx H)
* Front Glass:3.2mm high transmisson tempered glass
* Container type:40HQ
* No. of modules per container:726PCS
* No. of modules per pallet:31PCS
* No. of pallets per container:20
* Packaging box size(LxWxH):2120x1145x1160MM
Hybrid solar inverter 8kw 10kw with lithium battery for home use

❖ Hybrid Grid Solar Inverter


* Rate Power: 8KW/10KW
* MPP voltage range:200V-850V
* AC Voltage Regulation:380V/400v
* AC grid frequency:50Hz/60Hz
* Max PV Power:9.6KW/13KW
* MPPT Efficiency :98.2%
* AC grid connection type:3W+N+PE
* Nominal voltage:620V
* No. of MPP trackers:2pcs
* Max. input current per MPP tracker:12.5A
Hybrid solar inverter 8kw 10kw with lithium battery for home use


❖ Lithium Battery


* Nominal Voltage:204.8V
* Capacity:100Ah
* Energy:20.48KWh
* Cycle Life:
≥5000 cycles @ 80% DOD, 25℃, 0.5C
≥4000 cycles @ 80% DOD, 40℃, 0.5C
* Design Life:≥10 years
* Charge Cut-off Voltage:228V±0.5V
* Dimensions:930*415*590 mm
* Weight:Approx 260kg
Hybrid solar inverter 8kw 10kw with lithium battery for home use


❖ Accessories

* PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar/Breaker 63A1000V)

* MC4 Connector
Rated current: 30A Rated voltage: 1000VDC
Hybrid solar inverter 8kw 10kw with lithium battery for home use


❖ Accessories

* Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench

* PV DC Cable
4mm2 or 6mm2

Hybrid solar inverter 8kw 10kw with lithium battery for home use


❖ Mounting Bracket






1. Good Appearance
2.Easy and flexible installation. 3.Diversified design
4.Light dead-weight
5.Save installation materials
Hybrid solar inverter 8kw 10kw with lithium battery for home use

❖ Advantage

The hybrid soar system are suitable for the country,which are the payment bill is expensive .The charging and discharging time of the battery is set.When the local grid price is in the peak stage ,the battery is discharged to the load,when the local grid price is in the trough stage,the battery will be charged by the power grid.
Hybrid solar inverter 8kw 10kw with lithium battery for home use

❖ Company

The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
Hybrid solar inverter 8kw 10kw with lithium battery for home use

❖ Quality gurantee

The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
Hybrid solar inverter 8kw 10kw with lithium battery for home use

❖ Certificate

1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the
different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
