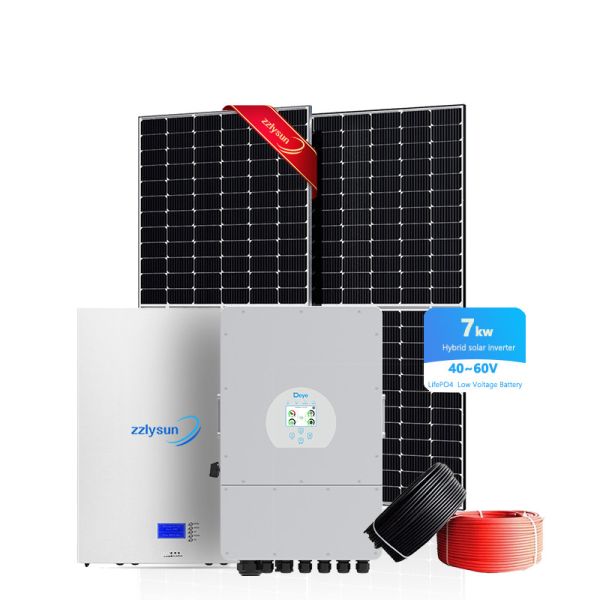

High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
Specifications
Warranty :
5years
Free installation service :
NO
Place of Origin :
Henan, China
Brand Name :
zzlysun
Model Number :
7kw hybrid solar system
Application :
Home
Solar Panel Type :
Monocrystalline Silicon
Battery Type :
Lithium Ion, Lead-acid or Li-lon
Controller Type :
MPPT
Mounting Type :
Ground Mounting
Load Power (W) :
8KW, 6KW, 20KW, 5KW, 10KW, 12KW, 7KW
Output Voltage (V) :
230V/400V
Output Frequency :
50Hz/60Hz
Work Time (h) :
12
Certificate :
TUV
Pre-sales project design :
Y
Max. DC voltage :
1000V
MPP voltage range :
150V~800V
No. of MPP trackers :
2
Max. input current per MPP tracker :
13A
AC Output Rated Current :
15A
Rated power :
7kw
Battery Voltage Range (V) :
40~60V
PV module :
455w* 16pcs
Charging Strategy for Li-Ion Battery :
Self-adaption to BMS
Packaging Details :
Plywood Case
Port :
Shanghai/Ningbo/Qingdao/Guangzhou
Supply Ability :
10 Carton/Cartons per Day
Price :
$0.25/cartons >=1 cartons
Description
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
❖ General mode：
When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid。
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
Product List
8kw hybrid solar system
10kw hybrid solar system
12kw hybrid solar system
PV module
450w*18pcs
450w*22pcs
450w*26pcs
PV combiner box
2 Input 2 output
2 Input 2 output
2 Input 2 output
Inverter
Deye hybrid inverter 8kw
Deye hybrid inverter 10kw
Deye hybrid inverter 12kw
Monitor
Wifi Module
Wifi Module
Wifi Module
Battery
Lithium Battery 48V 200ah
Lithium Battery 48V 200ah
Lithium Battery 48V 200ah
Mounting System
Roof mounting/Ground mounting (Design by your requirement)
Accessories
MC4 Connector,PV cable,Installations
Product List
5kw hybrid solar system
6kw hybrid solar system
7kw hybrid solar system
PV module
455w*11pcs
455w*13pcs
455w*16pcs
PV combiner box
1 Input 1 output
1 Input 1 output
1 Input 1 output
Inverter
Deye hybrid inverter 5kw
Deye hybrid inverter 6kw
Deye hybrid inverter 7kw
Monitor
Wifi Module
Wifi Module
Wifi Module
Battery
Lithium Battery 48V 100ah
Lithium Battery 48V 100ah
Lithium Battery 48V 100ah
Mounting System
Roof mounting/Ground mounting (Design by your requirement)
Accessories
MC4 Connector,PV cable,Installations
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system

❖ Solar Panel



1.Power:445~470W
2.The quantity of Cell:144PCS
3.Solar cells size:166*83mm
4.Dimensions:2094x1038x35mm(LxWx H)
5.Open Circuit Voltage-Voc[V]:49.56V
6.Short Circuit Current-lsc[A]:11.32A
7.Max Power Voltage-Vmp[V]:41.21V
8.Max Power Current-lmp[A]:10.08A
9.Module Efficiency：20.47%
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system

❖ Hybrid Grid Solar Inverter


1. Rate Power: 5kw/6KW/7KW/8KW/9KW
2. MPP voltage range:160V-800V
3. AC Voltage Regulation:220V/380V,
4. AC grid frequency:50Hz/60Hz
5. Max PV Power:
6.5KW/7.8KW/10.4KW/13KW/15.6KW
6. Battery Type:Lead-acid or Lithium-ion
7. AC grid connection type:3W+N+PE
8. Battery Voltage Range (V):40~60V
9. No. of MPP trackers:2pcs
10. Max. input current per MPP tracker:13A
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
❖ Wall Mounted LiFePo4 Battery

* 15-20 years design life. Up to 6000 + cycle Ilfe
* Wall mount or ground stack brick, simply connecting to inverter
* Battery module is scalable for any larger storage system.
* Battery modular built in high quality BMS. Protect battery cells all the way.
*Lithium iron phosphate battery cell, stay safe with battery storage at home.
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system

❖ Accessories

1. PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar
/Breaker 63A1000V)

2. MC4 Connector
Rated current: 30A Rated voltage: 1000VDC

3. PV DC Cable
4mm2 or 6mm2

4. Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system



❖ Mounting Bracket





1. Good Appearance
2.Easy and flexible installation.
3.Diversified design
4.Light dead-weight
5.Save installation materials
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
❖ Peak valley arbitrage model
The hybrid soar system are suitable for the country,which are the payment bill is expensive .The charging and discharging time of the battery is set.When the local grid price is in the peak stage ,the battery is discharged to the load,when the local grid price is in the trough stage,the battery will be charged by the power grid.
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
❖ Solar System
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
❖ Quality gurantee
The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
❖ Plywood Package
The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
High efficiency complete set solar bracket ground mounting pv hybrid energy storage 7kw pv solar system
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ

1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are
including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
