Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
Specifications
Warranty :
5years
Free installation service :
NO
Place of Origin :
Henan, China
Brand Name :
ZZLYSUN
Model Number :
9KW/10KW
Application :
Home
Solar Panel Type :
Monocrystalline Silicon
Battery Type :
Lithium Ion
Controller Type :
MPPT, MPPT
Mounting Type :
Ground Mounting
Load Power (W) :
10KW, 9KW
Output Voltage (V) :
230V/400V
Output Frequency :
50Hz/60Hz
Work Time (h) :
12
Certificate :
TUV/
Pre-sales project design :
Y
Max. DC voltage :
1000V
Start voltage :
160V
MPP voltage range :
160V-1000V/600V
No. of MPP trackers :
2
No. of PV strings per MPP tracker :
1
Max. input current per MPP tracker :
12A
Max.short-circuitcurrentperMPP tracker :
15A
Rated power :
9KW/10KW
Solar panel :
Mono Crystalline
Packaging Details :
Plywood Case
Port :
Shanghai/Ningbo/Qingdao/Guangzhou
Supply Ability :
10 Carton/Cartons per Day
MOQ :
10000 watts
Price :
$0.59/watts 10000-29999 watts
Description
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
❖ General mode：
When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid;
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System

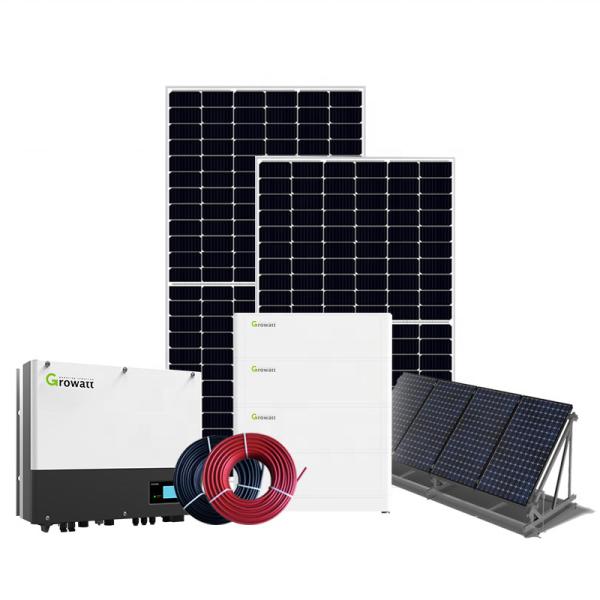

Product List
9KW Hybrid Solar System
10KW Hybrid Solar System
PV module
445W*18PCS
445W*20PCS
PV combiner box
2 Input 2 output
2 Input 2 output
Inverter
Growatt 9KW hybrid inverter
Growatt 10KW hybrid inverter
Monitor
Wifi Module
Wifi Module
Battery
Lithium Battery 102.4V 100ah
Lithium Battery 102.4V 100ah
Mounting System
Roof mounting/Ground mounting (Design by your requirement)
Roof mounting/Ground mounting (Design by your requirement)
Accessories
MC4 Connector,PV cable,Installations
MC4 Connector,PV cable,Installations
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System

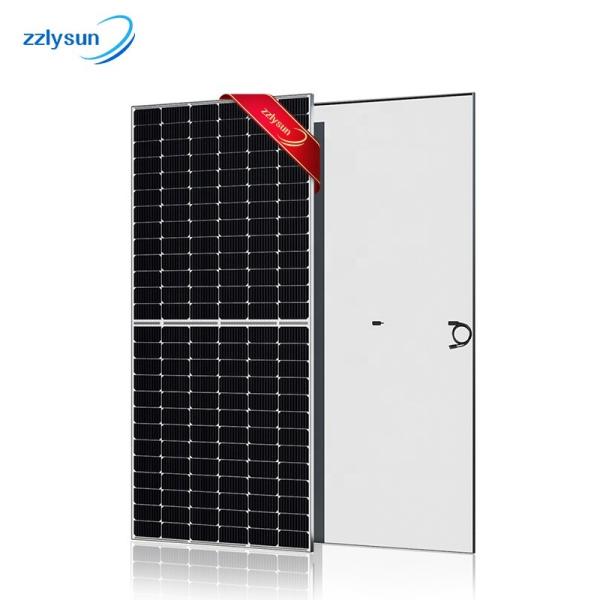

❖ Solar Panel


1.Power:445~470W
2.The quantity of Cell:144PCS
3.Solar cells size:166*83mm
4.Dimensions:2094x1038x35mm(LxWx H)
5.Open Circuit Voltage-Voc[V]:49.56V
6.Short Circuit Current-lsc[A]:11.32A
7.Max Power Voltage-Vmp[V]:41.21V
8.Max Power Current-lmp[A]:10.08A
9.Module Efficiency：20.47%
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System

❖ Hybrid Solar Inverter

1. Rate Power: 8000W/10000W
2.Battery Voltage:100~550V
3.Battery Type：Lithium Battery
4. MPP voltage range:160V-1000V / 600V
5. AC Voltage Regulation:230V/400V
6. AC grid frequency:50Hz/60Hz
7. Max PV Power:10.4KW/13KW
8. Max. Efficiency :97.6%/97.8%
9. AC grid connection type:3W+N+PE
10. Switch time：<0.5S
11.No. of MPP trackers:2pcs
12.Max. input current per MPP tracker:12A
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System

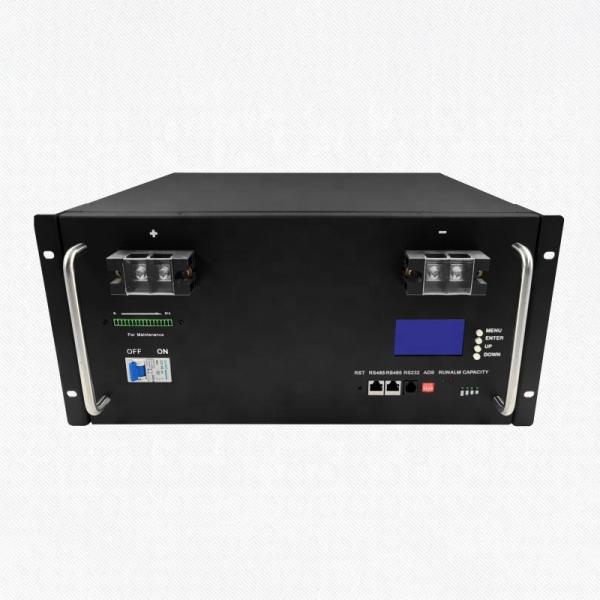

❖ Lithium Battery


1. Nominal Voltage:51.2V
2. Capacity:200Ah
3. Energy:10240Wh
4. Cycle Life:
≥5000 cycles @ 80% DOD, 25℃, 0.5C
≥4000 cycles @ 80% DOD, 40℃, 0.5C
5. Design Life:≥10 years
6. Charge Cut-off Voltage:56.0V±0.5V
7. Dimensions:680 x485 x180(220)mm
8. Weight:Approx:98kg
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System

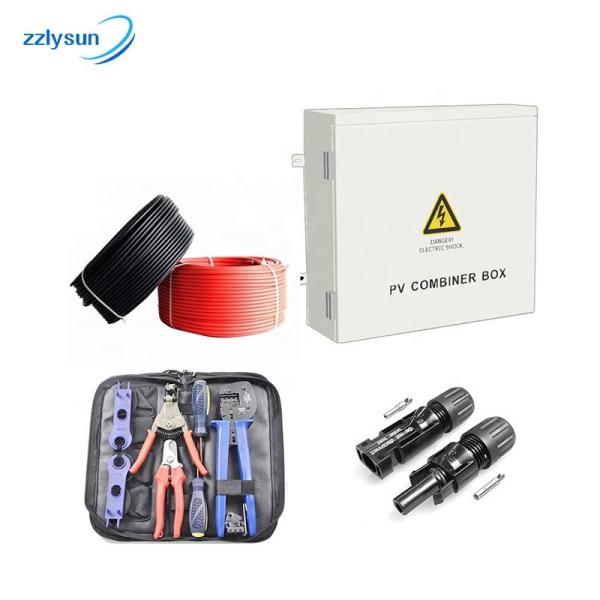

❖ Accessories


1. PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar
/Breaker 63A1000V)

2. MC4 Connector
Rated current: 30A Rated voltage: 1000VDC

3. PV DC Cable
4mm2 or 6mm2

4. Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System

❖ Mounting Bracket



1. Good Appearance
2.Easy and flexible installation.
3.Diversified design
4.Light dead-weight
5.Save installation materials
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
❖ Peak valley arbitrage model
The hybrid soar system are suitable for the country,which are the payment bill is expensive .The charging and discharging time of the battery is set.When the local grid price is in the peak stage ,the battery is discharged to the load,when the local grid price is in the trough stage,the battery will be charged by the power grid.
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
❖ Company
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
❖ Quality gurantee
The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
❖ Plywood Package
The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
Hybrid Solar Inverter 9KW 10KW with Lithium Battery 9KW 10KW Battery Solar System
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your deposit of payment.
