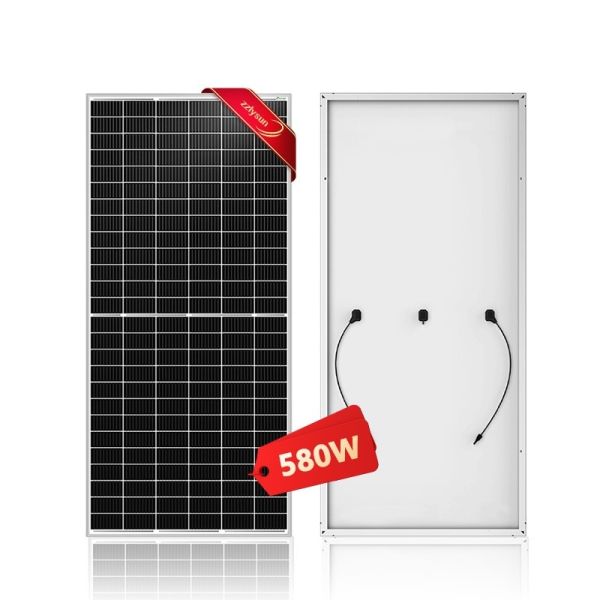

Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Specifications
Brand Name :
zzlysun
Model Number :
HET-565-585N8S72AH
Place of Origin :
China
Packaging Details :
Plywood Case
Supply Ability :
1000 Pallet/Pallets per Day
MOQ :
10000 watts
Price :
$0.23/watts 10000-99999 watts
Cell size :
182mmx91mm, 182mmx91mm
Type :
Half Cell, All Black, N-TYPE, TOPCON
Panel Dimensions :
2279x1134x35mm
Panel Efficiency :
22.6%, 22.6%
Certificate :
TUV/CE/IEC/ISO, TUV/CE/IEC/ISO
Warranty :
30 years
Product name :
N Type Solar Panel
Size :
2279x1134x35mm
Cell :
144/ Monocrystalline Silicon/ 182*91mm
Frame :
Anodized Aluminium Alloy
Junction Box :
25A,IP68,TUV
Glass :
3.2mm High Transmission Tempered Glass
Weight :
29.1kg
Port :
Shanghai/Ningbo/Qingdao/Guangzhou
Description

Manufacturing high efficiency shingled paneles solares costos rooftop solar panels for carport solar system

Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Products Description
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Structural Parameters
Cells
144pcs 182x91mm Monocrystalline solar cells
Module Dimension
2279x1134x35mm(LxWxH)
Module Weight
29.1kg
frame
Anodized aluminum profile
Junction Box
Rated current:25A,IP68,TUV
Cable
Length Negative 400mm/Positive 300mm
Connector
Compatible with MC4
STC
Maximum Power (Pmax)
565W
570W
575W
580W
585W
Maximum Power Voltage (Vmp)
41.92V
42.07V
42.22V
42.37V
42.52V
Maximum Power Current (Imp)
13.48A
13.55A
13.62A
13.69A
13.76A
Open-circuit Voltage (Voc)
50.60V
50.74V
50.88V
51.02V
51.16V
Short-circuit Current (Isc)
14.23A
14.31A
14.39A
14.47A
14.55A
Module Efficiency STC (%)
0.2187
0.2207
0.2226
0.2245
0.2265
STC
Irradiance 1000W/m2,cell temperature 25¡AM1.5G
Operating Conditions
Maxi System Voltage
1000V/1500V DC
Temperature range
-40°C~+85°C
Series Fuse Rating
25A
NOTC
45±2℃
Temperature Coefficient of Isc(α-Isc)
+0.033%/℃
Temperature Coefficient of Voc(β-Voc)
-0.29%/℃
Temperature Coefficient of Pmax(Y-Pmp)
-0.39%/℃
Product Categories
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Company Profile
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
Packing and Shipping
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
FAQ
Half Cell Rooftop Solar Panel N Type 182mm X 91mm For Carport Solar System
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us know freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
