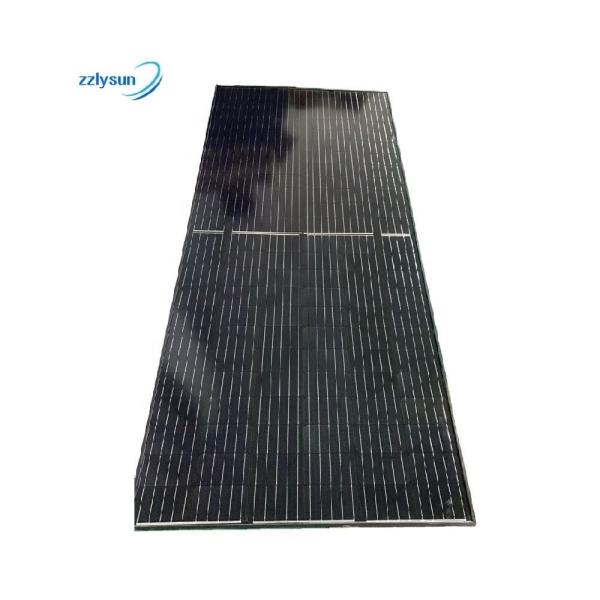

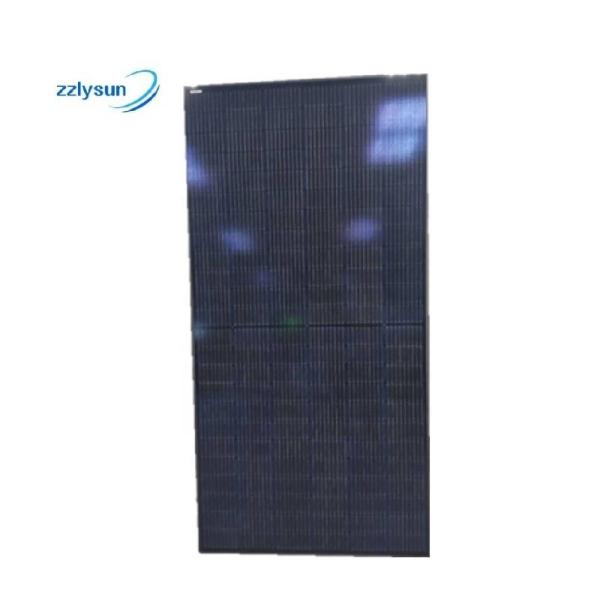

Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Specifications
Brand Name :
zzlysun
Model Number :
LY-390S72AH
Place of Origin :
China
Cell size :
158.75mmx158.75mm
Type :
PERC, Half Cell, Monocrystalline Silicon
Panel Dimensions :
2008*996*35mm
Panel Efficiency :
21.10%
Certificate :
TUV/ISO/CE/ROHS/FCC
Warranty :
25, 25 Years Output Power Guarantee
Cell type :
158.75mm
Front Glass :
High Transparency Temperd Glass
Junction Box :
IP68 Rated
Backsheet :
TPT Material
Frame :
Anodized Alluminium Alloy
Color :
Full black
Power :
390W
Packaging Details :
Plywood Case
Port :
Shanghai/Ningbo/Qingdao/Guangzhou
Supply Ability :
1000 Pallet/Pallets per Day
MOQ :
10000 watts
Price :
$0.24/watts 10000-99999 watts
Description
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
❖ General mode：

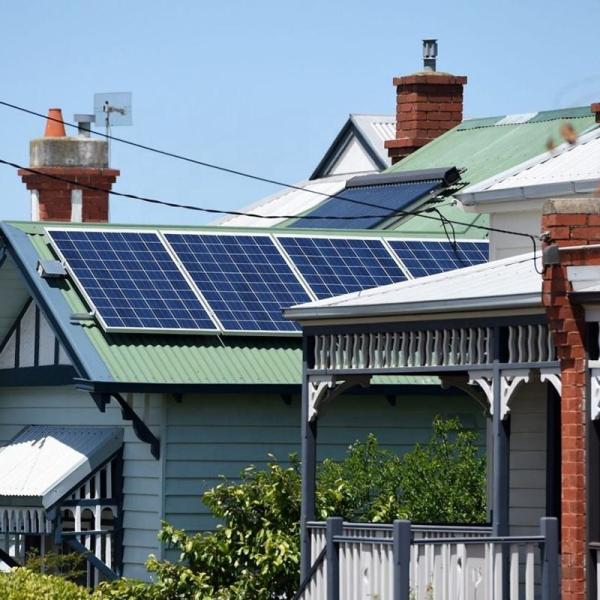

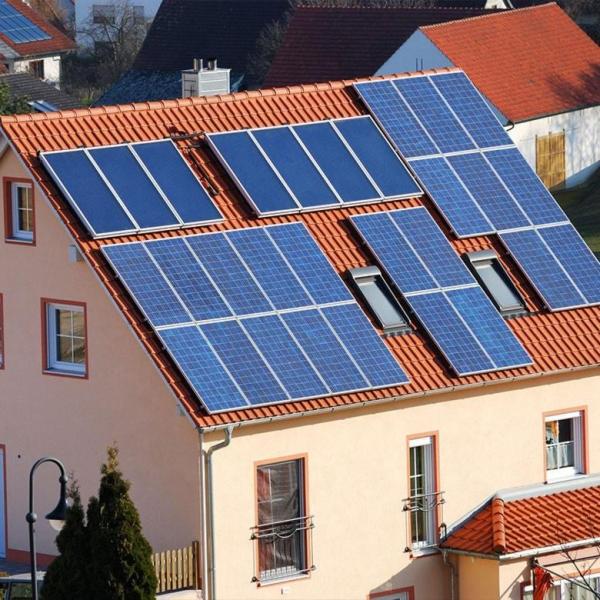

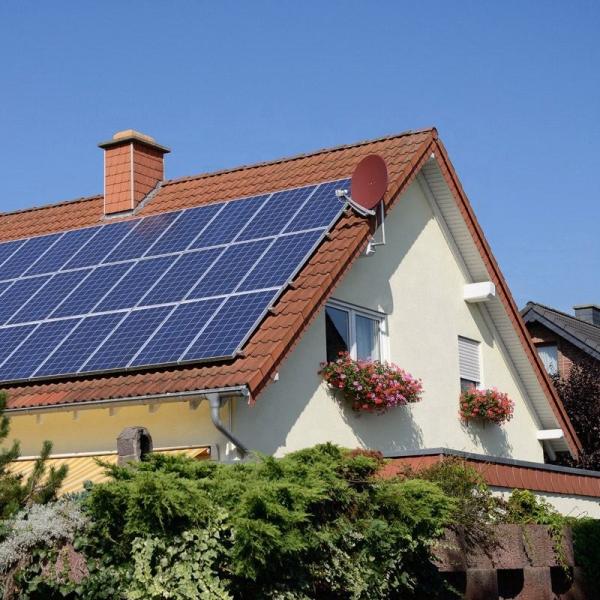

Commercial solar system will be used on the framland,residential community ,bus station,factory ,car parking and large ground power station.
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Type
(XXX=390W~410W)
Peak Power Watts-PMAX (Wp)
390W
395W
400W
405W
410W
Maximum Power Voltage-VMP(V)
40.55
40.85
41.17
41.46
41.78
Maximum Power Current-IMP(A)
9.62
10.21
9.72
9.77
9.82
Open Circuit Voltage-VOC(V)
48.91
49.21
49.5
49.81
50.12
Short Circuit Current-ISC(A)
10.16
10.21
10.32
10.32
10.37
Panel Effiiency
0.195
0.198
0.203
0.203
0.205
Cell Type
158*79mm Monocrystalline solar cell
Size
2008-996-35mm
Weight
22.8KG
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels




Advantage 1 To compare with regular cells size, 156.75mm, 9BB cells with larger cells size 158mm, larger receiving area, higher power output

Advantage 2
Thinner busbars design, larger receiving area, higher power output
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels


Advantage 3
Less spacing between busbars, shorten current path, reduced resistance loss


Advantage 4
Unique split junction box design to minimize the loss caused by occlusion
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels



Advantage 5 Unique circuit design, Combination of series circuit and parallel circuit,Minimize shading effect , reduced internal power loss.



Advantage 6 Same Area Land, Bigger 9bb Modules, More Higher Installed Capacity
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
❖ Advantage
The Commercial solar system will provide the customer with whole system integration solutions for development ,design,construction ,operation and maintenance.Any requirement for the accurate solutions,pls contact with our salesman directly.
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
❖ Ling Yang Technology Solar System
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
❖ Quality gurantee
The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
❖ Plywood Package
The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
Customized wholesale photovolta panel monocrystalline 380w 385w 390w china pv manufacturer shingled solar panels
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
