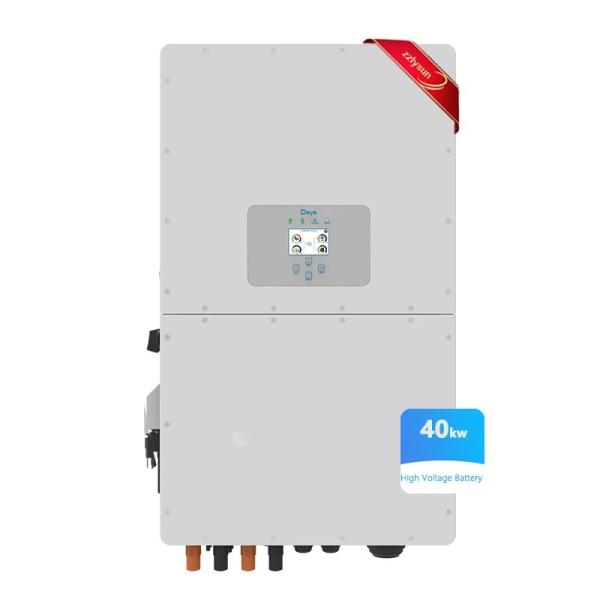

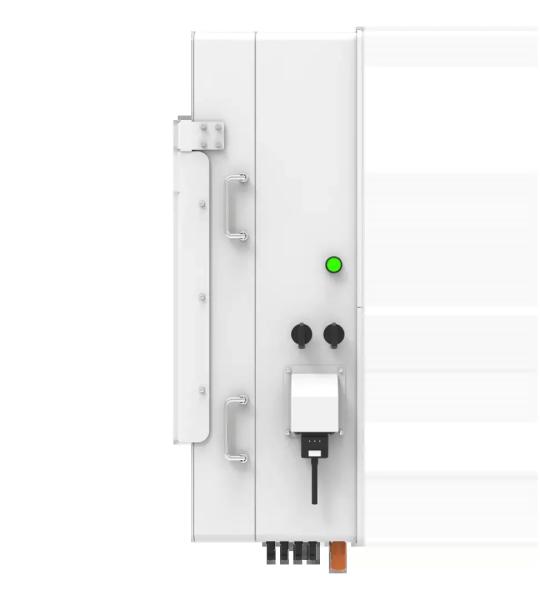

New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Deye
Model Number :
SUN-40K-SG01HP3
Input Voltage :
1000V
Output Voltage :
220/380V
Output Current :
60.7/58
Output Frequency :
50/60Hz
Output Type :
Three Phase
Size :
527*894*294
Type :
DC/AC Inverters
Inverter Efficiency :
97.6%
Certificate :
EN/IEC
Warranty :
5 YEARS
Weight :
75kg
Battery Type :
Lithium-ion
Battery Voltage Range :
160~800V
Max. Charging Current :
50+50A
Number of battery input :
2
Charging Strategy for Li-Ion Battery :
Self-adaption to BMS
Max. DC Input Power :
52KW
Max. DC Input Voltage :
1000V
MPPT Range :
150-850V
No.of MPP Trackers :
4
No.of Strings per MPP Tracker :
2
Packaging Details :
Plywood Case
Port :
Shanghai/Ningbo/Qingdao/Guangzhou
Supply Ability :
10 Carton/Cartons per Day
Price :
$4,640.00/watts 1-4 watts
Description
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter

❖ General mode：

Commercial hybrid solar system will be used on the framland,residential community ,bus station,factory ,car parking and large ground power station.Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
❖ Description：
Deye hybrid solar inverter is brand new three phase hybrid inverter with High voltage battery 160-800V, ensuring system efficiency and less heat dissipation.With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.
Model
SUN-30K-SG01HP3
SUN-35K-SG01HP3
SUN-40K-SG01HP3

SUN-50K-SG01HP3
Battery Input Data
Battery Type
Lithium-ion
Battery Voltage Range (V)
160~800
Max. Charging Current (A)
50+50
Max. Discharging Current (A)
50+50
Number of battery input
2
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)
39000
45500
52000
65000
Max. DC Input Voltage (V)
1000
Start-up Voltage (V)
180
MPPT Range (V)
150-850
Full Load DC Voltage Range (V)
360-850
Rated DC Input Voltage (V)
600
PV Input Current (A)
36+36+36
Max. PV I (A)
55+55+55
No.of MPP Trackers
3
4
4
4
No.of Strings per MPP Tracker
2
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter

❖ Feature
* 100% unbalanced output；each phase
* AC couple to retrofifit existing solar system
* Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
* Max. charging/discharging current of 100A
* High voltage battery, higher efficiency
* 6 time periods for battery charging/discharging
* Support storing energy from diesel generator
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter



❖ Protection

* Anti-islanding Protection, PV String Input Reverse Polarity Protection。

* Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection。

*Output Shorted Protection, Surge Protection
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
❖ AC Output Data

* Rated AC Output and UPS Power (W)：30kw/35kw/40kw/50kw
* Max. AC Output Power (W):33kw/38.5kw/44kw/55kw
* Peak Power (offff grid):1.5 time of rated power, 10 S
* Power Factor:0.8 leading to 0.8 lagging
* Output Frequency and Voltage:50/60Hz; 3L/N/PE 220/380, 230/400Vac
* Grid Type:Three Phase
* Total Harmonic Distortion (THD):<3% (of nominal power)
* DC current injection:<0.5% In

New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
❖ Function

* Max. Effiffifficiency:97.60%
* Safety EMC / Standard:IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
* Operating Temperature Range (℃):-40~60℃, >45℃ derating
* Cooling:Smart cooling
* Communication with BMS:RS485; CAN
* Weight (kg)：75kg
* Size (mm):527×894×294
* Protection Degree:IP65
* Installation Style:Wall-mounted
* Warranty:5 years

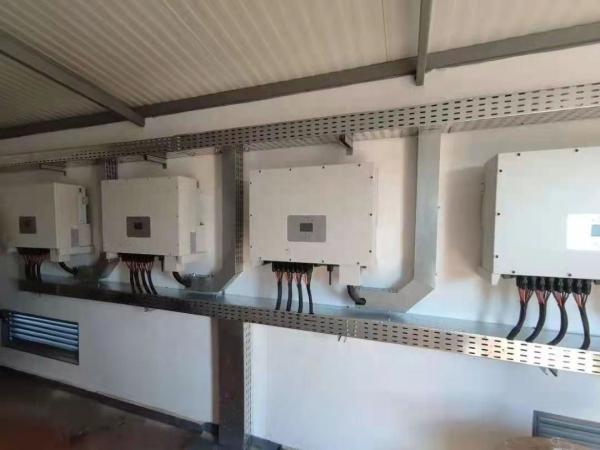

❖ Project

The home hybrid soar system is mainly suitable for applications where the power grid is unstable and there is an important load, or the photovoltaic self-use can not fed to the grid, the self-use price is much more expensive than the on-grid price, and the wave peak price is much more
expensive than the wave flat price.
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
❖ Exhibition
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter

❖ Company

The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter

❖ Quality gurantee

The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter

❖ Plywood Package

The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
New energy photovoltaic 3 phase high low frequency 40kw solar hybrid inverter off grid hybrid inverter

❖ Certificate

1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the
different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are
including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality
problem,will let us freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
