Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Specifications
Place of Origin :
Liaoning, China
Brand Name :
ZONELINK
Packaging Details :
in wooden
Supply Ability :
100 Set/Sets per Year
Price :
$29,000.00/sets >=1 sets
Condition :
New
Type :
Filling Machine
Machinery Capacity :
1500 pcs/hour
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Application :
Chemical, APPAREL
Packaging Type :
Other
Packaging Material :
Plastic, Other
Automatic Grade :
Semi-automatic
Driven Type :
Electric
Voltage :
380V/customized
Dimension(L*W*H) :
1665*607*1550
Weight :
300 KG, 300kg
Warranty :
1 Year
Key Selling Points :
High-accuracy
Filling Material :
glycerin gelatin etc
Filling Accuracy :
98%
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Pressure vessel, Pump, Other, PLC, Gear, Bearing, Gearbox, Engine
output :
1000-1500 pcs/hour
single dosage :
0.5-5ml
dosage allowed :
<±2%
capacity of the liquid barrel :
5L
consume the tolerance :
0.6m3
atmospheric pressure :
≥0.6Mpa
Each distance of suppository :
17.4mm
After Warranty Service :
Field maintenance and repair service
After-sales Service Provided :
Online support
Port :
SHANGHAI port
Description

High quality automatic anal glycerin price of suppository production line

Products Description
Anal Glycerin Suppository Filling Machine Automatic Production Line

Operating principle of the whole machine.

ZL-1l suppository filling production line has stable and efficient filling, sealing and other production processes, and production capacity of 1000-1500 pcs per hour.
3.1.1.1 Filling
And one-time molding suppository for embedded type filling, filling accuracy + / - 2%, filling material barrel has electric
heating insulation system, the top is equipped with a uniform mixing machine in order to make drugs, drug by high precision in VAT filling pump into the filling head, a drug through the other end of the cycle to rest after filling material barrel filling again next time.
3.1.1.2 Sealing
After infusion, the suppository enters the sealing area: preheating mold (preheating), heating mold (heating), sealing die (batch number).
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line

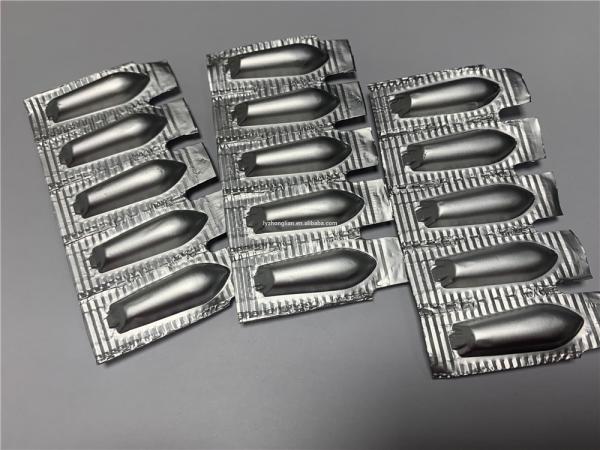

Sample
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Technical parameter
output
1000-1500 pcs/hour
single dosage
0.5—5ml
dosage allowed
＜±2%
store the capacity of the liquid barrel
5L
consume the tolerance
0.6m3
atmospheric pressure
≥0.6Mpa
water quantity
15kg (recycling)
the voltage of the power
Three-phase AC 380V
adapt to the host
Synthetic fatty acid glycerin, glycerin gelatin, polyethylene glycol, etc.
Total power
≥2.5KW
Each distance of suppository
17.4mm
Weight
300kg
External dimension
L1665mmxW607mmxH1550mm
Packing&Shipping
Anal Glycerin Suppository Filling Machine Automatic Production Line
Our company
Anal Glycerin Suppository Filling Machine Automatic Production Line
Liaoyang Zhonglian Pharmaceutical Machinery Co.,Ltd. is belong to Zhonglian group, was established in 2001.The head office is located in Liaoyang city, Liaoning province.We are the professional manufacturing enterprises of chemical equipment and food equipment,mainly including separating equipment,filling equipment,packing equipment,etc. The company covers an area of ten thousand square meters,production workshop area of seven thousand square meters,own professional technical team and after-sales service team.
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
Anal Glycerin Suppository Filling Machine Automatic Production Line
The company took the lead through the ISO9001:2008 International Quality System Certification in the same industry,and having finished certification standards,obtaining Utility Model Patent Certificate and many other awards.
Anal Glycerin Suppository Filling Machine Automatic Production Line
Our company have built a long-term and stable cooperation relationship with many strong manufacturing enterprises in China, we can supply the whole project service for our customers with high quality equipment,competitive price,reliable superior service.At present,our successful project are coconut oil production line,liquid filling production line and packing production line and so on. At present, our products have been exported to the United States,Mexico,New Zealand, South Korea,Australia,Turkey,Japan,Thailand,Malaysia,Singapore,Indonesia,Canada,Kenya,Seychelles,Italy,Venezuela,Peru,India,
Russia,Denmark,Spain,Finland,Greece,Colombia, and so on more than 30 countries. Our aim is saving your valuable time and cost,providing you with the workable solution!
