Specifications
Condition :
New
Type :
Filling Machine
Machinery Capacity :
1000-120000BPH
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Food Shop
Showroom Location :
None
Application :
Food, Beverage
Packaging Type :
Capsule
Packaging Material :
Plastic, Paper, Glass
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
308V/50HZ Customized
Place of Origin :
Liaoning, China
Brand Name :
ZONELINK
Dimension(L*W*H) :
3500*800*1750
Weight :
200 KG
Warranty :
1 Year
Key Selling Points :
High-accuracy
Filling Material :
Beer, Other, Milk, Water, Oil, Juice, Powder
Filling Accuracy :
99.5%
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, PLC, Gear, Engine
function :
coffee capsule filling sealing
Material :
ss304/316
Capacity :
3000cups/head/hour
Filling head :
2-10
control :
plc
packing type :
Cup, K-cup, Nespresso, Dolce Gusto
Packaging Details :
in wooden
Port :
China seaport
Supply Ability :
100 Set/Sets per Year
Price :
$8,000.00 - $20,000.00/sets
Description
Product Overview

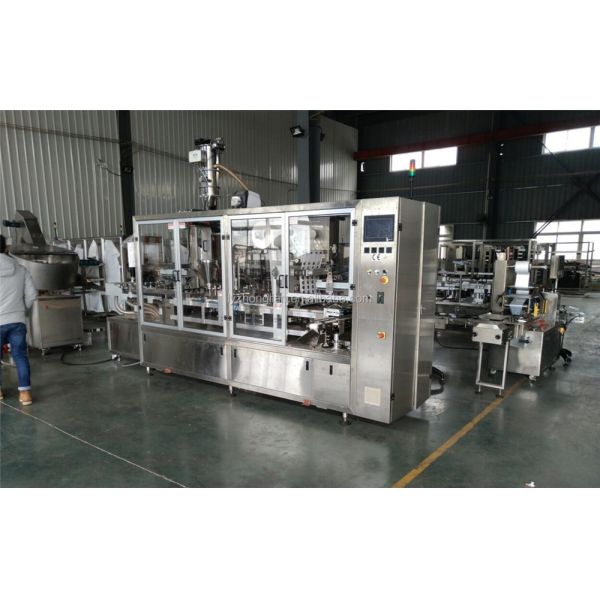

Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales

Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales

coffee capsule filling machine is a multifunctional high-speed full automatic machine specially designed for liquid or semi-liquid or powder(such as water, milk, yogurt, olive oil, fruit juice, tomato sauce, honey,coffee powder) to be filled and sealed. The machine applied with world famous electrical and pneumatic components. High quality, high stability, long service life. All the parts of machine are made of food grade #304 stainless steel.
It is convenient and reliable. It is a kind of program-controlled machine that is universal and functional. Features are compact structure, high automation, easy to use, stable performance, simple maintenance, and high production efficiency and 24-hour continuous work. Components (e.g. Stainless steel, aluminum, copper and other corrosion-resistant) are in line with Food Hygiene Law.
PRODUCT SPECIFICATIONS
Model
Z-2
Z-4
Z-6
Z-8
Z-10
Capacity(cups/h)
2500-3000
5000-6000
10000-12000
15000-18000
20000-24000
Filling Capacity
5-30ml
5-30ml
5-30ml
5-30ml
5-30ml
Total Power
4KW
4.5KW
5KW
5.5KW
6KW
Air Consumption
0.65m³/min
0.68m³/min
0.70m³/min
0.73m³/min
0.78m³/min
Voltage
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz
Temperature Range
0-300℃
0-300℃
0-300℃
0-300℃
0-300℃
Machine Weight
800KG
900KG
950KG
1000KG
1100KG
Machine Size
3500*800*1750mm
3500* 1100* 1750mm
3900*800*1750mm
3900*1100*750mm
3900*1300*1750mm
PRODUCT CONFIGURATION
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales

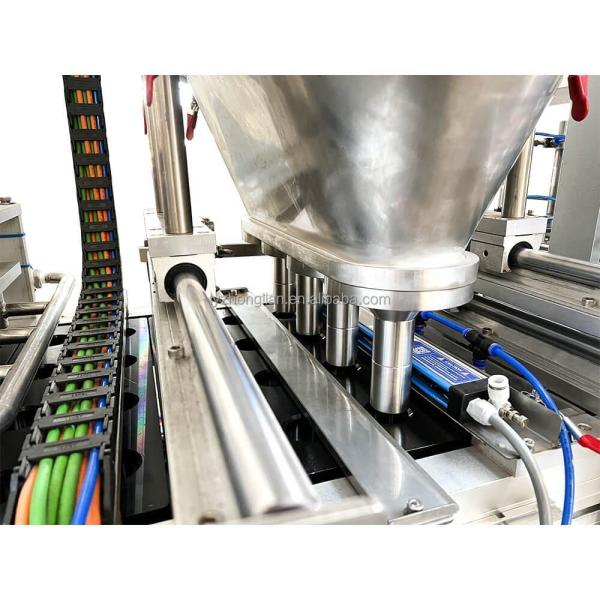

COFFEE FILLING
1.Auger filler driven by servo motor.
2.Contant speed mixing device ensures that the desity of coffee is always uniform and there is no cavity in the hopper.
3.Visible hopper
4.The whole hopper can be pull out and moved for easy cleaning.
5.Special filling outlet structure ensures stable weight and powder spreading.
6.Powder level detection and vacuum feeder
7.Automatically convery powder

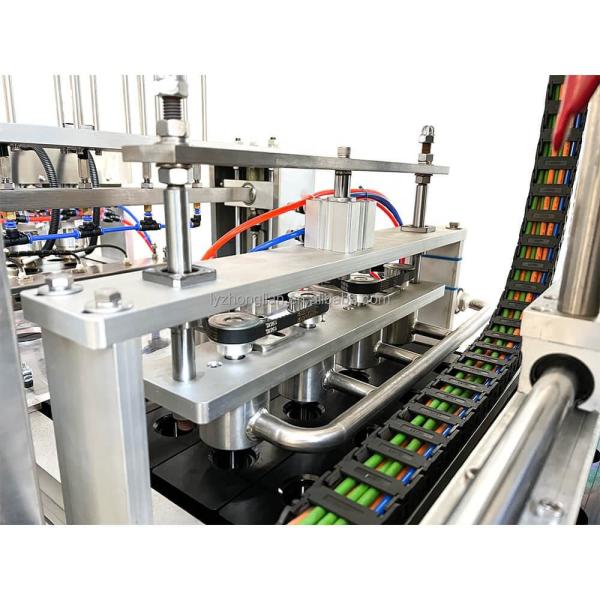

COFFEE PRESSING AND CAPSULE RIM CLEANING
1.Powerful vacuum clean-up device for top edge of capsules/cups to get a good sealing effect.
2.Pressure adjustable stamping,it compacting powder strong when brew coffee,it will get a good espresso extract more crema.
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
LID DISPENSING(PRE-CUT LID)
1.Automatic pick and place aluminum foil film
2.Cutting aluminum foil film and sealing lids at one step,it can position lids one the capsules top center,when film touch with capsule top,then cutting and sealing.
3.Special tool cutting blade,it guarantee cutting teeth very smaller,get a good appearance.

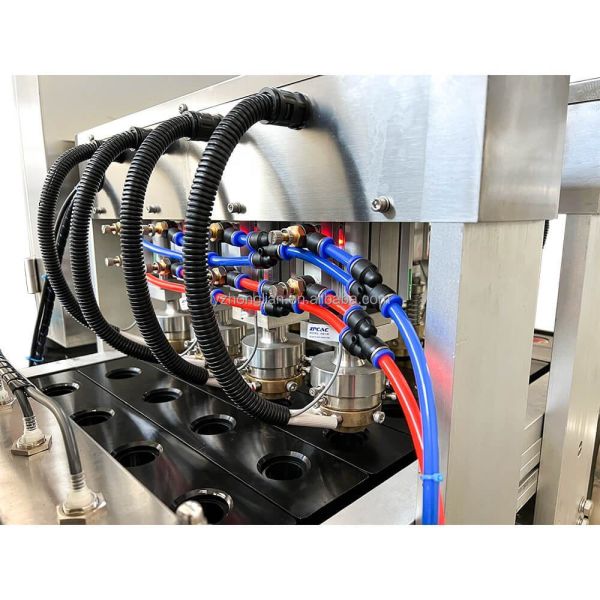

SEALING
1.The heat-sealing process has been improved,and the seals have been turned into seal.
2.Under the premise of ensuring lids sealing 100% without gas leak,film folds are avoided.
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales

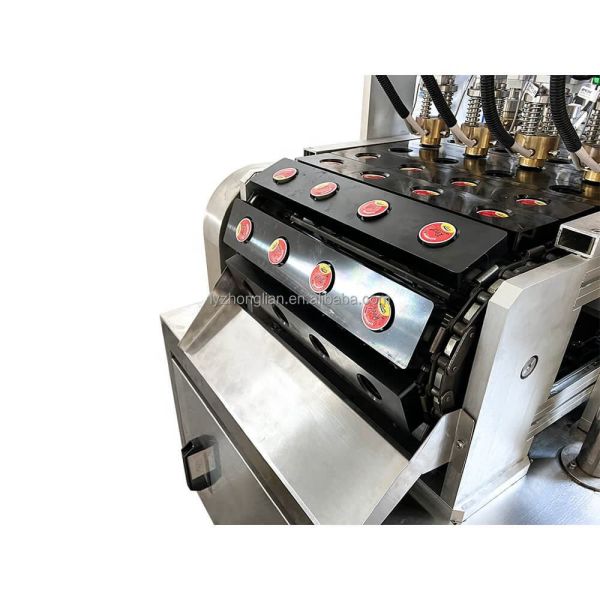

OUTPUT
1.Stable and orderly grab system.
2.Precise rotation and placement system.
3.Vacuum or mechanical claws.Pick and place finished capsule on the 1.8meters convery belt.
capsule filling machine coffee Sample:
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
Package & Shipping
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
SIMILAR PRODUCTS
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
Company Profile
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
Liaoyang Zhonglian Pharmaceutical Machinery Co.,Ltd. ,belongs to ZHONGLINAN international Group. We are the professional manufacturer of pharmaceutical equipment and food equipment, which including separating equipment, filling equipment, packing equipment, dryer and relevant complete set of production line equipment.Group was founded in 2001, the headquarters is located in Liaoyang city, Liaoning province. The factory covers an area of ten thousand square meters, production workshop seven thousand square meters. The factory own a professional r&d team and after-sales
service team. In the same industry take the lead through the ISO9001:2008 international quality system certification, and get the certification of , CE, GMP and so on.
At present, our products have been exported to the United States, Mexico, New Zealand, South Korea,Australia,Turkey,Japan,Thailand,Malaysia,Singapore,Indonesia,Canada,Kenya,Seychelles,Italy,,Venezuela,Peru,India,Russia,Denmark,Spain,Finland,Greece,Colombia,and so on more than 30 countries. Our aim is saving your valuable time and cost, providing you with the workable solution!
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales

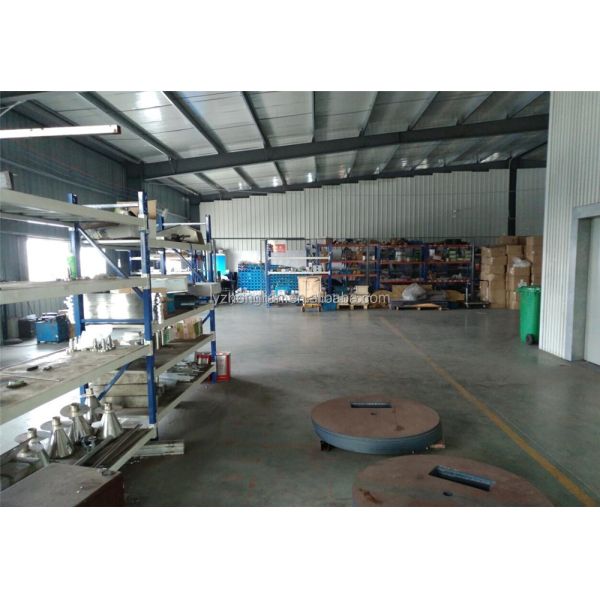

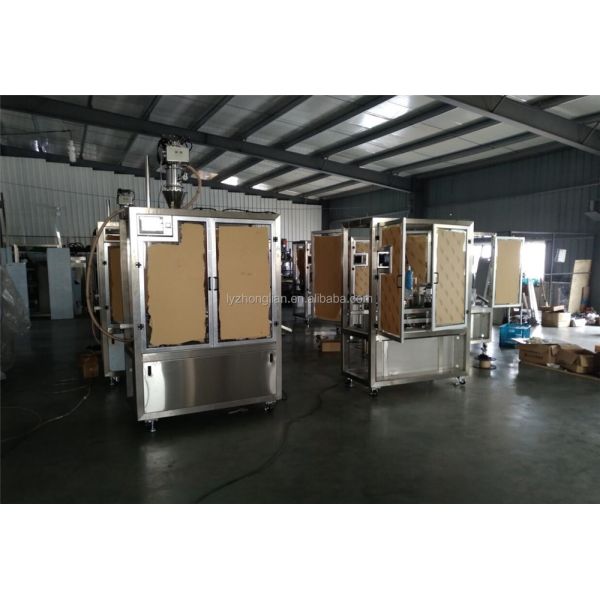

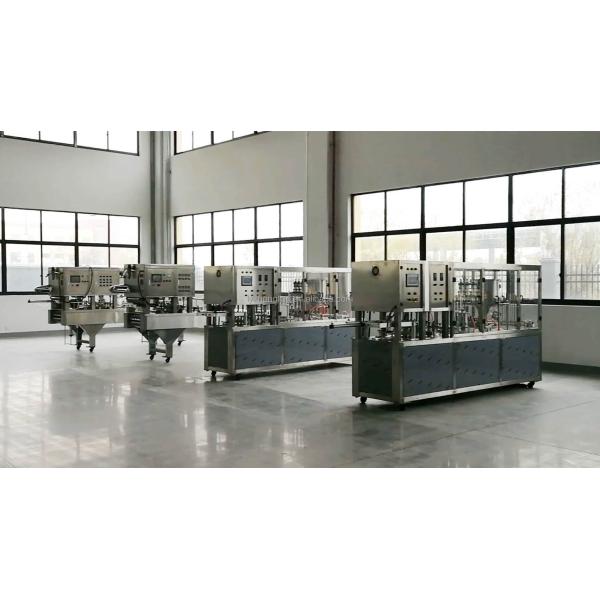

capsule filling machine coffee Factory:
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
Our Customer
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
Zhonglian nespresso capsule coffee filling machine automatic cup filling and sealing machine for wholesales
FAQ
1. How can our machine match client demand well?
We will send your the video or some question to confirm your demand. if the machine is suitable for you, we will make a detail project for you. You can send us sample to us and we will take a video for you. Or we also welcome you take the sample by yourself to our factory to see the machine effect.

2. We are a factory or a trading company?
We are the manufacturer, and have been in industry for more than 20 years. Welcome to visit us.

3.How about the payment way?
You can pay by T/T or LC, or by Alibaba`s trade assurance service, or by the West Union, or in cash.

4. How to ensure the machine's quality after buyer put the order?
Before the delivery, we will test the machine. When we make sure it run faultlessly, we will send you machine's pictures and
videos. Or You can come to us to check by yourself, or by the third party inspection organization contacted by your side.

5. Worry us won't deliver the machine after you pay the cost.
We are the VIP member in ALIBABA. Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.

6. Why choose us?
1) We have been engaged in the manufacturing for over 30 years, and we can not only supply you the single machine, but also can supply you the full line.
