Specifications
Place of Origin :
Liaoning, China
Type :
Centrifuge, GF Tubular Centrifuge
Product Type :
Oil water separator
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Bowl
Brand Name :
Zonelink
Voltage :
380V
Power :
2.2KW
Weight :
420
Dimension(L*W*H) :
800*700*1400mm
Warranty :
1 Year
Key Selling Points :
Flexible Manufacturing
Applicable Industries :
Food & Beverage Factory, food industry
Showroom Location :
None
Name :
Centrifuge Separator
Function :
Liquid Liquid Soild Centrifuge
Description :
Liquid Separation Machine
Application :
Food Chemical Industry
Capacity :
1200L/h based on water
Material :
Stainless Steel 304/316L
Operation :
Manual Solid Discharge
Rotating Speed :
16000rpm
Drum Diameter :
105mm
Packaging Details :
Standard Exported Wooden Case Package
Port :
Dalian Seaport
Supply Ability :
1000 Set/Sets per Year
Price :
$3,400.00 - $7,400.00/sets
Description
Product Description
Plastic plant tubular centrifuge tube stainless steel coconut oil filter made in China
Plastic plant tubular centrifuge tube stainless steel coconut oil filter made in China
Main Application
Plastic plant tubular centrifuge tube stainless steel coconut oil filter made in China
GF tubular centrifuge is used for separating various emulsion,especially suitable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation,such as separation of various oil and micro-powder,extract liquid from plants,plasma and cell,separation of milk cream.
(1) Oil water separation:coconut oil,avocado oil,vegetable oil,motor oil,waste oil,etc
(2) Clarifying process for liquid solid product (oral liquid)
(3) Extraction of protein,seaweed and jelly(plant extraction,herb extraction,pigment)
(4) Refined molasses
(5) Separation of animal blood cell and plasma
(6) Settlement of bacteria(yeast,E.coli,lactobacillus,bacillus subtilis,nitrobacter etc)
(7) Purifying paint,dye,various resin
(8) Processing of granular,crystalline and fibrous suspensions
(9) Separation of filterable and non-filterable sludge
tubular centrifuge, oil water separator, coconut oil machine, solid liquid separator
Plastic plant tubular centrifuge tube stainless steel coconut oil filter made in China
Lubricating oil separation
Plastic plant tubular centrifuge tube stainless steel coconut oil filter made in China
Motor oil separation
Plastic plant tubular centrifuge tube stainless steel coconut oil filter made in China
Coconut oil separation
Structure & Principle
Plastic plant tubular centrifuge tube stainless steel coconut oil filter made in China

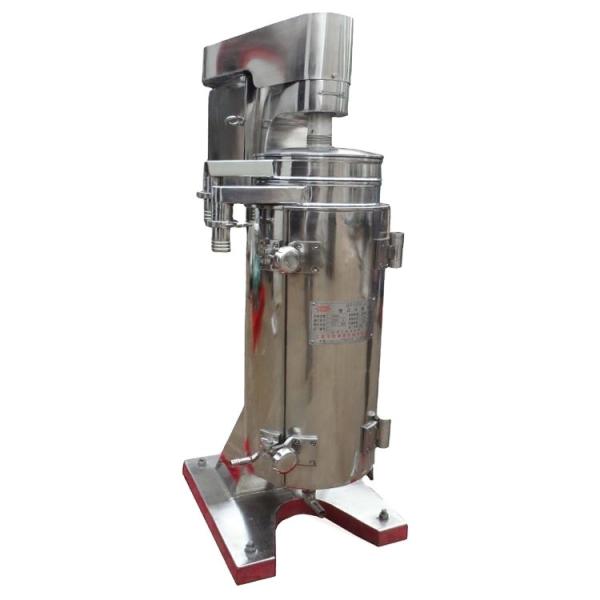

The high speed separator is consisted of main body,driving parts,bowl collecting pan and liquid-in bearing seats.The upper of the bowl is flexible mainshaft and the lower of it is damp floating.The mainshaft is connected with a driven wheel by the coupling seat with buffer.The power is transmitted by the motor through the transmission belt and the tensioner to make the bowl rotate around its axis at an overspeed and form a strong centrifugal force field.
The liquid flow into the liquid inlet from the bottom and is forced to flow upward along the inner wall of the bowl,is separated into different layers according to different density.
GF model is a separator where the liquid phase of large density is formed into outer ring,the liquid phase of small density is shaped into inner ring,to flow to the topof bowl,to be

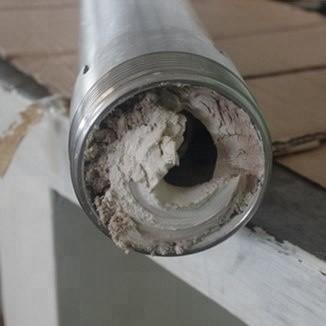

discharged out from their respective liquid outlets.The micro solids settle on the wall of the bowl and are to be manually dumped after the machine is shut down.
