Specifications
Place of Origin :
Liaoning, China
Type :
Centrifuge
Product Type :
Solid Liquid Separator
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Motor
Brand Name :
Zonelink
Voltage :
Design for different country
Power :
11Kw
Weight :
2300
Dimension(L*W*H) :
1920*1500*1200mm
Warranty :
1 Year
Key Selling Points :
Flexible Manufacturing
Applicable Industries :
Food & Beverage Shops, Manufacturing Plant, Other
Showroom Location :
None
Centrifuge Type :
Filter Centrifuge
Application :
Food/Chemical Industry/Liquid Solid Separation
Feature :
Big Capacity,Stable Running,Stainless Steel Material
Bowl Inner Diameter :
1000mm
Bowl Thickness :
10mm
Bowl Height :
420mm
Working Volume :
140L
Max Loading Capacity :
200Kg
Rotating Speed :
1200rpm
Separating Factor :
800
Packaging Details :
Standard Exported Wooden Case Package
Port :
Dalian Port
Supply Ability :
1000 Unit/Units per Year
Price :
$4,000.00/units 1-1 units
Description
Product Description
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge
PS series filter centrifuge has reasonable structure design,simple geometric shapes which can eliminate the health corners effectively,structural parts smooth transition,the surface polished, external components,fasteners and the parts contacting material are made of stainless steel,the shell is clamshell type,which can thoroughly clean the inter-layer between shell and bowl.Base is the flat structure,reducing the machine center of gravity,small size,the shell and base is overall welded form,bearing’s strength is high.Configuration of liquid rubber damper to reduce vibration, which can realize installation without basing.Shell is clamshell model with a large or small,cover with feed tube, washing pipe, light mirror,observation port, and spray systems,it is also equipped with nitrogen protective devices to isolate the machine chamber and outside air.Direct or external type specific motor,belt drive eliminates potential dust,inverter start smoothly, dynamic braking, the machine is good sealing performance,anti-explosion,can be applied to toxic and flammable, explosive situation.
Main Application
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge
1.Chemical Industry:gypsum, thiamin, Glauber's salt, ferric sulfate, boric acid, borax, dye, rubber
additive, and other chemical products. 2.Food industry: kitchen salt, sodium glutamate, food additive, chemical seasonings, sugar. 3.Industry:Vitamin Extraction,biotic. 4.Mine and Metallurgy: Copper, zinc, minerals, and metal refining. 5.Environmental Protection: with acid discharge, pure water sludge and sewage sludge, etc.
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge
Structure & Principle
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge
PS series flat filtration centrifuge’s bowl is based parts,external-coupled motor drives the belt and the bowl rotate at high speed to form a centrifugal force field.Suspension liquid flow into the bowl from the top of the feeding tube, under the action of centrifugal force, threw to the drum wall,then into the inter-layer between shell and bowl through the filter holes in the bowl. Next,threw into the liquid collection chamber at the bottom of machine,discharged by the drain pipe,and solid phase retained the bowl.For washing,the washing water through the washing tube to wash,solid phase is discharged from the top by hand.
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge
Detailed Images
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge

The upper cover of filter centrifuge

The upper cover has feeding port, cleaning water feeding port, also observe port and light hole.If need explosion proof function,we can add nitrogen feeding port for protection.All the port on the upper cover, the size can be customized.
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge

The bowl of filter centrifuge

The bowl is the main part of filter centrifuge.There are many holes,and the liquid will flow out from the holes.Solid will be discharged from the upper of centrifuge.All stainless steel material or better meterial.
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge

The liquid outlet of filter centrifuge

Filter centrifuge is liquid bottom discharge equipment.The liquid outlet is at the bottom of machine.The liquid will flow out when separating,all contact parts material is stainless steel.The outlet size can be customized.
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge

The motor of filter centrifuge

The motor connection type of filter centrifuge can be direct or external. We can provide standard normal motor or explosion-proof motor. Normal power supply is 380V 50Hz 3-phase. Different in different country can be customized.

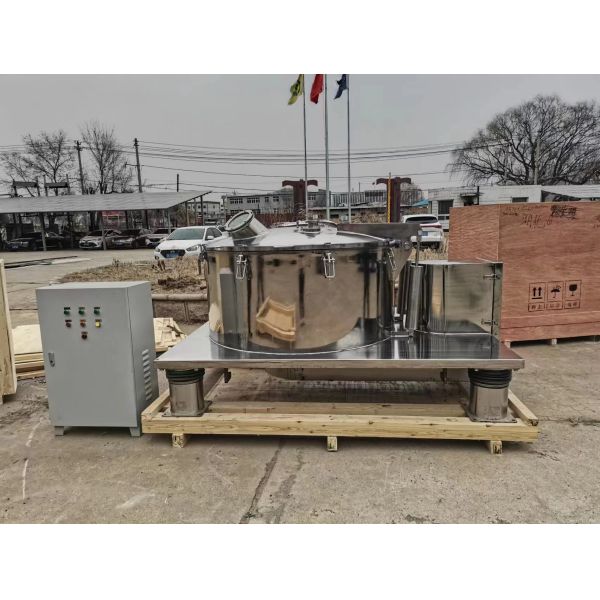

Package & Shipping
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge
Company Information
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge
VR
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge
Health Care Products anti-corrosion centrifuge sanitary food centrifuge continuous centrifuge
Our company was established in October 2001,own many years of professional production experience.The company is located in China's earliest engaged in the centrifuge factory liaoyang city,liaoning province,covers product workshop area of seven thousand square meters,special engaged in the centrifuge separator and other machinery.The products have been widely used in many industries,such as food,chemical and many other industries.Our products were exported to many countries,North American countries such as the USA, Mexico.Aoutheast Asian countries such
as Thailand, Singapore, Malaysia, Indonesia.East Asian countries such as Korea.South American countries such as Venezuela, Peru. With reliable quality & excellent after-sales service,we won the support of the broad masses of overseas customers.
