Paper Bags Paper Box Forming Machine For Take Away Food
Paper Bags Paper Box Forming Machine For Take Away Food
Paper Bags Paper Box Forming Machine For Take Away Food
Paper Bags Paper Box Forming Machine For Take Away Food
Paper Bags Paper Box Forming Machine For Take Away Food
Paper Bags Paper Box Forming Machine For Take Away Food
Paper Bags Paper Box Forming Machine For Take Away Food
Paper Bags Paper Box Forming Machine For Take Away Food
Paper Bags Paper Box Forming Machine For Take Away Food
Paper Bags Paper Box Forming Machine For Take Away Food
Paper Bags Paper Box Forming Machine For Take Away Food
Paper Bags Paper Box Forming Machine For Take Away Food
Specifications
Place of Origin :
China
Packaging Details :
Standard packing for paper bag machine
Supply Ability :
100 Set/Sets per Month
Price :
$16,500.00/sets 1-2 sets
Applicable Industries :
Hotels, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, France, Viet Nam, Saudi Arabia, Indonesia, India, Morocco, Kenya, South Korea, Chile, UAE, Colombia
Condition :
New
Product Type :
Paper Bag Making Machine
Processing Type :
Paper Folding Machine
Voltage :
220/380V
Power :
6KW
Dimension(L*W*H) :
4400*1700*1600mm
Weight :
1450 kg
Warranty :
1 Year
Production Capacity :
60-400pcs/min
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2021
Warranty of core components :
1.5 years
Core Components :
PLC, Other, Motor, Bearing, Gearbox
Port :
Ningbo or shanghai
Description
Paper Bags Paper Box Forming Machine For Take Away Food
Product and parameters
Paper Bags Paper Box Forming Machine For Take Away Food

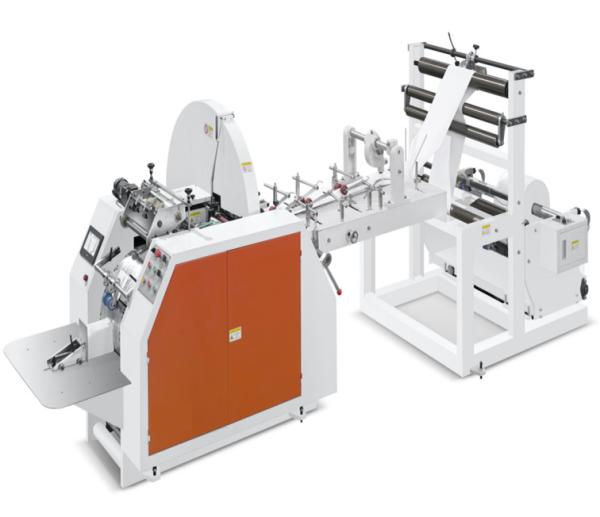

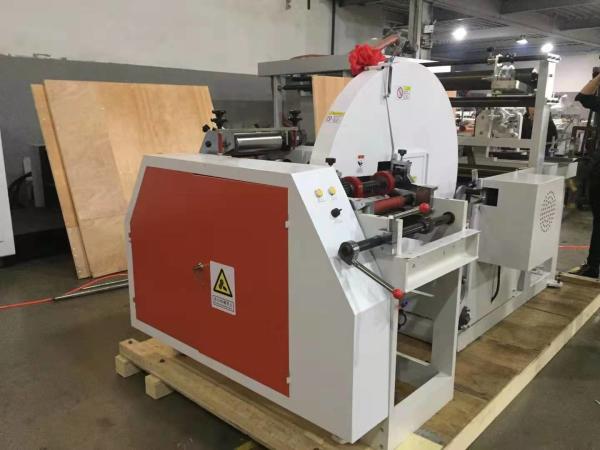

Adjustable V Bottom Paper Bag Machine
◆ Properties and Uses
This machine is used for primary color paper or printed web paper. It is used to make paper bags with pointed bottom at one time.
The machine can be used in various paper bags with high speed and efficiency. It is an ideal equipment for paper bag production.
This machine is composed of drum feeding (pneumatic feeding, automatic deviation correction, tension adjustment), side gluing,printing paper electric eye tracking, base paper into cylinder, fixed-length drawing cutting, bag bottom indentation opening, bag bottom gluing forming, bag out finishing and so on.
The whole machine is controlled centrally by PLC touch screen and servo motor controls the length of paper bag.
Specification
Paper Bags Paper Box Forming Machine For Take Away Food
Paper Bags Paper Box Forming Machine For Take Away Food
Model
XKJD400
Paper bag length
· 120-420mm(L)
Paper bag width
· 80-240mm(W)
Paper thickness
· 40-80g/㎡
Machine Speed
· 60-400pcs/min
Paper roll width
· 260-720mm
Insert Paper Edge
· 20-100mm(2M)
Machine power
· 6kw
Machine weight
· 1450kg
Machine size
· 4400x1700x1600mm
Video
Paper Bags Paper Box Forming Machine For Take Away Food
◆ This is our new design food paper bag making machine, which used for KFC, Mcdonald's like chips, bakery and so on.
◆ Automatic constant tension control for unwinding, Servo Motor system, motor for material feeding with inverter.
◆ Main motor with inverter
◆ The machine can be stop automatically once out of material.
◆ Wheel type gusset unit with motor driving.
◆ Closed type automatic glue application and forming system.
◆ Side lay working table, easy operation.
