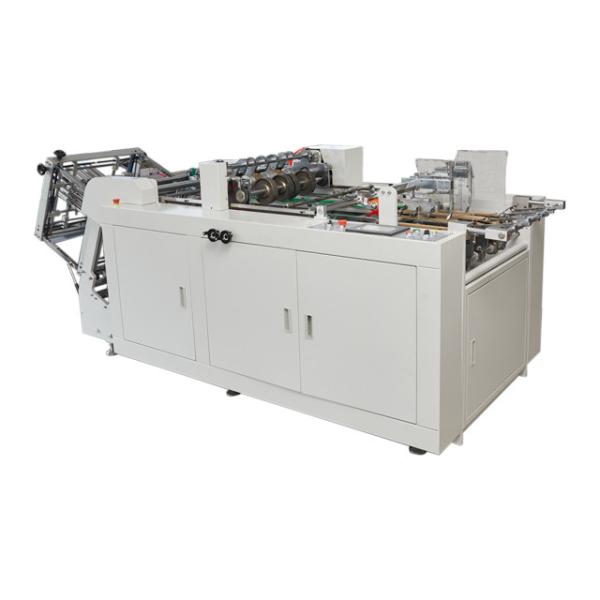

Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Specifications
Place of Origin :
Zhejiang, China
Packaging Details :
Standard packing for paper box machine
Supply Ability :
100 Set/Sets per Month
Price :
$11,500.00/sets 1-4 sets
Applicable Industries :
Hotels, Food & Beverage Factory, Restaurant, Retail, Food & Beverage Shops
Showroom Location :
Egypt, Canada, Turkey, Italy, France, Germany, Peru, Saudi Arabia, Russia, Spain
Condition :
New
Product Type :
Paper Box Making Machine
Processing Type :
Paper Folding Machine
Voltage :
380V
Power :
4.5KW
Dimension(L*W*H) :
2950*1300*1300mm
Weight :
2000 kg
Warranty :
1 Year
Production Capacity :
80-180 pcs/min
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Other, Gear, Bearing, Gearbox
Control system :
PLC
Paper Material :
180-600gsm cardboard / corrugated paper
speed :
80-180pcs/min
Dimension :
2950*1300*1300mm
Total power :
4.5kw
Port :
Ningbo or shanghai
Description
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Product Description
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
■ Servo Motor Paper Box Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
■ Parameters
Model
XP-DB -1200
Paper Material
180—600gsm cardboard / corrugated paper
Box type
hamburger boxes, square boxes, food boxes, fast food boxes, French fries boxes,
Max. Liner speed
80—180pcs/min (different paper box shapes, he speed is different )
Paper thickness
Max 1.5mm
Carton size
Length: 100-450mm
width:100-580mm
height: 15-200m
Glue Material
Water-base cold glue
Paper size
Max: 650mm(W)*490mm(L)
Max box size
450mm*400mm
Min box size
50mm*30mm
Air source
6kgs/cm²*200L/min
Dimension(mm)
2950*1300*1300mm
Voltage
380V 50Hz / 220V 50Hz
Total power
4.5kw
Machine weight
2000kgs
Details Images
■ Details of The Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine

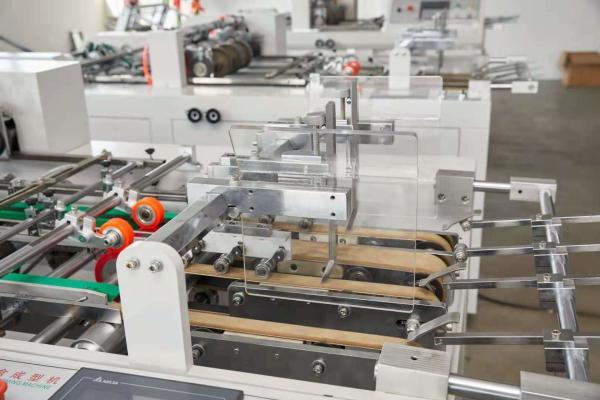

1 . Universal cage, adjustable according to the size of the mold, with the function of counting.
2 . Photoelectric for paper feeding,
more accurate, reduce paper waste
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
3 . Adjustable roll glue system, convenient glue point positioning, mold change.
4 . Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding.
Continuously Variable Speeder to ensure feeding internal and stable transmission.
Sensor according to each piece paper feeding,
If two pieces paper come together, machine will alarm
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
5. The machine is equipped with PLC control and Touch screen, It's easy and convenient to set and control the machine
Product Application
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine

Open square carton
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine

Hamburger box
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine

packing box
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine

Square box with cover
More Products
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
ZW-A40 Paper Bowl Machine KPCL50 Paper Lid Machine DW-50 Double Wall Machine
————————————————————————————————————————————————————
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
KQ-970 Die Cutting Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Flexo Paper Roll Printing Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Manual Die Cutting Machine
Packing&Shipping
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
■ Machine Loading
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
Food Tray Paper Box Forming Machine Hamburger Box Forming Machine
