Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Specifications
Place of Origin :
Zhejiang, China
Certification :
ce
Price :
$70,000.00/boxes 1-4 boxes
Applicable Industries :
Building Material Shops, Restaurant, Retail, Food Shop, Energy & Mining, Advertising Company
Showroom Location :
Turkey, France, Germany, Brazil, India, Russia, Argentina, South Korea, UAE, Algeria, South Africa, Uzbekistan
Condition :
New
Product Type :
paper bag machine
Processing Type :
Paper Folding Machine
Voltage :
220v
Power :
2000w
Dimension(L*W*H) :
30*40*50
Weight :
9500 kg
Warranty :
1 Year
Production Capacity :
180 pcs/min
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2022
Warranty of core components :
1 YEAR
Core Components :
PLC
Description
Product Description

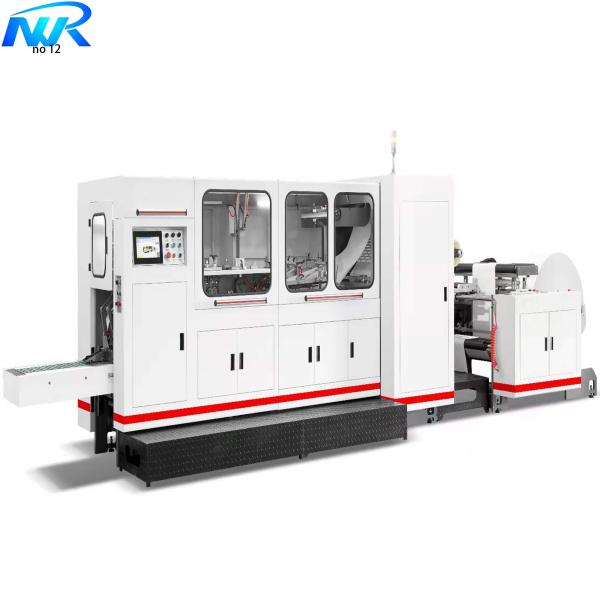

Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed

This machine is used for rolls of primary color paper or printing rolls such as kraft paper, glossy paper, medical paper, etc. The paper bag process consists of roll discharge (hydraulic feeding, automatic correction, constant tension), puncture, middle (side) seam gluing, color code tracking, raw material into a cylinder, fixed-length pulling and breaking, bottom gluing, bottom folding , The bottom of the bag is formed and the finished bag is finished in one time This machine is easier to operate, more efficient, and more stable. It is an ideal equipment for producing various paper bags, bread bags, snack food bags, bread bags, dried fruit bags and other environmentally friendly paper bags.
Specification
CTUBE CUTTING LENGTH
260-533mm
HBAG BOTTOM WIDTH
60-160mm
PAPER THICKNESS
60-150g/m2
MECHNICAL SPEED
30-200pcs/min
BAG MAKING SPEED
30-180 pcs/min
PAPER ROLL WIDTH
MIN. 320 MAX 1300mm
PAPER BAG WIDTH
220-460mm
PAPER ROLL DIAM.
1300mm
MACHINE POWER
3phase 4line 380V,15 kw
MACHINE WEIGHT
9500kg
MACHINE DIMENSIONS
3000x1800mm
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed

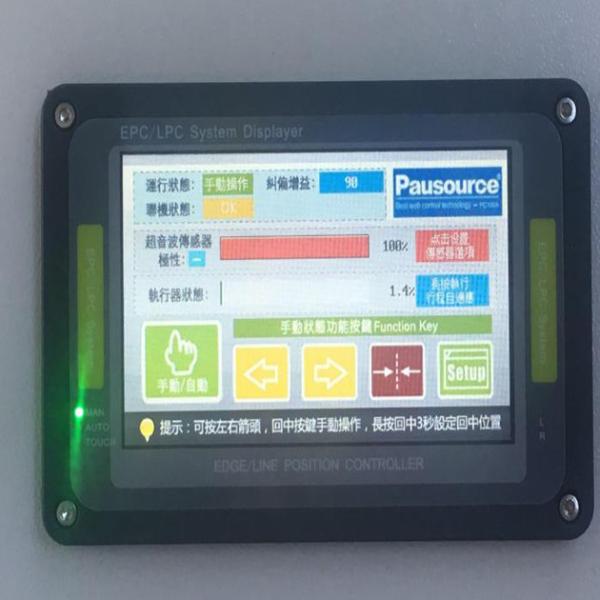

Using the TAIWAN WEIVIEW touch screen man-machine interface control system, operating at a glance.
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed

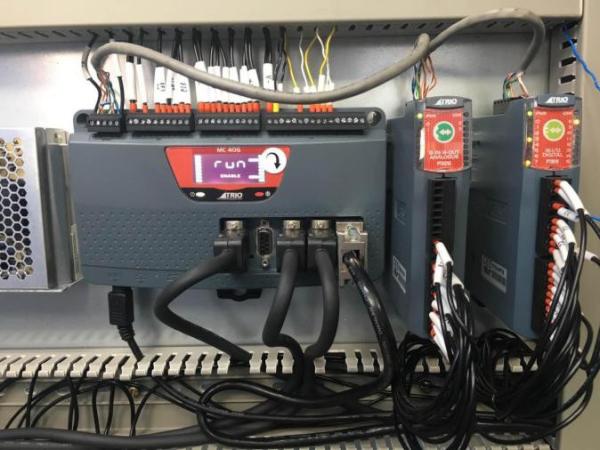

ENGLAND TRIO BRAND motion controller through more
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed

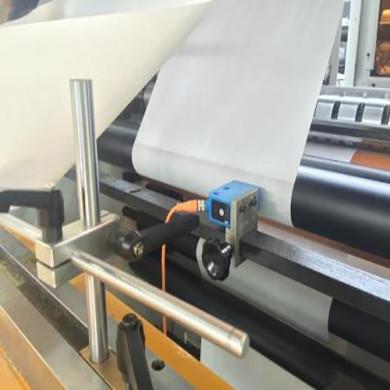

The use of ultrasonic simulation alignment the side, the reaction speed of the operation of a quick correction ,save time and save the waste of raw materials.
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed

Roll paper tension adopt magnetic powder brake, it can use long time, tension control is uniform.
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed

The automatic spray glue, the glue spray will not be interrupt when hign speed or low speed, convenient adjustment capacity, glue spray
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed

High pressure pressure can save glue, easy and simple to use without cleaning, saving cleaning and saving glue.
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed

The machine adopts high precision gear, long service life, to ensure high speed paper bag operation precision.
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed

Electric appliance control box with two fan to make the inside air fresh and dry,Strong guarantee for high speed operation of the machine, Keep the electrical components in the control box at a constant temperature.
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed

Whole machine casting frame 5CM wall plate
Packing & Delivery
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Delivery time: 30 days after receiving deposit
Packing and marking:Standard packing or wooden case
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Company Profile
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2016,sell to Southeast Asia(20.00%),Mid East(20.00%),South Asia(20.00%),North America(10.00%),South America(10.00%),Africa(10.00%),Domestic Market(10.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Non Woven Bag Making Machine,Disposable Mask Making Machine,Paper Cup Making Machine,Paper Bag Making Machine,Plastic Bag Making Machine
Square Bottom Mini Khaki Paper Bag Making Machine Automatic High Speed
