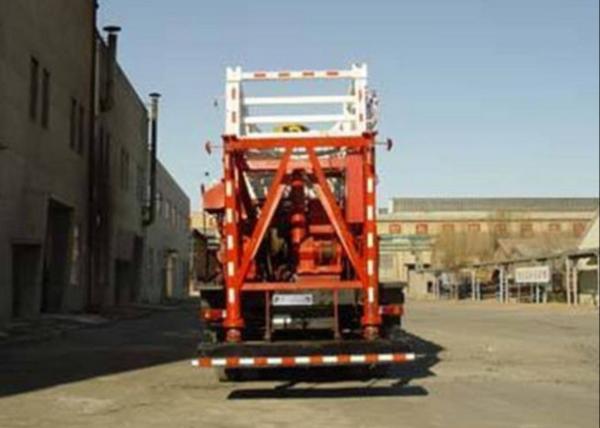

Bore Hole 144kw Truck Mounted Drilling Rig Equipment High Efficiency
Bore Hole 144kw Truck Mounted Drilling Rig Equipment High Efficiency
Specifications
Brand Name :
COMMAND
Model Number :
CDC-600Y
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10+SET+per35DAYS
Delivery Time :
35days
Packaging Details :
40 FR OR BULK CARGO SHIP OR RO RO SHIP
Warranty :
1 YEAR
Power(w) :
144KW
Drilling depth :
600-720M
Name :
Bore Hole 144kw Truck Mounted Drill Rig Equipment
Description

Military drilling machine, fast drilling completion, highly integrated drilling machine

Product selling points


our truck-mounted water well drilling rig is a customized product that customers can customize according to their actual needs. customers can choose from: chassis brand, boom length, mud pump selection, chassis installation air compressor and so on. the vehicle-mounted water well drilling rig is divided into different models according to the drilling depth, the maximum depth can reach 720 meters.


Dimensions(mm)Working10750×2500×13000
Transport11750×2500×4500
Whole machine weigher (t)25
Crew/operations staff (名)2
Maximum speed(Km/h)70
Automobile ChassisChassis SinotruckHOWO
Chassis ModelZZ2257M5857
Driving Mode6×6
Wheelbase (mm)5800+1400
　Drillingdiameter of holes(mm)500
RigAbilityDepth(m)600
　PowerModelBF8L513C
　Power (kw/rpm)213/2300
　Number of cylinders8
　Drill rodDrill rod inside(mm)φ89(73)×6000 φ114×4500
Top head DriveThrough hole diameter(mm)Φ260—φ600
speed(r/min)0~130
Torque Nm8400
TypeCylinder chain
To enter Agencypull back(kg)25000
　pill down(kg)10000
　Stroke(m)7.6
Shackle body shackle maximum torque(kN.m)30
Vice hoistSingle cable tension(kg)3000
Rope(mm)φ13
　Line speed m/min0~45
　Rope capacity m71
工HoistSingle cable tension(kg)1000
Rope(mm)φ10
Line speed m/min0~36
Rope capacity m35
centrifugal sand pump on the chassisModelJSB6×5×11
Maximum displacement120-220m³/h
pump head26m
skid mounted Mud Pump on the ground ModelBW1100
Pressure(MPa)5
Maximum displacement(l/min)1100
mastTypeTruss form
Load(t)40
Height (m)11

air compressor		Model Ingersoll-RandRHP825WCAT
pressure21bar
flow23.5m³
Dimensions(mm)4060*2000*2032
(L)Displacement of Diesel Engine8.8
Rated Rotate Speed of Diesel Engine1800rpm
Rated Idling of Diesel Engine1350rpm
(kw)Disel Engine Power261kw
Cooling Method of Diesel EngineDiesel/Water
(V)Electric System Voltage24
(L)Fuel tank capacity550
(kg)Weight4400
