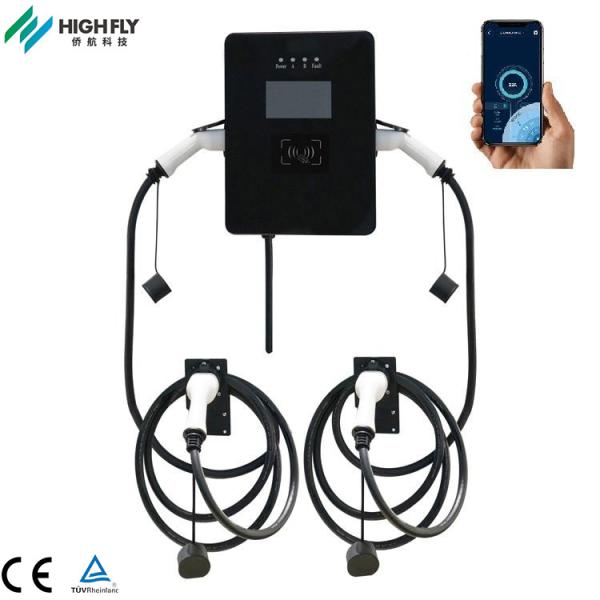

CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
Specifications
Place of Origin :
Germany
Brand Name :
Highfly
Model Number :
HFL-EVC2201E
Packaging Details :
Customized
Supply Ability :
100000 Piece/Pieces per Week
MOQ :
2 pieces
Price :
$540.00/pieces 2-5 pieces
Type :
Cigarette Lighter, Wireless Charger, Infrared Wireless Charger, Magnetic Wireless Charger, Wireless Arm Type, PHONE HOLDER
Year :
2016-2016, 2008-2010, 2008-2011, 2008-2012, 2008-2016, 2017-2019, 2015-2016, 2013-2013, 2015-2016, 2012-2013, 2017-2019, 2014-2016, 2013-2016, Universal, 2012-, 2016-2019, 2013-, 2008-, 2012-2013, 2017-, 2017-2019, 2008-2010, 2019-, 2020-, 2019-, 2018-, 20
Model :
S, Model Y RWD Long Range, model3, X, Roadster, TeslaRoadster, Model Y AWD Performance, Model 3 Performance, Model X 70D, MODELS, MODEL 3 (5YJ3), MODEL S, MODEL Y (5YJY), modelx, Model X, Model Y AWD Long Range, Universal, Model X, Roadster, MODEL S, model
Function :
Remote Control, APP Control, screen display
Car Fitment :
TESLA M., Tesla, Universal
Charging Port :
2 ports
Connection :
SD Card, SIM Card, TF Card, Build-in WiFi
Combination :
Built-in Microphone
Voltage :
12-36V
Warranty :
2 years, 2 Years
Product Name :
EV Charging Stations
Frequency :
50/ 60Hz
Output current :
16A/32A
Leakage protection :
RCD Type A + 6mA DC
Electric energy measurement :
Accuracy Class 1 energy meter
Display mode :
4.3 inch LCD
Plug cable length :
5m
Communication :
Ethernet/ WiFi/ 4G LTE
Protection level :
IP65
Port :
Zhongshan/Guangzhou/Shenzhen
Description
PRODUCT PARAMETERS
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
Specification
* Material: The front panel is tempered glass, which has the advantage of Anti- scratch and high-quality visual effects. The back
cover is high quality plate metal with Special Integral molding, it is safe for indoor and outdoor applications.
* OEM or ODM Available: Logo, brand, design, size, color, function, etc, customization available;
*7 inch highlighted LED touch screen: Shows live charging current, voltage, power consumption, time
* Versatile Installation wall mount or pedestal applications
Protection:
* RCD Type A＋DC 6Ma or Type B inside.
* High quality production and design standards for safe and reliable use with multiple fault protection: Overvoltage
Protection,Undervoltage Protection, Overload Protection, Short Circuit Protection, Earth leakage Protection, Ground Protection,
Over-temp Protection, Surge Protection and etc.
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
Power Specification
EU Standard
Charging Connector Type
IEC 62196-2 (Type 2)
AC Power Input Rating
1 Phase
3 Phase
230V±15%
380V±15%
AC Power Output Rating
3.5kw/16A
11kw/16A
7kw/32A
22kw/32A
7kw*2/32A*2
11kw*2/16A*2
22kw*2/32A*2
Frequency Rating
50/60 Hz
User Interface & Control
Emergency Stop Button
Yes
Plug-and-Charging
Yes
RFID Card Charging
Yes
App Charging
Yes
Ethernet Interface
Yes
Wifi Function
Yes
OCPP Protocol
OCPP 1.6
7-inch LED Touch Screen
Yes
Protection
Over Voltage Protection
Yes
Under Voltage Protection
Yes
Over Load Protection
Yes
Short Circuit Protection
Yes
Earth Leakage Protection
Yes
Ground Protection
Yes
Over-temp Protection
Yes
Surge Protection
Yes
RCD
Type A＋DC 6Ma OR TYPE B
Environmental
Storage Temperature
-40 ~ 75℃
Operating Temperature
-30 ~ 50℃
Operating Humidity
Up tp 95%, non-condensing
Altitude
≤2000m
Cooling Method
Natural Cooling
Wallbox Mechanical parameters
IP Code
IP65
Dimension(H×W×D,mm)
457×338×115
Weight
12.5kg
Charging Cable Length
≤2000m
Enclosure Material
Front-panel: Tempered Glass, Back-cover: Plate Metal
Packaging parameters
Packaging material
Professional carton
Dimension(H×W×D,mm)
530×360×135
Weight(Including Wallbox Mechanical)
13kg
Floor mounted rod(Optional)
Dimension(H×W×D,mm)
1350×200×50
Weight
9kg
Enclosure Material
Metal
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
FAQ
Q1: Can I get a lower price if I order large quantities?
A1: Yes, the larger the quantity, the lower the price.
Q2: What's the MOQ?
A2: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements.
Q3: How about your delivery time?
A3: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
Q4:What is your terms of payment?
A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5:What is the warranty?
A5: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of delivery
