Brass / Steel / Nylon Cage Self Aligning Bearing 2300 Series Single Row Double Row
Brass / Steel / Nylon Cage Self Aligning Bearing 2300 Series Single Row Double Row
Brass / Steel / Nylon Cage Self Aligning Bearing 2300 Series Single Row Double Row
Brass / Steel / Nylon Cage Self Aligning Bearing 2300 Series Single Row Double Row
Brass / Steel / Nylon Cage Self Aligning Bearing 2300 Series Single Row Double Row
Brass / Steel / Nylon Cage Self Aligning Bearing 2300 Series Single Row Double Row
Brass / Steel / Nylon Cage Self Aligning Bearing 2300 Series Single Row Double Row
Brass / Steel / Nylon Cage Self Aligning Bearing 2300 Series Single Row Double Row
Brass / Steel / Nylon Cage Self Aligning Bearing 2300 Series Single Row Double Row
Brass / Steel / Nylon Cage Self Aligning Bearing 2300 Series Single Row Double Row
Specifications
Brand Name :
Solarich
Model Number :
2300-2322K
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
$1.9-199
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000/month
Delivery Time :
10-15days
Packaging Details :
Seaworthy wooden case
Type :
Roller, cylindrical, cam, ball
Number of row :
Double Row, Single Row, Four row
Precision rating :
P0 P6 P5 P4 P2, P6, P0, P4, P5
Seals type :
Open, ZZ 2RS OPEN, RS, ZZ, 2RS
Structure :
Needle roller, spherical , cylindrical , tapered
Outside diameter :
47 - 225 mm, 51.99 - 52 mm, 5 - 3000 mm, 160 - 160.01 mm, 15 - 986 mm
Material :
Chrome Steel, carbon steel/CCR 15, Gcr15, 9Cr18
Cage :
Steel Cage, e, mb, cc, nylon. Copper alloy
Service :
OEM Service.Design Service, OEM Customized Services, Customization & OEM Service, ODM, OEM
Sample :
Available
Application :
Automotive, Machinery, Taper Roller Bearing, etc, cars
Package :
Original Package, Tube&Customized, as your requests, Industrial Package
Feature :
Original Package, Original Packing, Plastic Tube + Carton +Pallet, single box or as your requirements, Industrial Packing
Quality :
P0, Good, P6, P4, P5
Product name :
1200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
Clearance :
C3, C2, C4, C0 C2 C3 C4 C5, C0
Description

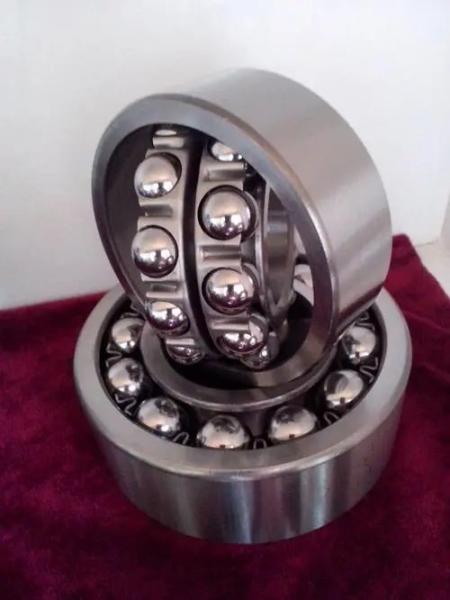

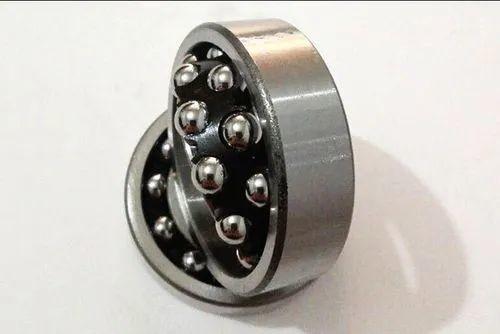

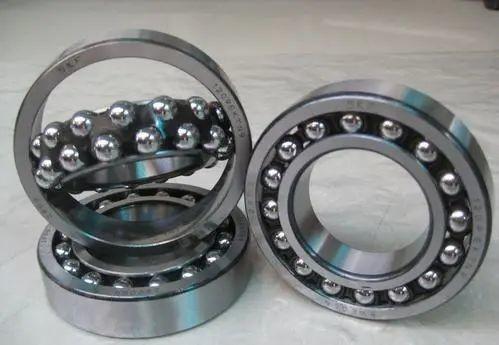

Self-aligning ball bearings

Self-aligning ball bearing is between the inner ring of two raceways and the outer ring of a spherical raceway. The center of curvature of the raceway surface of the bearing outer ring equipped with spherical ball bearings is consistent with the center of the bearing, so it has the same self-aligning function as the automatic self-aligning ball bearing. When the shaft shell is bent, it can be automatically adjusted without increasing the bearing burden Spherical roller bearings can bear radial load and two direction axial load radial load capacity is large, suitable for heavy load impact load conditions Inner circle diameter is tapered bore the bearing, it can remove the cylinder to install or use the set of bracket will be installed on the cylinder axis using steel plate stamping maintains a polyamide forming keep frame and copper alloy cage car system.

Self-aligning ball bearings have cylindrical holes and conical holes two kinds of structure, cage material has steel plate, synthetic resin and so on. The raceway of the outer ring is spherical and has automatic centering, which can compensate the errors caused by different concentricity and shaft deflection, but the relative inclination of the inner and outer rings shall not exceed 3 degrees.

Brass / Steel / Nylon Cage Self Aligning Bearing 2300 Series Single Row Double Row

Bearing No. Dimension (mm) Basic load ratings (kN) Speed ratings(rpm) Weight (Kg)
d D B rs min Grease Oil
Cr Cor
2300 10 35 17 0.6 10.1 2.15 17000 20000 0.083
2301 12 37 17 1 11.8 2.71 15000 17000 0.091
2302 15 42 17 1 12 2.9 13000 15000 0.114
2303 17 47 19 1 14.4 3.55 11000 14000 0.156
2304 20 52 21 1.1 18.1 4.7 10000 12000 0.206
2304K 20 52 21 1.1 18.1 4.7 10000 12000 0.201
2305 25 62 24 1.1 24.4 6.6 8500 10000 0.334
2305K 25 62 24 1.1 24.4 6.6 8500 10000 0.326
2306 30 72 27 1.1 31.5 8.75 7200 8500 0.496
2306K 30 72 27 1.1 31.5 8.75 7200 8500 0.485
2307 35 80 31 1.5 39.5 11.3 6300 7400 0.671
2307K 35 80 31 1.5 39.5 11.3 6300 7400 0.653
2308 40 90 33 1.5 45 13.5 5600 6600 0.918
2308K 40 90 33 1.5 45 13.5 5600 6600 0.895
2309 45 100 36 1.5 54 16.7 5000 5900 1.23
2309K 45 100 36 1.5 54 16.7 5000 5900 1.2
2310 50 110 40 2 64.5 20.2 4600 5400 1.63
2310K 50 110 40 2 64.5 20.2 4600 5400 1.59
2311 55 120 43 2 75.5 24 4200 4900 2.1
2311K 55 120 43 2 75.5 24 4200 4900 2.05
2312 60 130 46 2.1 87 28.2 3800 4500 2.59
2312K 60 130 46 2.1 87 28.2 3800 4500 2.52
2313 65 140 48 2.1 96 32.5 3600 4200 3.2
2313K 65 140 48 2.1 96 32.5 3600 4200 3.12
2314 70 150 51 2.1 109 37.5 3300 3900 3.92
2315 75 160 55 2.1 123 43 3100 3600 4.78
2315K 75 160 55 2.1 123 43 3100 3600 4.66
2316 80 170 58 2.1 128 45 2900 3400 5.65
2316K 80 170 58 2.1 128 45 2900 3400 5.51
2317 85 180 60 3 140 51.5 2700 3200 6.55
2317K 85 180 60 3 140 51.5 2700 3200 6.39
2318 90 190 64 3 152 57.5 2600 3000 7.75
2318K 90 190 64 3 152 57.5 2600 3000 7.56
2319 95 200 67 3 165 64.5 2400 2800 9.05
2319K 95 200 67 3 165 64.5 2400 2800 8.83
2320 100 215 73 3 192 79 2300 2700 11.5
2320K 100 215 73 3 192 79 2300 2700 11.2
2321 105 225 77 3 205 87 2200 2600 13.2
2322 110 240 80 3 217 94.5 2100 2400 15.8
2322K 110 240 80 3 217 94.5 2100 2400 15.4

Brass / Steel / Nylon Cage Self Aligning Bearing 2300 Series Single Row Double Row
