23144CA Series Self Aligning Bearing OEM Service Brass / Steel / Nylon Cage
23144CA Series Self Aligning Bearing OEM Service Brass / Steel / Nylon Cage
23144CA Series Self Aligning Bearing OEM Service Brass / Steel / Nylon Cage
23144CA Series Self Aligning Bearing OEM Service Brass / Steel / Nylon Cage
23144CA Series Self Aligning Bearing OEM Service Brass / Steel / Nylon Cage
23144CA Series Self Aligning Bearing OEM Service Brass / Steel / Nylon Cage
23144CA Series Self Aligning Bearing OEM Service Brass / Steel / Nylon Cage
23144CA Series Self Aligning Bearing OEM Service Brass / Steel / Nylon Cage
23144CA Series Self Aligning Bearing OEM Service Brass / Steel / Nylon Cage
23144CA Series Self Aligning Bearing OEM Service Brass / Steel / Nylon Cage
23144CA Series Self Aligning Bearing OEM Service Brass / Steel / Nylon Cage
23144CA Series Self Aligning Bearing OEM Service Brass / Steel / Nylon Cage
Specifications
Brand Name :
Solarich
Model Number :
23144CA-24032CAK
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
$1.9-199
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000/month
Delivery Time :
10-15days
Packaging Details :
Seaworthy wooden case
Type :
Roller, cylindrical, cam, ball
Number of row :
Double Row, Single Row, Four row
Precision rating :
P0 P6 P5 P4 P2, P6, P0, P4, P5
Seals type :
Open, ZZ 2RS OPEN, RS, ZZ, 2RS
Structure :
Needle roller, spherical , cylindrical , tapered
Outside diameter :
47 - 225 mm, 51.99 - 52 mm, 5 - 3000 mm, 160 - 160.01 mm, 15 - 986 mm
Material :
Chrome Steel, carbon steel/CCR 15, Gcr15, 9Cr18
Cage :
Steel Cage, e, mb, cc, nylon. Copper alloy
Service :
OEM Service.Design Service, OEM Customized Services, Customization & OEM Service, ODM, OEM
Sample :
Available
Application :
Automotive, Machinery, Taper Roller Bearing, etc, cars
Package :
Original Package, Tube&Customized, as your requests, Industrial Package
Feature :
Original Package, Original Packing, Plastic Tube + Carton +Pallet, single box or as your requirements, Industrial Packing
Quality :
P0, Good, P6, P4, P5
Product name :

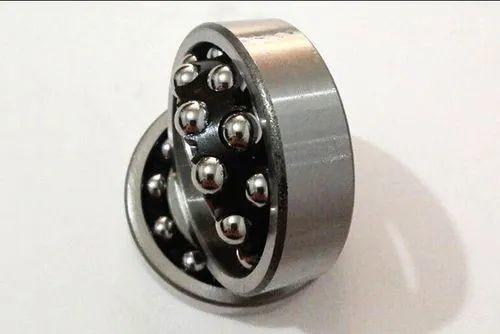

1200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
Clearance :
C3, C2, C4, C0 C2 C3 C4 C5, C0
Description

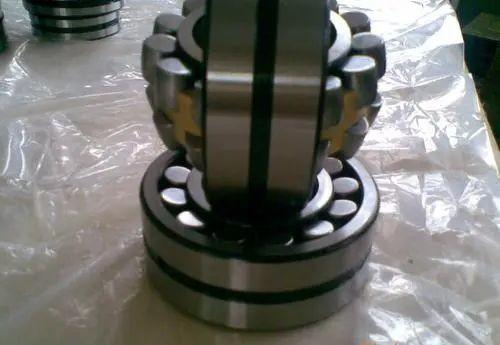

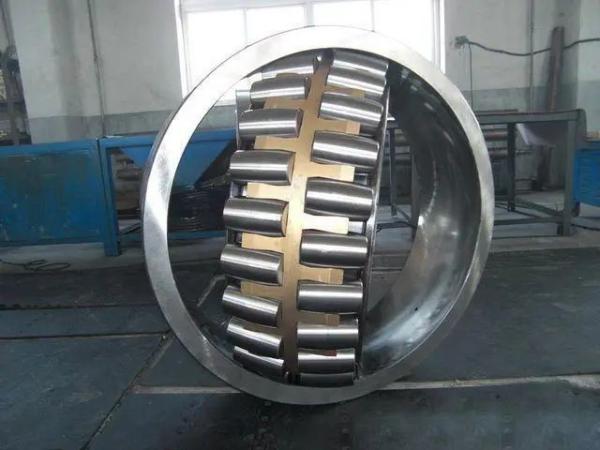

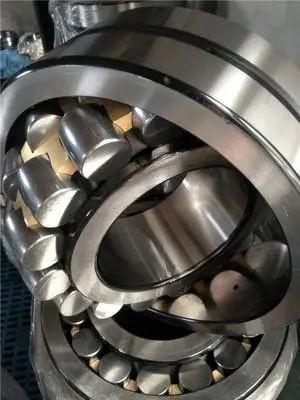

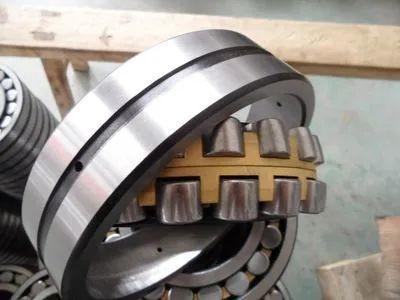

Self-aligning roller bearing

Spherical roller bearings are self-aligning roller bearings. have double row rollers, the outer ring has a shared spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis.

They are double row, self-retaining units comprising solid outer rings with a concave raceway, inner rings with a cylindrical or tapered bore and ball and cage assemblies. This ingenious structure enables it to have self-aligning performance, so it is not easily affected by the angle between the shaft and the bearing box seat on the error or the shaft bending, and is suitable for the occasions where the installation error or the shaft deflection causes the angle error. In addition to radial loads, the bearings can also withstand axial loads acting in both directions.

23144CA Series Self Aligning Bearing OEM Service Brass / Steel / Nylon Cage

Bearing NO. Principal dimensions Speed ratings(r/min) Basic load ratings Weight (kg)
d D B Grease Oil (kN) Dynamic (kN) Static
Mass
23I44CA 220 370 120 750 950 1570 2820 545
23148CA 240 400 128 670 850 1790 3220 655
23218CA 90 160 52.4 1700 2200 325 478 4.66
23218CAK 90 160 52.4 1700 2200 325 478 4.56
2322OCA 100 180 60.3 1600 2000 415 618 6.58
2322OCAK 100 180 60.3 1600 2000 415 618 6.39
23222CA 110 200 69.8 1400 1800 515 785 10.1
23222CAK 110 200 69.8 1400 1800 515 785 10
23224CA 120 215 76 1300 1700 602 940 123
23224CAK 120 215 76 1300 1700 602 940 11.9
23226CA 130 230 80 1200 1600 668 1060 145
23226CAK 130 230 80 1200 1600 668 1060 14.1
23228CA 140 250 88 1000 1400 802 1280 192
23228CAK 140 250 88 1000 1400 802 1280 19
2323OCA 150 270 96 950 1300 935 1520 24.9
2323OCAK 150 270 96 950 1300 935 1520 243
23232CA 160 290 104 900 1200 1080 1760 29.9
23232CAK 160 290 104 900 1200 1080 1760 29.7
23234CA 170 310 110 900 1200 1200 2030 38
23234CAK 170 310 110 900 1200 1200 2030 37
23236CA 180 320 112 850 1100 1280 2170 40.7
23236CAK 180 320 112 850 1100 1280 2170 403
23238CA 190 340 120 800 1100 1450 2490 473
23238CAK 190 340 120 800 1100 1450 2490 46.1
23240CA 200 360 128 750 1000 1610 2790 53.4
23240CAK 200 360 128 750 1000 1610 2790 52.4
24024CA 120 180 60 1500 2000 380 675 5.3
24024CAK 120 180 60 1500 2000 380 675 5.3
24026CA 130 200 69 1400 1800 472 852 8
24O26CAK 130 200 69 1400 1800 472 852 8
24O28CA 140 210 69 1300 1700 488 895 8.5
24O28CAK 140 210 69 1300 1700 488 895 8.5
24O30CA 150 225 75 1200 1500 570 1070 9.8
24030CAK 150 225 75 1200 1500 570 1070 9.8
24O32CA 160 240 80 1100 1400 652 1230 132
24O32CAK 160 240 80 1100 1400 652 1230 132

23144CA Series Self Aligning Bearing OEM Service Brass / Steel / Nylon Cage
