Double Row / Four Row Metric Tapered Roller Bearing Customization 32005X/Q
Double Row / Four Row Metric Tapered Roller Bearing Customization 32005X/Q
Double Row / Four Row Metric Tapered Roller Bearing Customization 32005X/Q
Double Row / Four Row Metric Tapered Roller Bearing Customization 32005X/Q
Double Row / Four Row Metric Tapered Roller Bearing Customization 32005X/Q
Double Row / Four Row Metric Tapered Roller Bearing Customization 32005X/Q
Double Row / Four Row Metric Tapered Roller Bearing Customization 32005X/Q
Double Row / Four Row Metric Tapered Roller Bearing Customization 32005X/Q
Double Row / Four Row Metric Tapered Roller Bearing Customization 32005X/Q
Double Row / Four Row Metric Tapered Roller Bearing Customization 32005X/Q
Specifications
Brand Name :
Solarich
Model Number :
32005X/Q， 32012X/QCL7C，320/32X/Q
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
1000000
Delivery Time :
10-15days
Packaging Details :
Original Package, Tube&Customized, as your requests, Industrial Package
Number of row :
single row , double row , four row
Precision rating :
P0 P6 P5 P4 P2, P6, P0, P4, P5
Type :
roller
Structure :
Taper
Seals type :
Open, ZZ 2RS OPEN, RS, ZZ, 2RS
Material :
Chrome Steel, bearing steel, stainless steel, AISI440C, Gcr15
Service :
OEM Service.Design Service, OEM Customized Services, Customization & OEM Service, ODM, OEM
Application :
Automotive, Machinery, Taper Roller Bearing, etc, cars
Cage :
Steel Cage, e, mb, cc, nylon. Copper alloy
Outside diameter :
47 - 225 mm, 51.99 - 52 mm, 5 - 3000 mm, 160 - 160.01 mm, 15 - 986 mm
Clearance :
C3, C4, C2, CO, C1 C2 0 C3 C4 C5
Vibration :
V1 V2 V3 V4, Z1V1 Z2V2 Z3V3 Z4V4
Feature :
Long Life, durable, 2.9921x5.1969x1.5354"
Package :
Original Package, Tube&Customized, as your requests, Industrial Package
Stock :
50000pcs, Ready Goods, 200 pieces, large, Inch Bearing
Description

Tapered roller bearing

Tapered roller bearing refers to radial thrust type rolling bearing with tapered roller rolling body. There are two kinds of small cone Angle and large cone Angle. Small cone Angle mainly bear radial load mainly radial and axial combined load, often in double use, reverse installation, inner and outer seat ring can be installed separately, radial and axial clearance can be adjusted during installation and use; The large cone Angle is mainly used to bear the combined axial and radial loads mainly based on axial loads. It is generally not used to bear pure axial loads alone, but can be used to bear pure radial loads when it is configured (the same end is installed relatively).

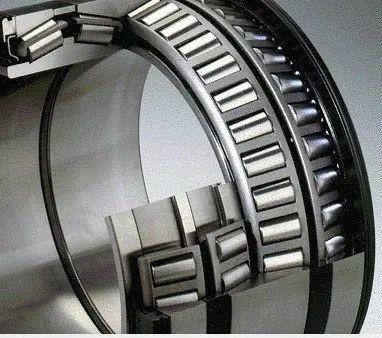

Tapered roller bearings belong to separation bearings, bearing inner and outer rings have tapered raceway. The bearings can be divided into single row, double row and four row tapered roller bearings according to the number of roller rows. Single row tapered roller bearings can withstand radial load and single direction axial load. When the bearing bears radial load, there will be an axial component, so when another bearing that can withstand the axial force in the opposite direction is needed to balance it.

The structure, assembly dimension accuracy and rotation accuracy of inch tapered roller bearings are different from those of metric bearings .It is mainly used for imported machinery or industries with special needs.

The inch tapered roller bearing refers to the tapered roller bearing whose overall dimensions are measured in inches , originated from Britain and the United States.

Double Row / Four Row Metric Tapered Roller Bearing Customization 32005X/QDouble Row / Four Row Metric Tapered Roller Bearing Customization 32005X/QDouble Row / Four Row Metric Tapered Roller Bearing Customization 32005X/QDouble Row / Four Row Metric Tapered Roller Bearing Customization 32005X/Q

Bearing No. Dimensions (mm) Basic Load Rating (KN) Pu Rotation Speed (rpm) Weight (Kg)
di D B Cr Cor Speed Grade Speed Limit
32064X 320 480 100 1540 3100 255 850 1100 64.0
32060X 300 460 100 1540 3000 250 900 1200 58.0
32056X 280 420 87 1210 2360 200 1000 1300 40.5
32052X 260 400 87 1170 2200 190 1100 1400 40.0
32048X 240 360 76 935 1800 160 1200 1600 27.5
32044X 220 340 76 897 1660 150 1300 1700 25.5
32040X 200 310 70 748 1370 127 1400 1900 19.5
32038X 190 290 64 660 1200 112 1500 2000 15.0
32036X 180 280 64 644 1160 110 1600 2200 14.5
32034X 170 260 57 512 915 90 1700 2200 10.5
32032X 160 240 51 429 780 78 1800 2400 7.75
32030X 150 225 48 369 655 65.5 2000 2600 6.35
32028X 140 210 45 330 585 58.5 2200 2800 5.25
32026X 130 200 45 314 540 55 2200 3000 4.95
32024X 120 180 38 242 415 44 2400 3400 3.25
32022X/Q 110 170 38 233 390 42.5 2600 3600 3.05
32021X/Q 105 160 35 201 335 37.5 2800 3800 2.40
32022X/Q 110 170 38 233 390 42.5 2600 3600 3.05
32021X/Q 105 160 35 201 335 37.5 2800 3800 2.40
32019X/Q 95 145 32 168 270 30.5 3200 4300 1.80
32018X/Q 90 140 32 168 270 31 3200 4300 1.75
32016X/Q 80 125 29 138 216 24.5 3600 5000 1.30
32015X/Q 75 115 25 122 163 18.6 4300 5300 0.90
32014X/Q 70 110 25 116 153 17.3 4500 5600 0.84
32012X/QCL7C 60 95 23 95 122 13.4 5300 6700 0.59
32010X/QCL7C 50 80 20 69.5 88 9.65 6300 8000 0.37
3201OX/Q 50 80 20 69.5 88 9.65 6300 8000 0.37
33209/Q 45 85 32 108 143 16.3 5300 7500 0.82
32008XTN9/Q 40 68 19 60 71 7.65 7500 9500 0.27
32008X/Q 40 68 19 60 71 7.65 7500 9500 0.27
32008/38X/Q 38 68 19 60 71 7.65 7500 10000 0.28
320/32X/Q 32 58 17 42.5 46.5 4.8 9000 11000 0.19
32006X/Q 30 55 17 40.5 44 4.55 10000 12000 0.17
320/28X/Q 28 52 16 36.5 38 4 10000 13000 0.15
32005X/Q 25 47 15 31 32.5 3.25 12000 14000 0.11
320/22X 22 44 15 25.1 29 2.85 11000 15000 0.10
32004X/Q 20 42 15 28 27 2.7 13000 16000 0.097

Double Row / Four Row Metric Tapered Roller Bearing Customization 32005X/Q
