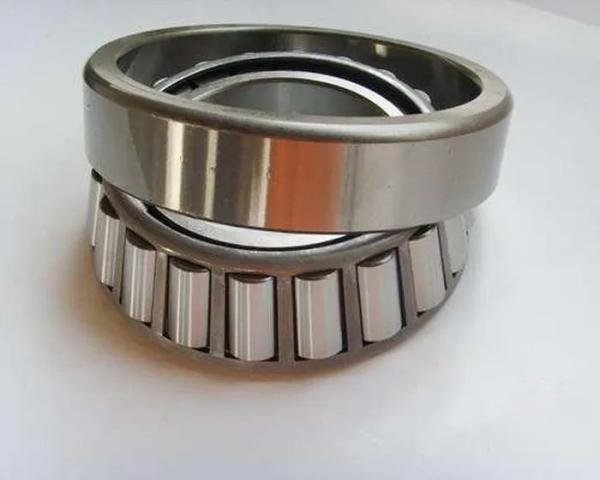

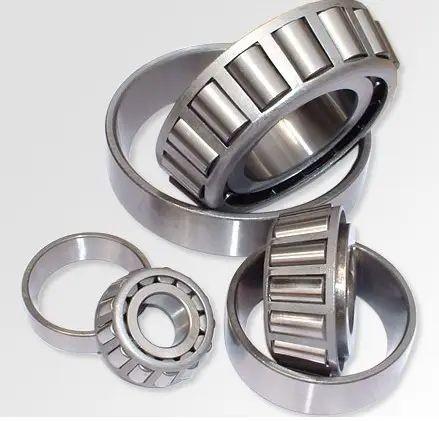

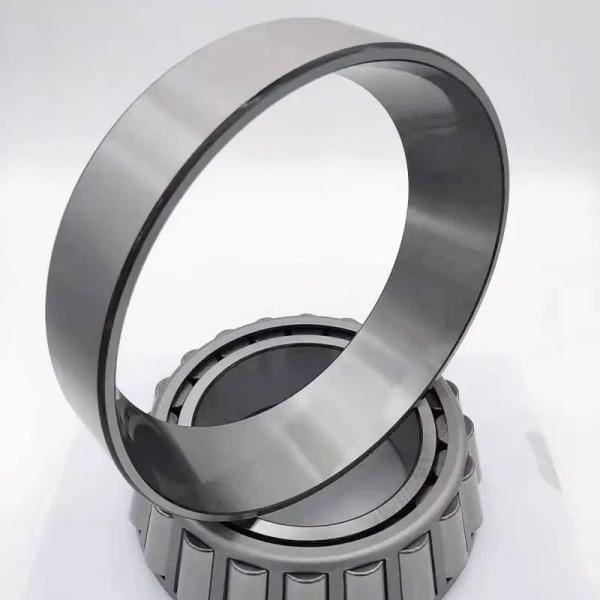

Double Row / Four Row Metric Size Tapered Roller Bearing 33122
Double Row / Four Row Metric Size Tapered Roller Bearing 33122
Double Row / Four Row Metric Size Tapered Roller Bearing 33122
Double Row / Four Row Metric Size Tapered Roller Bearing 33122
Double Row / Four Row Metric Size Tapered Roller Bearing 33122
Double Row / Four Row Metric Size Tapered Roller Bearing 33122
Double Row / Four Row Metric Size Tapered Roller Bearing 33122
Double Row / Four Row Metric Size Tapered Roller Bearing 33122
Double Row / Four Row Metric Size Tapered Roller Bearing 33122
Double Row / Four Row Metric Size Tapered Roller Bearing 33122
Specifications
Brand Name :
Solarich
Model Number :
33122，33118TN9/Q，33116/Q
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
1000000
Delivery Time :
10-15days
Packaging Details :
Original Package, Tube&Customized, as your requests, Industrial Package
Number of row :
single row , double row , four row
Precision rating :
P0 P6 P5 P4 P2, P6, P0, P4, P5
Type :
roller
Structure :
Taper
Seals type :
Open, ZZ 2RS OPEN, RS, ZZ, 2RS
Material :
Chrome Steel, bearing steel, stainless steel, AISI440C, Gcr15
Service :
OEM Service.Design Service, OEM Customized Services, Customization & OEM Service, ODM, OEM
Application :
Automotive, Machinery, Taper Roller Bearing, etc, cars
Cage :
Steel Cage, e, mb, cc, nylon. Copper alloy
Outside diameter :
47 - 225 mm, 51.99 - 52 mm, 5 - 3000 mm, 160 - 160.01 mm, 15 - 986 mm
Clearance :
C3, C4, C2, CO, C1 C2 0 C3 C4 C5
Vibration :
V1 V2 V3 V4, Z1V1 Z2V2 Z3V3 Z4V4
Feature :
Long Life, durable, 2.9921x5.1969x1.5354"
Package :
Original Package, Tube&Customized, as your requests, Industrial Package
Stock :
50000pcs, Ready Goods, 200 pieces, large, Inch Bearing
Description

Tapered roller bearing

Tapered roller bearing refers to radial thrust type rolling bearing with tapered roller rolling body. There are two kinds of small cone Angle and large cone Angle. Small cone Angle mainly bear radial load mainly radial and axial combined load, often in double use, reverse installation, inner and outer seat ring can be installed separately, radial and axial clearance can be adjusted during installation and use; The large cone Angle is mainly used to bear the combined axial and radial loads mainly based on axial loads. It is generally not used to bear pure axial loads alone, but can be used to bear pure radial loads when it is configured (the same end is installed relatively).

Tapered roller bearings belong to separation bearings, bearing inner and outer rings have tapered raceway. The bearings can be divided into single row, double row and four row tapered roller bearings according to the number of roller rows. Single row tapered roller bearings can withstand radial load and single direction axial load. When the bearing bears radial load, there will be an axial component, so when another bearing that can withstand the axial force in the opposite direction is needed to balance it.

The structure, assembly dimension accuracy and rotation accuracy of inch tapered roller bearings are different from those of metric bearings .It is mainly used for imported machinery or industries with special needs.

The inch tapered roller bearing refers to the tapered roller bearing whose overall dimensions are measured in inches , originated from Britain and the United States.

Double Row / Four Row Metric Size Tapered Roller Bearing 33122Double Row / Four Row Metric Size Tapered Roller Bearing 33122Double Row / Four Row Metric Size Tapered Roller Bearing 33122Double Row / Four Row Metric Size Tapered Roller Bearing 33122

Bearing No. Dimensions (mm) Basic Load Rating (KN) Pu Rotation Speed (rpm) Weight (Kg)
di D B Cr Cor Speed Grade Speed Limit
33122 110 180 56 369 630 67 2600 3400 5.55
33118TN9/Q 90 150 45 251 390 43 3000 4300 3.10
33118/Q 90 150 45 251 390 43 3000 4300 3.10
33117/Q 85 140 41 220 340 38 3400 4500 2.45
33116TN9/Q 80 130 37 179 280 32.5 3600 4800 1.90
33116/Q 80 130 37 179 280 32.5 3600 4800 1.90
33115/Q 75 125 37 176 265 31.5 3800 5000 1.80
33114/Q 70 120 37 172 250 30 4000 5300 1.70
33113/Q 65 110 34 142 208 24 4300 5600 1.30
33112/Q 60 100 30 134 170 19.6 5300 6300 0.92
33111/Q 55 95 30 110 156 17.6 5000 6700 0.86
33110/Q 50 85 26 100 122 13.4 6000 7500 0.59
33109/Q 45 80 26 96.5 114 12.9 6700 8000 0.56
33108/Q 40 75 26 91.5 104 11.4 7000 9000 0.51

Double Row / Four Row Metric Size Tapered Roller Bearing 33122
