2200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
2200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
2200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
2200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
2200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
2200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
2200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
2200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
2200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
2200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
Specifications
Brand Name :
Solarich
Model Number :
2200-2222K
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
$1.9-199
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000/month
Delivery Time :
10-15days
Packaging Details :
Seaworthy wooden case
Type :
Roller, cylindrical, cam, ball
Number of row :
Double Row, Single Row, Four row
Precision rating :
P0 P6 P5 P4 P2, P6, P0, P4, P5
Seals type :
Open, ZZ 2RS OPEN, RS, ZZ, 2RS
Structure :
Needle roller, spherical , cylindrical , tapered
Outside diameter :
47 - 225 mm, 51.99 - 52 mm, 5 - 3000 mm, 160 - 160.01 mm, 15 - 986 mm
Material :
Chrome Steel, carbon steel/CCR 15, Gcr15, 9Cr18
Cage :
Steel Cage, e, mb, cc, nylon. Copper alloy
Service :
OEM Service.Design Service, OEM Customized Services, Customization & OEM Service, ODM, OEM
Sample :
Available
Application :
Automotive, Machinery, Taper Roller Bearing, etc, cars
Package :
Original Package, Tube&Customized, as your requests, Industrial Package
Feature :
Original Package, Original Packing, Plastic Tube + Carton +Pallet, single box or as your requirements, Industrial Packing
Quality :
P0, Good, P6, P4, P5
Product name :
1200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
Clearance :
C3, C2, C4, C0 C2 C3 C4 C5, C0
Description

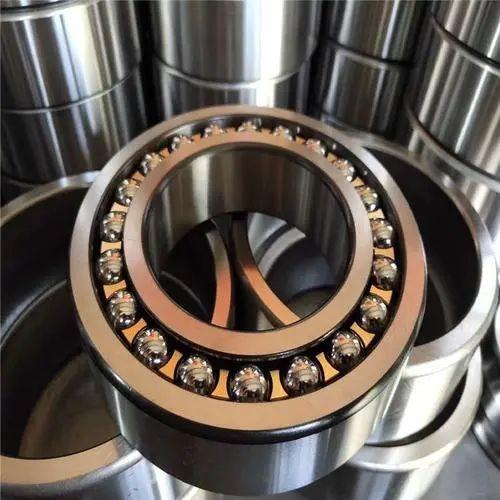

Self-aligning ball bearings

Self-aligning ball bearing is between the inner ring of two raceways and the outer ring of a spherical raceway. The center of curvature of the raceway surface of the bearing outer ring equipped with spherical ball bearings is consistent with the center of the bearing, so it has the same self-aligning function as the automatic self-aligning ball bearing. When the shaft shell is bent, it can be automatically adjusted without increasing the bearing burden Spherical roller bearings can bear radial load and two direction axial load radial load capacity is large, suitable for heavy load impact load conditions Inner circle diameter is tapered bore the bearing, it can remove the cylinder to install or use the set of bracket will be installed on the cylinder axis using steel plate stamping maintains a polyamide forming keep frame and copper alloy cage car system.

Self-aligning ball bearings have cylindrical holes and conical holes two kinds of structure, cage material has steel plate, synthetic resin and so on. The raceway of the outer ring is spherical and has automatic centering, which can compensate the errors caused by different concentricity and shaft deflection, but the relative inclination of the inner and outer rings shall not exceed 3 degrees.

2200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing

Bearing No. Dimension (mm) Basic load ratings (kN) Speed ratings(rpm) Weight (Kg)
d D B rs min Grease Oil
Cr Cor
2200 10 30 14 0.6 7.3 1.59 19000 23000 0.047
2201 12 32 14 0.6 7.6 1.73 17000 20000 0.051
2202 15 35 14 0.6 7.7 1.85 15000 18000 0.06
2203 17 40 16 0.6 9.8 2.41 13000 16000 0.088
2204 20 47 18 1 12.6 3.3 12000 14000 0.14
2204K 20 47 18 1 12.6 3.3 12000 14000 0.137
2205 25 52 18 1 12.3 3.45 10000 12000 0.157
2205K 25 52 18 1 12.3 3.45 10000 12000 0.153
2206 30 62 20 1 15.2 4.5 8600 10000 0.256
2206K 30 62 20 1 15.2 4.5 8600 10000 0.25
2207 35 72 23 1.1 21.5 6.6 7500 8800 0.392
2207K 35 72 23 1.1 21.5 6.6 7500 8800 0.382
2208 40 80 23 1.1 22.3 7.35 6700 7900 0.493
2208K 40 80 23 1.1 22.3 7.35 6700 7900 0.482
2209 45 85 23 1.1 23.2 8.15 6000 7100 0.54
2209K 45 85 23 1.1 23.2 8.15 6000 7100 0.528
2210 50 90 23 1.1 23.2 8.45 5500 6400 0.583
2210K 50 90 23 1.1 23.2 8.45 5500 6400 0.569
2211 55 100 25 1.5 26.5 9.9 5000 5800 0.787
221 IK 55 100 25 1.5 26.5 9.9 5000 5800 0.769
2212 60 110 28 1.5 34 12.6 4600 5400 1.08
2212K 60 110 28 1.5 34 12.6 4600 5400 1.06
2213 65 120 31 1.5 43.5 16.4 4200 5000 1.44
2213K 65 120 31 1.5 43.5 16.4 4200 5000 1.41
2214 70 125 31 1.5 44 17.1 3900 4600 1.52
2215 75 130 31 1.5 44.5 17.8 3700 4300 1.58
2215K 75 130 31 1.5 44.5 17.8 3700 4300 1.54
2216 80 140 33 2 48.5 19.9 3400 4000 1.99
2216K 80 140 33 2 48.5 19.9 3400 4000 1.95
2217 85 150 36 2 58 23.6 3200 3800 2.54
2217K 85 150 36 2 58 23.6 3200 3800 2.49
2218 90 160 40 2 70 28.7 3100 3600 3.19
2218K 90 160 40 2 70 28.7 3100 3600 3.12
2219 95 170 43 2.1 83.5 34.5 2900 3400 3.89
2219K 95 170 43 2.1 83.5 34.5 2900 3400 3.8
2220 100 180 46 2.1 94 38.5 2700 3200 4.65
2220K 100 180 46 2.1 94 38.5 2700 3200 4.54
2221 105 190 50 2.1 109 45 2600 3100 6.07
2222 110 200 53 2.1 124 51.5 2500 2900 7.1
2222K 110 200 53 2.1 124 51.5 2500 2900 6.94

2200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
