21308CA series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Roller Bearing
21308CA series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Roller Bearing
21308CA series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Roller Bearing
21308CA series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Roller Bearing
21308CA series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Roller Bearing
21308CA series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Roller Bearing
21308CA series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Roller Bearing
21308CA series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Roller Bearing
21308CA series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Roller Bearing
21308CA series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Roller Bearing
21308CA series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Roller Bearing
21308CA series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Roller Bearing
Specifications
Brand Name :
Solarich
Model Number :
21308CA-21322CAK
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
$1.9-199
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000/month
Delivery Time :
10-15days
Packaging Details :
Seaworthy wooden case
Type :
Roller, cylindrical, cam, ball
Number of row :
Double Row, Single Row, Four row
Precision rating :
P0 P6 P5 P4 P2, P6, P0, P4, P5
Seals type :
Open, ZZ 2RS OPEN, RS, ZZ, 2RS
Structure :
Needle roller, spherical , cylindrical , tapered
Outside diameter :
47 - 225 mm, 51.99 - 52 mm, 5 - 3000 mm, 160 - 160.01 mm, 15 - 986 mm
Material :
Chrome Steel, carbon steel/CCR 15, Gcr15, 9Cr18
Cage :
Steel Cage, e, mb, cc, nylon. Copper alloy
Service :
OEM Service.Design Service, OEM Customized Services, Customization & OEM Service, ODM, OEM
Sample :
Available
Application :
Automotive, Machinery, Taper Roller Bearing, etc, cars
Package :
Original Package, Tube&Customized, as your requests, Industrial Package
Feature :
Original Package, Original Packing, Plastic Tube + Carton +Pallet, single box or as your requirements, Industrial Packing
Quality :
P0, Good, P6, P4, P5
Product name :
1200 series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Ball Bearing
Clearance :
C3, C2, C4, C0 C2 C3 C4 C5, C0
Description

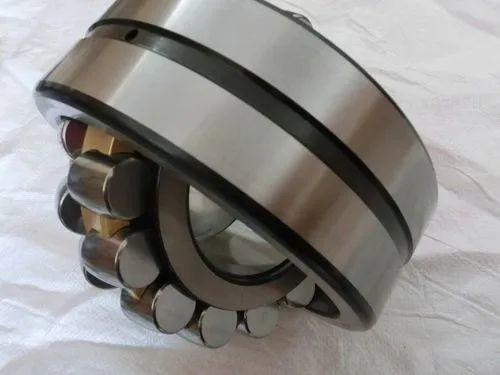

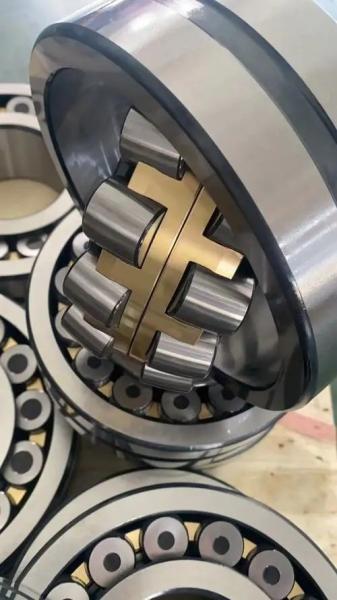

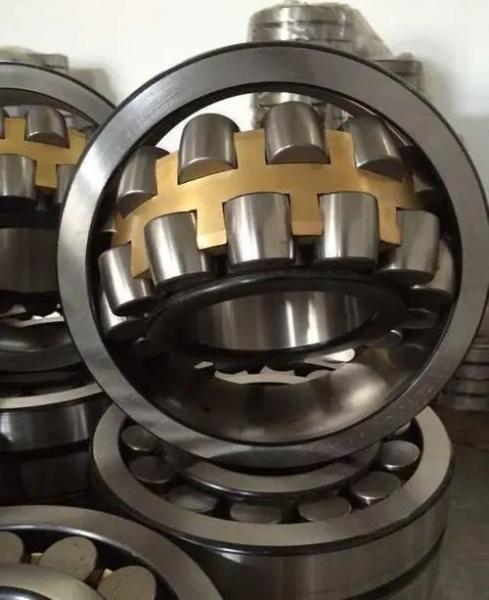

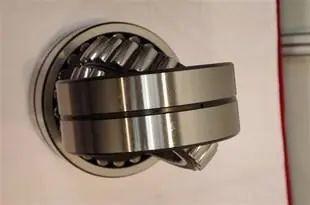

Self-aligning roller bearing

Spherical roller bearings are self-aligning roller bearings. have double row rollers, the outer ring has a shared spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis.

They are double row, self-retaining units comprising solid outer rings with a concave raceway, inner rings with a cylindrical or tapered bore and ball and cage assemblies. This ingenious structure enables it to have self-aligning performance, so it is not easily affected by the angle between the shaft and the bearing box seat on the error or the shaft bending, and is suitable for the occasions where the installation error or the shaft deflection causes the angle error. In addition to radial loads, the bearings can also withstand axial loads acting in both directions.

21308CA series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Roller Bearing

Bearing NO. Principal dimensions Speed ratings(r/min) Basic load ratings Weight (kg)
d D B Grease Oil (kN) Dynamic (kN) Static
Mass
2I308CA 40 90 23 3600 4500 85 96.2 0.72
21308CAK 40 90 23 3600 4500 85 962 0.62
21309CA 45 100 25 3200 4000 100 115 1
21309CAK 45 100 25 3200 4000 100 115 0.9
21310CA 50 110 27 2800 3800 120 140 1275
21310CAK 50 110 27 2800 3800 120 140 1.175
21311CA 55 120 29 2600 5400 142 170 1.625
21311CAK 55 120 29 2600 5400 142 170 1525
2I3I2CA 60 130 31 2400 3200 162 195 2.2
21312CAK 60 130 31 2400 3200 162 195 2.1
21313CA 65 140 33 2200 3000 182 228 2.6
21313CAK 65 140 33 2200 3000 182 228 2.5
21314CA 70 150 35 2000 2800 212 268 3
213I4CAK 70 150 35 2000 2800 212 268 2.9
213I5CA 75 160 37 1900 2600 238 302 3.6
2I3I5CAK 75 160 37 1900 2600 238 302 3.5
2I3I6CA 80 170 39 1800 2400 260 332 4.47
213I6CAK 80 170 39 1800 2400 260 332 4.2
2B17CA 85 180 41 1700 2200 298 385 5
21317CAK 85 180 41 1700 2200 298 385 4.8
21318CA 90 190 43 1600 2200 320 420 5.8
213I8CAK 90 190 43 1600 2200 320 420 5.6
213I9CA 95 200 45 1700 2200 355 485 7.2
2I3I9CAK 95 200 45 1700 2200 355 485 7
21320CA 100 215 47 1600 2000 385 530 8.8
21320CAK 100 215 47 1600 2000 385 530 8.6
21322CA 110 240 50 1400 1800 460 635 11.4
21322CAK 110 240 50 1400 1800 460 635 11.6

21308CA series single Row Double Row Brass/Steel/Nylon Cage Self-Aligning Roller Bearing
