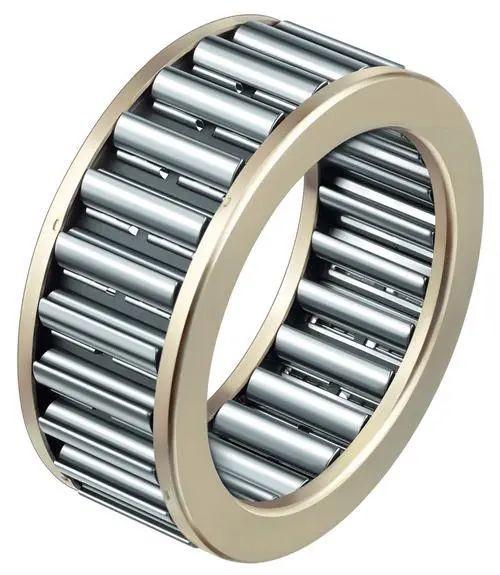

Bearing Roller Needle With Inner Ring For Tractor Model 1845 1845B 1845C 1845S
Bearing Roller Needle With Inner Ring For Tractor Model 1845 1845B 1845C 1845S
Bearing Roller Needle With Inner Ring For Tractor Model 1845 1845B 1845C 1845S
Bearing Roller Needle With Inner Ring For Tractor Model 1845 1845B 1845C 1845S
Bearing Roller Needle With Inner Ring For Tractor Model 1845 1845B 1845C 1845S
Bearing Roller Needle With Inner Ring For Tractor Model 1845 1845B 1845C 1845S
Bearing Roller Needle With Inner Ring For Tractor Model 1845 1845B 1845C 1845S
Bearing Roller Needle With Inner Ring For Tractor Model 1845 1845B 1845C 1845S
Bearing Roller Needle With Inner Ring For Tractor Model 1845 1845B 1845C 1845S
Bearing Roller Needle With Inner Ring For Tractor Model 1845 1845B 1845C 1845S
Specifications
Brand Name :
Solarich
Model Number :
NKI 5/16 TN, NKI 25/20, NKI 35/30, NA 6911, NKI 95/36
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
$1.9-199
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000/month
Delivery Time :
10-15days
Packaging Details :
Seaworthy wooden case
Type :
Needle bearing
Structure :
Needle roller
Service :
OEM Service.Design Service, OEM Customized Services, Customization & OEM Service, ODM, OEM
Application :
Automotive, Machinery, Taper Roller Bearing, etc, cars
Cage :
Steel Cage, e, mb, cc, nylon. Copper alloy
Feature :
Long Life, durable
Package :
Original Package, Tube&Customized, as your requests, Industrial Package
Seals type :
Open, ZZ 2RS OPEN, RS, ZZ, 2RS
Precision rating :
P0 P6 P5 P4 P2, P6, P0, P4, P5
Outside diameter :
47 - 225 mm, 51.99 - 52 mm, 5 - 3000 mm, 160 - 160.01 mm, 15 - 986 mm
Description

Needle bearing

Needle bearing is a cylindrical roller bearing, relative to its diameter, the roller is both thin and long this roller called needle although has a smaller section, bearing still has a higher load bearing capacity, needle bearing is equipped with thin and long roller (roller diameter D 5mm,L/D 2.5,L is the length of roller), so the radial structure is compact, and its inner diameter size and load capacity are the same as other types of bearings, while the outer diameter is the smallest, especially suitable for the radial installation size of the support structure is limited .

Shaft Diameter Bearing No. Boundary Dimensions Basic Load Ratings Limiting Speed
d F D B r(s) C Co Oil
mm mm min. N rpm
5 NKI5/12TN 5 8 15 12 0.3 3950 4100 32000
NKI 5/16 TN 5 8 .15 16 0.3 5100 5800 32000
6 NKI&/12TN 6 9 16 12 0.3 4500 5000 31000
NKI6/16 TN 6 9 16 16 0.3 5900 7100 31000
NKIS6TN 6 10 19 13 0.3 5800 6000 29000
7 NKI7/12TN 7 10 17 12 0.3 4750 5500 29000
NKI7/16TN 7 10 17 16 0.3 6200 7800 29000
NKIS7TN 7 12 22 16 0.6 9600 10400 26000
8 NKIS8 8 14 25 16 0.6 14400 13800 24000
9 NKI9/12 9 12 19 12 0.3 6400 7100 27000
NKI9/16 9 12 19 16 0.3 9000 11000 27000
NKIS9 9 15 26 16 0.6 14400 14000 23000
10 NK110/16 10 14 22 16 0.3 10100 11500 25000
NK110/20 10 14 22 20 0.3 12800 15600 25000
INKIS10 10 16 28 16 0.6 15700 15800 22000
NA 4900 10 14 22 13 0.3 8500 9200 25000
12 NK112/16 12 16 24 16 0.3 11300 13900 23000
NK112/20 12 16 24 20 0.3 14400 18800 23000
INKIS12 12 18 30 16 0.6 16800 17700 21000
NA 4901 12 16 24 13 0.3 9400 10900 23000
NA 6901 12 16 24 22 0.3 16000 21600 23000
15 NK115/16 15 19 27 16 0.3 13000 17400 22000
NK115/20 15 19 27 20 0.3 16500 23600 22000
INKIS 15 15 22 35 20 0.6 24500 28000 18000
NA 4902 15 20 28 13 0.3 10600 13600 21000
NA 6902 15 20 28 23 0.3 17300 25500 21000
17 NK117/16 17 21 29 16 0.3 13500 18700 21000
NK117/20 17 21 29 20 0.3 17100 25500 21000
NKIS17 17 24 37 20 0.6 26000 31000 17000
NA 4903 17 22 30 13 0.3 11000 14600 20000
NA 6903 17 22 30 23 0.3 18600 29000 20000
20 NKI 20/16 20 24 32 16 0.3 15000 22300 18000
NKI 20/20 20 24 32 20 0.3 19000 30500 18000
NKIS20 20 28 42 20 0.6 28500 36500 15000
NA 4904 20 25 37 17 0.3 21000 25500 17000
NA 6904 20 25 37 30 0.3 36000 51000 17000
22 NKI 22/16 22 26 34 16 0.3 15300 23600 17000
NKI 22/20 22 26 34 20 0.3 19400 32000 17000
NA 49/22 22 28 39 17 0.3 22800 29500 15000
NA 69/22 22 28 39 30 0.3 37500 55000 15000
25 NKI 25/20 25 29 38 20 0.3 21900 34000 15000
NKI 25/30 25 29 38 30 0.3 32500 57000 15000
NKIS25 25 32 47 22 0.6 33500 43500 13000
NA 4905 25 30 42 17 0.3 23600 31500 14000
NA 6905 25 30 , 42 30 0.3 29000 59000 14000
28 NKI 28/20 28 32 42 20 0.3 23100 37500 14000
NKI 28/30 28 32 42 30 0.3 34500 63000 14000
NA 49/28 28 32 45 17 0.3 24400 33500 14000
NA 69/28 28 32 45 30 0.3 40500 63000 14000
30 NKI 30/20 30 35 45 20 0.3 24300 41500 13000
NKI 30/30 30 35 45 30 0.3 36500 69000 13000
NKIS 30 30 37 52 22 0.6 36500 50000 12000
NA 4906 30 35 47 17 0.3 25000 35500 13000
NA 6906 30 35 47 30 0.3 43500 71000 13000
32 NKI 32/20 32 37 47 2b 0.3 24900 43500 12000
NKI 32/30 32 37 47 30 0.3 37000 73000 12000
NA 49/32 32 40 52 20 0.6 30500 47500 11000
NA 69/32 32 40 52 36 0.6 47000 82000 11000
35 NKI 35/20 35 40 50 20 0.3 26000 47000 11000
NKI 35/30 35 40 50 30 0.3 39000 79000 11000
NKIS 35 35 43 58 22 0.6 39000 57000 10000
NA 4907 35 42 55 20 0.6 31500 50000 11000
NA 6907 35 42 55 36 0.6 48000 86000 11000
38 NKI 38/20 38 43 53 20 0.3 27000 51000 11000
NKI 38/30 38 43 53 30 0.3 40500 85000 11000
40 NKI 40/20 40 45 55 20 0.3 27500 53000 10000
NKI 40/30 40 45 55 30 0.3 41000 88000 10000
NKIS 40 40 50 65 22 1 42500 67000 9000
NA 4908 40 48 62 22 0.6 43000 67000 9000
NA 6908 40 48 62 40 0.3 66000 116000 9000
42 NKI 42/20 42 47 57 20 0.3 28500 56000 10000
NKI 42/30 42 47 57 30 0.3 43000 94000 10000
45 NKI 45/25 45 50 62 25 0.6 38000 74000 9000
NKI 45/35 45 50 62 35 0.6 50000 106000 9000
NKIS 45 45 55 72 22 1 45000 74000 8000
NA 4909 45 52 68 22 0.6 45000 73000 8500
NA 6909 45 52 68 40 0.6 69000 127000 8500
50 NKI 50/25 50 55 68 25 0.6 40000 82000 8500
NKI 50/35 50 55 68 35 0.6 53000 118000 8500
NKIS 50 50 60 80 28 1.1 63000 98000 7500
NA 4910 50 58 72 22 0.6 47000 80000 8000
NA 6910 50 58 72 40 0.6 73000 139000 8000
55 NKI 55/25 55 60 72 25 0.6 42000 90000 7500
NKI 55/35 55 60 72 35 0.6 56000 130000 7500
NKIS 55 55 65 85 28 1.1 67000 108000 7000
NA 4911 55 63 80 25 1 58000 100000 7000
NA 6911 55 63 80 45 1 90000 176000 7000
60 NKI 60/25 60 68 25 0.6 43500 89000 7000
NKI 60/35 60 68 82 35 0.6 62000 132 7000
NKIS 60 60 70 90 28 1.1 68000 113000
NA 4912 60 68 85 25 1 60000 108000 6500
NA 6912 60 68 85 45 1 94000 191000 6500
65 NKI 65/25 65 73 90 25 1 53000 100000 6500
NKI 65/35 65 73 90 35 1 75000 156000 6500
NKIS 65 65 75 95 28 1.1 71000 123000 6000
NA 4913 65 72 90 25 1 61000 112000 6500
NA 6913 65 72 90 45 1 95000 198000 6500
70 NKI 70/25 70 80 95 25 1 56000 119000 6000
NKI 70/35 70 80 95 35 1 78000 184000 6000
NKIS70 70 80 100 28 1.1 75000 133000 5500
NA 4914 70 80 100 30 1 84000 156000 5500
NA 6914 70 80 100 54 1 128000 265000 5500
75 NKI 75/25 75 85 105 25 1 69000 123000 5500
NKI 75/35 75 85 105 35 1 98000 193000 5500
NA 4915 75 85 105 30 1 86000 162000 5500
NA 6915 75 85 105 54 1 130000 275000 5500
80 NKI 80/25 80 90 110 25 1 72000 132000 5000
NKI 80/35 80 90 110 35 1 103000 208000 5000
NA 4916 80 90 110 30 1 89000 174000 5000
NA 6916 80 90 110 54 1 135000 300000 5000
85 NKI 85/26 85 95 115 26 1 73000 137000 4800
NKI 85/36 85 95 115 36 1 107000 223000 4800
NA 4917 85 100 120 35 1.1 111000 237000 4600
NA 6917 85 100 120 63 1.1 166000 400000 4600
90 NKI 90/26 90 100 120 26 1 76000 146000 4600
NKI 90/36 90 100 120 36 1 111000 237000 4600
NA 4918 90 105 125 35 1.1 114000 250000 4400
NA6918 90 105 125 63 1.1 172000 425000 4400
95 NKI 95/26 95 105 125 26 1 78000 155000 4400
NKI 95/36 95 105 125 36 1 114000 250000 4400
NA 4919 95 110 130 35 1.1 116000 260000 4200
NA 6919 95 110 130 63 1.1 174000 440000 4200

Bearing Roller Needle With Inner Ring For Tractor Model 1845 1845B 1845C 1845SBearing Roller Needle With Inner Ring For Tractor Model 1845 1845B 1845C 1845S

Bearing Roller Needle With Inner Ring For Tractor Model 1845 1845B 1845C 1845S
