144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
Specifications
Brand Name :
TTNergy
Model Number :
TTNMH144-xxx-M10
Place of Origin :
Zhejiang, China
Cell size :
182mmx182mm
Type :
PERC, Half Cell, Bifacial, Double-glass, All Black

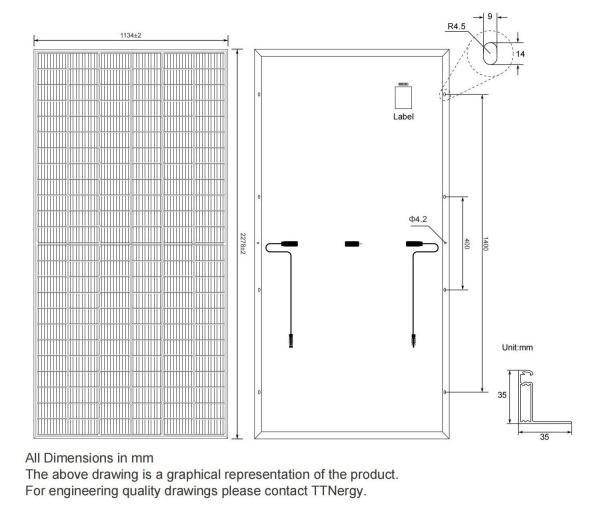

Panel Dimensions :
2278x1134x35mm
Panel Efficiency :
21.67%
Warranty :
30 years
Product name :
540w 550w 560w solar photovolta panel monocrystallin panel solar 600w
Solar cell :
A-grade
Junction Box :
IP68 Rated
Connector :
QC4 Compatible Connector
Color :
Blue Ad Black
Front Glass :
3.2mm HighTransmission
Output Cables :
4.0mm2, 300/400mm in length
Maximum system Voltage :
1000V/1500V DC
Application :
Home Commercial Solar System
Frame :
Anodized Aluminium Alloy
Certificate :
TUV/CE/IEC/ISO/INMETRO
Packaging Details :
Rotterdam warehouse in stock 48v 540w 550w 560w solar photovolta panel monocrystallin panel solar 600w
31pcs/pallet, 620pcs/40HQ
Port :
Shenzhen/Ningbo/Shanghai/Guangzhou
Supply Ability :
2000000 Watt/Watts per Day
MOQ :
1000 watts
Price :
$0.18/watts 1000-299999 watts
Description

TTNergy Mono crystalline 182mm 10BB Solar panel

PERC 182mm Solar Cell with Solar Panel's efficiency up to 21.47%
182mm solar panel use 182mm 10BB/11BB solar cell, increases the wafer size, optimizes the layout profoundly and decreases the invalid power generation area.
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
Model
Maximum Power
Efficiency
External Dimensions
Weigh
Solar Cells
Tandem structure
TTNMH156-600-M10
600W
21.47%
2464x1134x35mm
32kg
Mono crystalline 182mm (2x78pcs)
10/11BB
TTNMH156-595-M10
595W
21.29%
TTNMH156-590-M10
590W
21.12%
TTNMH156-585-M10
585W
20.94%
TTNMH156-580-M10
580W
20.76%
TTNMH156-575-M10
575W
20.58%

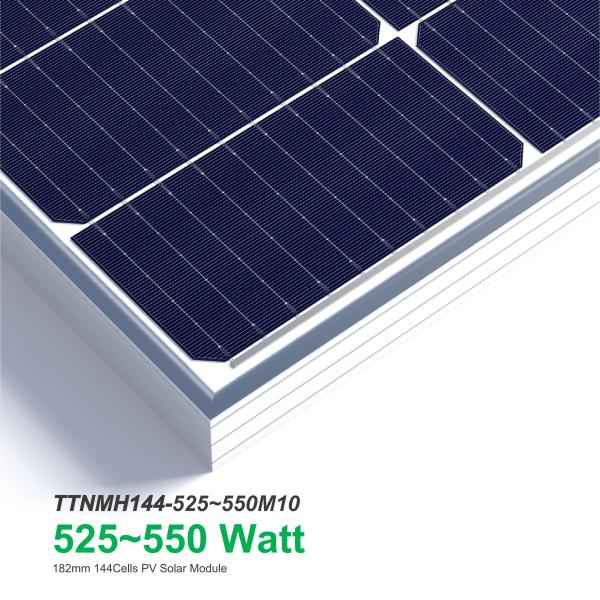

TTNMH144-550-M10
550W
21.30%
2278x1134x35mm
28.6kg
Mono crystalline 182mm (2x72pcs)
TTNMH144-545-M10
545W
21.10%
TTNMH144-540-M10
540W
20.90%
TTNMH144-535-M10
535W
20.70%
TTNMH144-530-M10
530W
20.50%
TTNMH144-525-M10
525W
20.30%
TTNMH132-505-M10
505W
21.30%
2094x1134x35mm
26.3kg
Mono crystalline 182mm (2x66pcs)
TTNMH132-500-M10
500W
21.10%
TTNMH132-495-M10
495W
20.80%
TTNMH132-490-M10
490W
20.60%
TTNMH132-485-M10
485W
20.40%
TTNMH132-480-M10
480W
20.30%
TTNMH120-460-M10
460W
21.10%
1909x1134x35mm
24kg
Mono crystalline 182mm (2x60pcs)
TTNMH120-455-M10
455W
20.80%
TTNMH120-450-M10
450W
20.60%
TTNMH120-445-M10
445W
20.40%
TTNMH120-440-M10
440W
20.30%
TTNMH108-415-M10
415W
21.30%
1722x1134x30mm
20.5kg
Mono crystalline 182mm (2x54pcs)
TTNMH108-410-M10
410W
21.10%
TTNMH108-405-M10
405W
20.80%
TTNMH108-400-M10
400W
20.50%
TTNMH108-395-M10
395W
20.20%
TTNMH108-390-M10
390W
20.00%
Only some models, please contact customer service if other models are needed.
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use


Half Cell Technology
The half-cut cell design can decrease the power loss by the shadow effectively. The optimized circuit design not only realizes the
maximum power output but also assures the reliability of solar panels.


MBB Technology
TTNergy 182mm Solar Panel adopts multibusbar technology. More busbars of the cell decrease the current transverse propagation path by 50%, effectively reduce the internal loss, and improve power of solar panels.
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use


Standard & All Black Solar Panels max power breaks through 600W+
01. 108/120/132/144/156 Cells Solar Panels
02. All Black Solar Panel for home use
03. 380W-600W+ Solar Panel, Suitable for all
scenarios, from large power stations to residential roofs
Solar cell

TTN-M10-10B
182mm Mono Solar Cell
Efficiency: 21.5%-22.8%
Format: 182mm×182mm±0.25mm
Thickness: 180±18μm
Front(-): 0.6mm bus bars(silver),
blue anti-reflecting coating(silicon nitride)
Back(+): 2.0mm wide soldering pads
(silver back surface field(aluminum)

TTNergy High-efficiency 10BB Mono cell uses the unique bifacial light receiving structure and the Passivated Emitter and Rear Cell(PERC) technology. Manufacturing module with more than 360W(6×10) and 430W(6×12) power output becomes easier than ever.
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
More models
The following models are all TTNergy 182mm 10BB solar cells. We also have other solar cell models, which may have different sizes. If you need them, please contact customer service.
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
40W
Efficiency 17.46%
580×395×25mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
50W
Efficiency 17.83%
710×395×25mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
60W
Efficiency 17.77%
855×395×25mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
70W
Efficiency 17.99%
985×395×30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
80W
Efficiency 18.35%
570×765×30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
90W
Efficiency 18.24%
645×765×30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
100W
Efficiency 18.16%
720×765×30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
110W
Efficiency 18.20%
790×765×30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
120W
Efficiency 19.34%
1070×580×30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
130W
Efficiency 19.20%
885×765×30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
140W
Efficiency 19.01%
980×765×30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
150W
Efficiency 15.04%
1045×765x30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
160W
Efficiency 19.63%
1105×765×30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
170W
Efficiency 19.16%
1170×765×30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
180W
Efficiency 18.90%
1245×765×30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
190W
Efficiency 18.82%
1320×765×30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
200W
Efficiency19.01%
1375x765x30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
210W
Efficiency 18.80%
1460×765×30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
220W
Efficiency19.90%
1445×765×30mm
144 cells 550W 645w 650W 655W 660W mono solar panel 48V 665W solar module for home use
230W
Efficiency 19.59%
1535×765×35mm
