12v 24v 220v UPS 10000 watt modified power inverter with battery charger Inverters & Converters

Specifications

Network :

NFC, SDK

Customized support :

Software reengineering

Place of Origin :

Zhejiang, China

Brand Name :

TTN

Model Number :

TTN-SGPC

Type :

DC/AC Inverters

Output Type :

Single

Output Current :

Depend on load

Output Frequency :

50Hz/60Hz

Size :

19.5*11.2*6cm

Weight :

1.2kg

Certificate :

CE RoHS

Product Name :

12V 220V Inverter

Max Working Efficiency :

94%

Output Waveform :

Pure Sine Wave

USB :

5V 1000MA/2000MA

Storage Temperature :

-50℃~+70℃

Operating Temperature Range :

-40℃~+60℃

Protection :

Battery over under/over voltage,overload, AC short circuit protection

Packaging Details :

small capacity products (Automatic Voltage Regulators/Stabilizers), colour box as inner package and cardboard carton as outer package.
big capacity products, we use strong plywood case.

Port :

Ningbo or Shanghai or any other ports in China.

Supply Ability :

600 Piece/Pieces per Day

Price :

$38.00/pieces 1-9 pieces

Description

Products Description

TTN Pure Sine Wave Inverter With AC Charger

TTN-SGPC 500W / 1000W / 1500W / 2000W
/ 3000W / 4000W / 5000W / 6000W

Introduction of power inverter:
1. This inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is indeed pure. The unique dynamic current loop control technology ensures reliable operation of the inverter, high reliability, strong shock resistance, low solder joint defect rate, reducing battery and radio frequency interference.
2. Load adaptability, including inductive load, capacitive load, resistive load, Hybrid load. High performance at over-load capacity and impact resistance.
3. Eight intelligent protection, overload protection, high voltage protection, low voltage protection, over temperature protection, reverse polarity protection, short circuit protection, over current protection, insurance protection.
4. The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.
5. Stable performance, safe and reliable, long service life.

6.Aluminum-magnesium alloy casing, light weight, good thermal conductivity, can quickly reduce the temperature of parts,
long-term work is not affected.

7. intelligent temperature control fan, make the inverter quieter. When the temperature is ≤ 45 °C, the fan stops working; when the temperature is ≥ 45 °C, the fan starts to work.

8. Buzzer reminder device. Once any protection of the inverter is triggered, the inverter will immediately disconnect the power supply, the load enters the protection mode and reminds people via a buzzer reminder.

9. Low standby power consumption and high conversion rate.

10.Smart C-With AC Charger

Model	500W- 12/24/48V	1000W- 12/24/48V	1500W- 12/24/48V	2000W- 12/24/48V
Model		3000W- 12/24/48V	4000W- 12/24/48V	5000W- 12/24/48V	6000W- 12/24/48V
Rated Power	500W~6000W
Peak Power	1000W~12000W
Input Voltage	12VDC/24VDC/48VDC/96VDC
Output Voltage	110VAC±5%/220VAC±5%
USB Port	5V1A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
Charging Current	10/20/30A optional
Priority	City Power First Priority
Transfer Time	4ms
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	0.1A~3.8A
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit. Reverse Polarity
Working Temperature	-10℃ - +50℃
Warranty	1 Years

Voltage Range	12V	24V	48V
DC Voltage Range	10-15.5V	20-31V	40-61V
Low Voltage Alarm	10.5±0.5V	21±0.5V	42±1V
Low Voltage Shut Down	10±0.5V	20±0.5V	40±1V
Low Voltage Recovery	13±0.5V	24±0.5V	48±1V
Over Voltage Shut Down	15.5±0.5V	31±0.5V	61±1V
Over Voltage Recovery	14.8V±0.5V	29V±0.5V	59V±1V

Model	500W	1000W	1500W	2000W
Net Dimension	36.216.58.7cm (LxWxH)	4316.58.7cm (LxWxH)	4316.511.5cm(LxWxH)	4316.511.5cm(LxWxH)
Inner Box Dimension	45.620.612.2cm(LxWxH)	45.620.612.2cm(LxWxH)
Meas/Ctn	5247.538cm/4pcs	5247.538cm/4pcs	49.521.520cm/1pcs	49.521.520cm/1pcs
N.W/Unit	4kg	5.5kg	7.5kg	7.5kg
G.W/Ctn	19KGS	25KGS	8KGS	8KGS
Packing	carton	Colour box	Colour box	Colour box

Model	3000W	4000W	5000W	6000W
Net Dimension	46.521.615.6cm(LxWxH)	46.521.615.6cm(LxWxH)	51.521.615.6cm(LxWxH)	51.521.615.6cm(LxWxH)
Meas/Ctn	6031.525cm/1pcs	6531.525cm/1pcs	7031.525cm/1pcs	7031.525cm/1pcs
N.W/Unit	12kg	13kg	14kg	15kg
G.W/Ctn	13.5KGS	15KGS	16KGS	17KGS
Packing	carton	Honeycomb carton	Honeycomb carton	Honeycomb carton

Product Details

500W

1000W

1500W

2000W

3000w

4000W

5000W

6000W

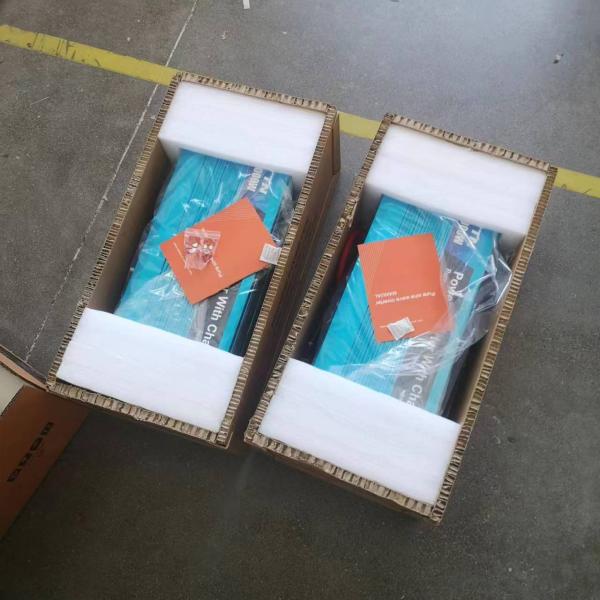

Product packaging

Honeycomb carton

Super protective packaging.

Carton

Multi-layer cardboard synthetic carton, solid and durable.
