Specifications
Brand Name :
TTNergy
Model Number :
TTN50~1000W
Place of Origin :
Zhejiang, China
Cell size :
156.75mmx156.75mm
Type :
Flexible, Half Cell, HJT, PERC
Panel Dimensions :
2279x1134x35mm
Panel Efficiency :
540w, >20%
Warranty :
30 years
Product name :
Mono Solar Panel
Application :
Solar Power System Home
Glass :
3.2mm, High Transmission, AR Coated Heat Strengthene
Encapsulant Material :
EVA/POE
Connector :
Compatible MC-4/Male/Female/Fuse
Cable :
4mm2; Portrait/Landscape Length
Frame :
Silver / Black Anodized Aluminium Alloy
Junction Box :
IP68 Rated
Certificate :
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
Packaging Details :
Carton box with wooden pallet
Supply Ability :
50000 Piece/Pieces per Day
MOQ :
1000 watts
Price :
$0.23/watts 1000-4999 watts
Description

TTNergy Solar panel

TTNergy solar panel factory can work for various advanced technology production requirements. The annual production capacity of solar panels has reached 7GW.
The advanced automatic production line opened a new era for capacity, and achieve the transition from manufacturing to intelligent manufacturing.
We have HJT, TOPCon, and BIPV production lines, covering all mainstream product technologies on the market. Production line is compatible with multi-busbar cells of various sizes 166 / 182 / 210 mm super-sized cells.
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate
Partial model parameters
Model
Maximum Power
Efficiency
External Dimensions
Weigh
Solar Cells
Tandem structure
TTNMH132-670-M12
670W
21.60%
2384×1303×35mm
33kg
Mono crystalline 210mm (2x66pcs)
12BB
TTNMH132-665-M12
665W
21.40%
TTNMH132-660-M12
660W
21.20%
TTNMH132-655-M12
655W
21.10%
TTNMH132-650-M12
650W
20.90%
TTNMH120-620-M12
620W
21.89%
2172×1303×35mm
30.5kg
Mono crystalline 210mm (2x60pcs)
TTNMH120-615-M12
615W
21.73%
TTNMH120-610-M12
610W
21.56%
TTNMH120-605-M12
605W
21.38%
TTNMH120-600-M12
600W
21.21%
TTNMH150-505-M12
505W
21.10%
2185×1098×35mm
30.5kg
Mono crystalline 210X70mm (5X30pcs)
TTNMH150-500-M12
500W
20.90%
TTNMH150-495-M12
495W
20.70%
TTNMH150-490-M12
490W
20.50%
TTNMH150-485-M12
485W
20.30%
Model
Maximum Power
Efficiency
External Dimensions
Weigh
Solar Cells
Tandem structure
TTNMH156-600-M10
600W
21.47%
2464x1134x35mm
32kg
Mono crystalline 182mm (2x78pcs)
10/11BB
TTNMH156-595-M10
595W
21.29%
TTNMH156-590-M10
590W
21.12%
TTNMH156-585-M10
585W
20.94%
TTNMH156-580-M10
580W
20.76%
TTNMH156-575-M10
575W
20.58%
TTNMH144-550-M10
550W
21.30%
2278x1134x35mm
28.6kg
Mono crystalline 182mm (2x72pcs)
TTNMH144-545-M10
545W
21.10%
TTNMH144-540-M10
540W
20.90%
TTNMH144-535-M10
535W
20.70%
TTNMH144-530-M10
530W
20.50%
TTNMH144-525-M10
525W
20.30%
TTNMH132-505-M10
505W
21.30%
2094x1134x35mm
26.3kg
Mono crystalline 182mm (2x66pcs)
TTNMH132-500-M10
500W
21.10%
TTNMH132-495-M10
495W
20.80%
TTNMH132-490-M10
490W
20.60%
TTNMH132-485-M10
485W
20.40%
TTNMH132-480-M10
480W
20.30%
TTNMH120-460-M10
460W
21.10%
1909x1134x35mm
24kg
Mono crystalline 182mm (2x60pcs)
TTNMH120-455-M10
455W
20.80%
TTNMH120-450-M10
450W
20.60%
TTNMH120-445-M10
445W
20.40%
TTNMH120-440-M10
440W
20.30%
TTNMH108-415-M10
415W
21.30%
1722x1134x30mm
20.5kg
Mono crystalline 182mm (2x54pcs)
TTNMH108-410-M10
410W
21.10%
TTNMH108-405-M10
405W
20.80%
TTNMH108-400-M10
400W
20.50%
TTNMH108-395-M10
395W
20.20%
TTNMH108-390-M10
390W
20.00%
Model
Maximum Power
Efficiency
External Dimensions
Weigh
Solar Cells
Tandem structure
TTNMH144-460-M6
460W
21.20%
2094x1038x35mm
23.3kg
Mono crystalline 166mm (2x72pcs)
9BB
TTNMH144-455-M6
455W
20.90%
TTNMH144-450-M6
450W
20.70%
TTNMH144-445-M6
445W
20.50%
TTNMH144-440-M6
440W
20.20%
TTNMH144-435-M6
435W
20.00%
TTNMH144-430-M6
430W
19.80%
TTNMH120-380-M6
380W
20.90%
1755x1038x35mm
19.5kg
Mono crystalline 166mm (2x60pcs)

TTNMH120-375-M6
375W
20.60%
TTNMH120-370-M6
370W
20.30%
TTNMH120-365-M6
365W
20.00%
TTNMH120-360-M6
360W
19.80%
Only some models, please contact customer service if other models are needed.
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate
210mm 12BB Solar panel
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate
182mm 10BB Solar panel
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate
166mm 9BB Solar panel
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate
HJT Solar panel
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate
TOPCon Solar panel
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate
Solar cell
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate

TTN-P2-5B
156.75mm Poly Solar Cell
Efficiency: 17.5%-19.0%
Format:156.75mm×156.75mm±0.25mm
Thickness: 200μm±20μm
Front(-): 0.7mm bus bars(silver),
blue anti-reflecting coating(silicon nitride)
Back(+): 2.0mm wide soldering pads
(silver back surface field(aluminum)

TTN-G1-5B
158.75mm Mono Solar Cell
Efficiency: 21.4%-22.8%
Format:158.75mmX158.75mm±0.25mm
Thickness: 190±30μm
Front(-): 0.7mm bus bars(silver),
blue anti-reflecting coating(silicon nitride) Back(+): 1.8mm wide soldering pads
(silver back surface field(aluminum)
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate

TTN-M6-9B
166mm Mono Solar Cell
Efficiency: 22.0%-22.9%
Format:166mm×166mm±0.25mm
Thickness: 190±30μm
Front(-): 0.7mm bus bars(silver),
blue anti-reflecting coating(silicon nitride)
Back(+): 1.5mm wide soldering pads
(silver back surface field(aluminum)

TTNergy High-efficiency 9BB Mono cell uses the unique bifacial light receiving structure and the Passivated Emitter and Rear Cell(PERC) technology. Manufacturing module with more than 360w(6×10) and 440W(6×12) power output becomes easier than ever.

TTN-M10-10B
182mm Mono Solar Cell
Efficiency: 21.5%-22.8%
Format: 182mm×182mm±0.25mm
Thickness: 180±18μm
Front(-): 0.6mm bus bars(silver),
blue anti-reflecting coating(silicon nitride)
Back(+): 2.0mm wide soldering pads
(silver back surface field(aluminum)

TTNergy High-efficiency 10BB Mono cell uses the unique bifacial light receiving structure and the Passivated Emitter and Rear Cell(PERC) technology. Manufacturing module with more than 360W(6×10) and 430W(6×12) power output becomes easier than ever.
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate

TTN-HJT-M6-9B
HJT + MBB + Half-cut Solar Technology 480W Solar Panel, 22.1% Ultra-high Eff
Based on N-type Silicon wafer, TTNergy HJT solar panels with 9BB 144 half-cut cells have higher efficiency, better performance and
durability. The manufacturing process of an HJT Cell is more efficient and taking less step compare with other cell processing
technology. HJT solar cell is also a natural bifacial cell, with much better stable solar cell color.

HJT solar panel has Excellent weak light performance. When under the cloudy, haze condition, weak light performance help get more
production.A temperature coefficient rating of -0.24%/C, helps generate greater electricity output on the hottest days. Support
HJT solar panels to generate up to 4% more power than mainstream PERC solar panels at high temperatures.
Compared with PERC solar panels with a power warranty of 80% for 25 years, HJT solar panel can ensure more than 90% power generation after 30 years, and the power generation within 30 years is much higher than PERC solar panel.
In addition, HJT solar panel has 90%+ Bifaciality, the power generated from the back of solar panel reaches more than 90% of that from the front. Double stacked power generation is higher.
TTNergy HJT solar panel use HJT solarcell technology, result in extremely low LID and PID which supports reliability and longevity. Supports 5% more power generation than PERC solar panel.


TTN-TOP-M16-16BB
Extraordinary N-type Solar Panel
575W Solar Panel, 22.26% Ultra-high Eff
Comparing with PERC solar panel, TOPCon solar panel based on Ntype Silicon wafer, have longer lifetime, lower degradation and
higher potential of efficiency enhance. 430w TOPCon solar panel’s efficiency up to22.02%, 575w TOPCon solar panel's efficiency up
to 22.26%.
TOPCon Solar Panel adopts 16-busbar technology. More busbars of the cell decrease the current transverse propagation path by 50%, effectively reduce the internal loss, and improve power of solar panels.The half-cut cell design can decrease the power loss by
the shadow effectively. The optimized circuit design not only realizes the maximum power output but also assures the reliability
of solar panels.
Factory Price Home Use 270W 280W 300W 380W Poly/Mono Solar Panel 18V Modules Solar Cell Plate
TTNergy TOPCon solar panel has Excellent weak light performance. When under the cloudy, haze condition, weak light performance help get more production. The temperature coefficient of PERC solar panel is -0.35%/C, TOPCon solar panel is -0.30%/C. A temperature coefficient rating of-0.30%/C, Support TOPCon solar panels to generate up to 2% more power than PERC solar panels at high temperatures.

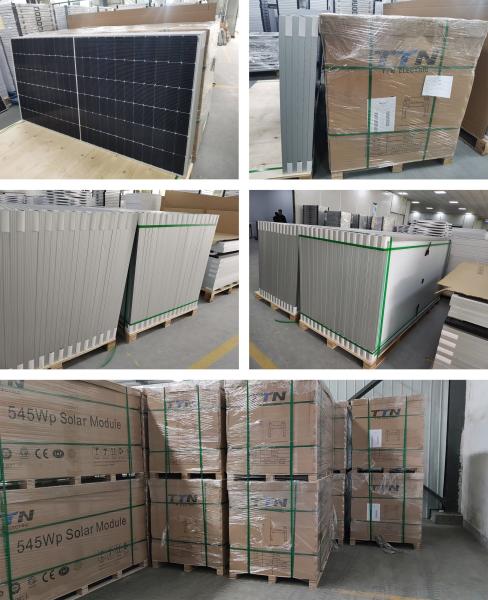

Product packaging
