2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light
2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light
2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light
2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light
2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light
2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light
2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light
2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light
2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light
2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light
2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light
2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
TTNergy
Model Number :
TTN-NM-IV 3.6KK/4.2KW/6.2KW
Input Voltage :
220V/230V/240V
Output Voltage :
220V/230V/240V
Output Current :
15.2A
Output Frequency :
50/60HZ
Output Type :
Single
Size :
42*31*11
Type :
DC/AC Inverters
Inverter Efficiency :
93%
Certificate :
CE
Warranty :
1 year
Weight :
13KGs
Output waveform :
Prue Sine Wave
Rated power :
3600VA/6200W
Color :
Blue
Product name :
MPPT Hybrid Solar Inverter
Application :
Solar Power System Home
Wave form :
Pure Sign Wave
Peak power :
2 Times
Battery Voltage :
24VDC
Display :
LCD
Frequency :
50/60 HZ
Packaging Details :
Standard Export Carton with foam inside suitable for long-distant ocean shipment and tough handling.
Port :
Shenzhen/Ningbo/Shanghai/Guangzhou
Supply Ability :
50000000 Piece/Pieces per Month
Price :
$230.00/pieces 1-99 pieces
Description
Products Description

TTN Solar Inverter


An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.
2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light

TTN-NM-IV 3600W 4200W 6200W


Higher yields / Safe & Reliable / Smart / User-friendly

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Pure sine wave solar inverter(on/off Grid)
Output power factor 1.0
WIFI&GPRS available for IOS and Android

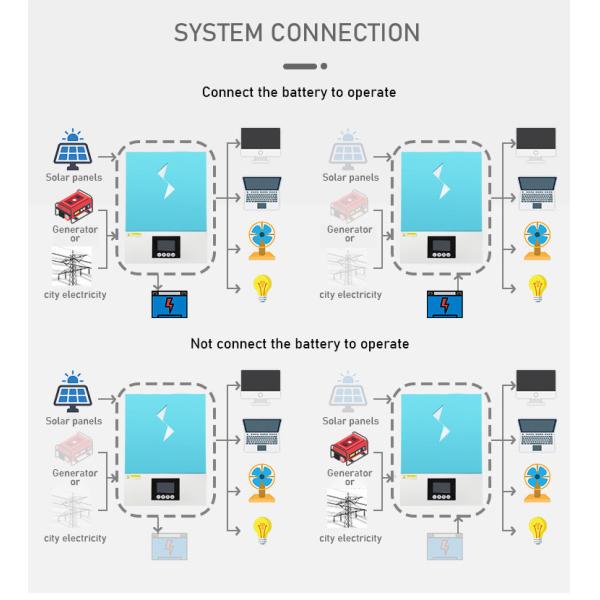

Inverter can run without battery
One-key restoration to factory Settings
Built-in Lithium battery automatic activation Built-in 120A(for 3.6KW/6.2KW)/140A(for 4. 2KW) MPPT Solar charge: max 6200w(for 3.6kw/4.2kw), max 6500w (for 6.2kw)
High PV input voltage range(90~500VDC)
Built-in anti-dustkit for harsh environment
Smart battery charge design to optimize battery life
2023 New 120A MPPT Charger Controller Pure Sine Wave on/Off Grid 6200W Hybrid Solar Inverter w/RGB Light
Model
TTN-NM-IV-3600W
TTN-NM-IV-4200W
TTN-NM-IV-6200W
Phase
1-Phase
Maximum PV Input Power
6200W
6200W
6500W
Rated Output Power
3600W/3600VA
4200W/4200VA
6200W/6200VA
Maximum Solar Charging Current
120A
140A
120A
GRID-TIE OPERATION
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage
360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage
90VDC/120VDC
MPPT Voltage Range
90~450VDC
Number of MPPT/Max Input Current
1/27A
GRID OUTPUT(AC)
Norminal Output Voltage
220/230/240VAC
Output Valtage Range
195.5~253VAC
Norminal Output Current
15.7A
18.2A
27.0A
Power Factor
>0.99
Feed-in Grid Frequency Range
59~61±1Hz
EFFICIENCY
Max Conversion Efficiency(Solar to AC)
98%
TWO LOAD OUTPUT POWER(V2.0)
Full Load
3600W
4200W
6200W
Maximum Main Load
3600W
4200W
6200W
Max Second Load(battery mode)
1200W
1400W
2067W
Main Load Cut Off Voltage
22VDC
22VDC
44VDC
Main Load Return Voltage
24VDC
24VDC
48VDC
OFF-GRID OPERATION
AC Input
AC Start-up Voltage/Auto Restart Voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VAC or 170-280VAC
Maximum AC Input Current
30A
30A
40A
Nominal operating frequency
50/60Hz
Surge power
7200W
8400W
12400W
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Waveform
Pure sine wave
Efficiency(DC to AC)
94%
BATTERY&CHARGER
Nominal DC Voltage
24VDC
24VDC
48VDC
Maximum Solar Charging Current
120A
140A
120A
Maximum AC Charging Current
100A
GENERAL
PHYSICAL
Dimension,D*W*H(mm)
420*310*110
Net Weight(Kgs)
10
11
11
INTERFACE
Communication Port
RS232/WiFi/GPRS
ENVIRONMENT
Operating Temperature
-10~50℃

Note:

How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
