Press Brake Tooling Promecam Amada LVD JFY YAWEI YSD Accurlpress Steelmaster

Specifications

Place of Origin :

Anhui

Brand Name :

PSLASER

Certification :

ISO

Model Number :

Customized

MOQ :

4@835mm

Price :

200$ each off

Packaging Details :

plywood case

Delivery Time :

2~4 weeks

Payment Terms :

T/T in advance

Supply Ability :

100 PCS PER MONTH

Material :

42CrMo4 from Germany

Hardness :

48-52HRC

Tolerance :

0.02mm

Moq :

4@835mm

Roughness :

1.6

Description

Press Brake Tooling For zymt

We always use raw material 42CrMo4 to produce the popular press brake tooling and all the tooling are hardened and ground to reach the hardness of 48~52 HRC (Rockwell hardness), the procedure for holistic heat treatment is as follow :

quenching + tempering + 860 °C Oil quenching + 390°C Tempering .

At last ,the tolerance of tooling we can control is +/-0.02mm

Range:

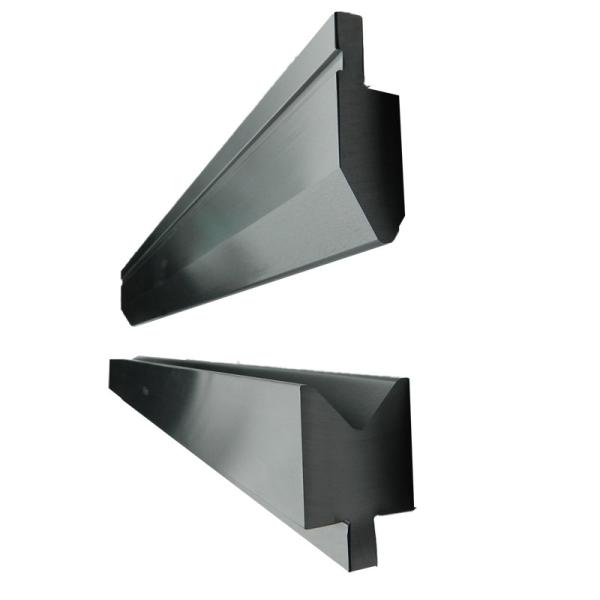

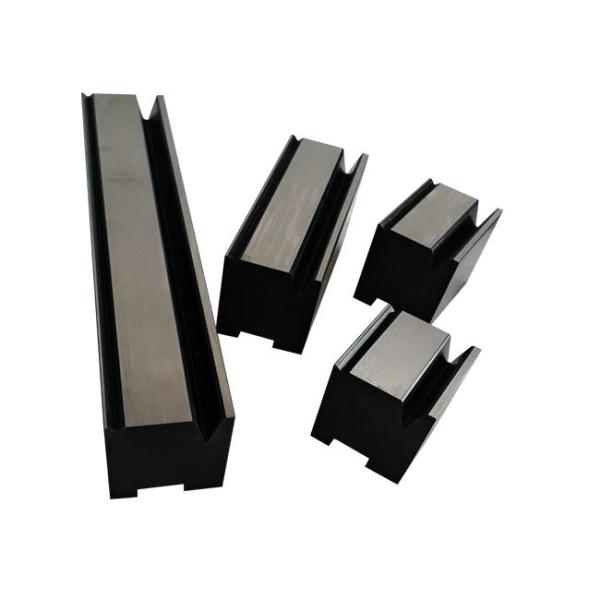

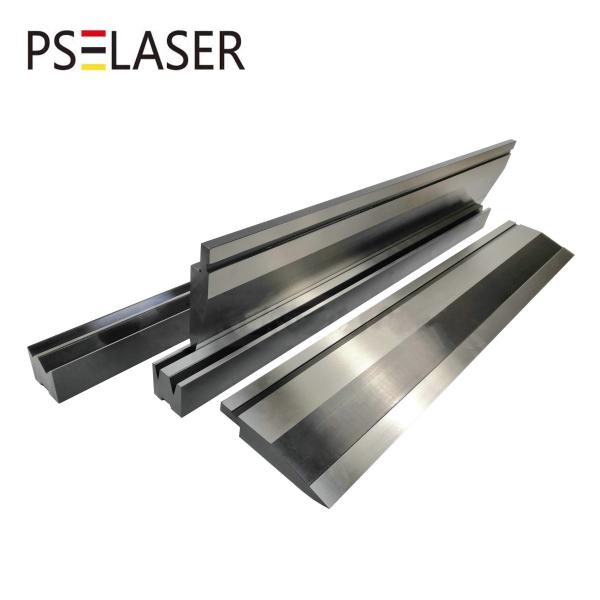

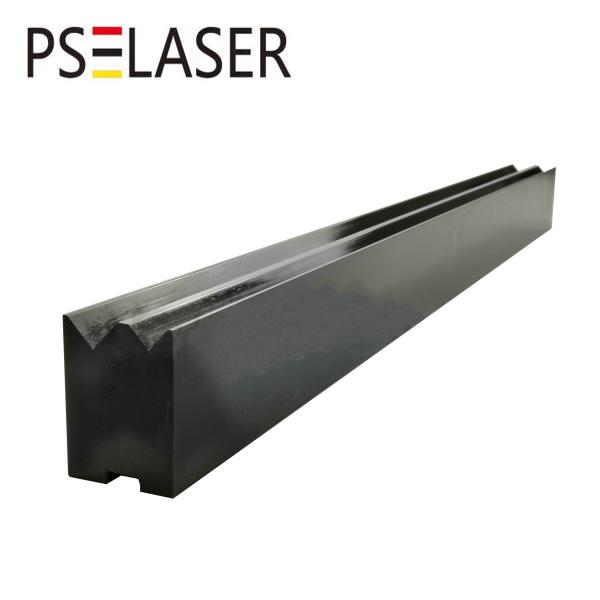

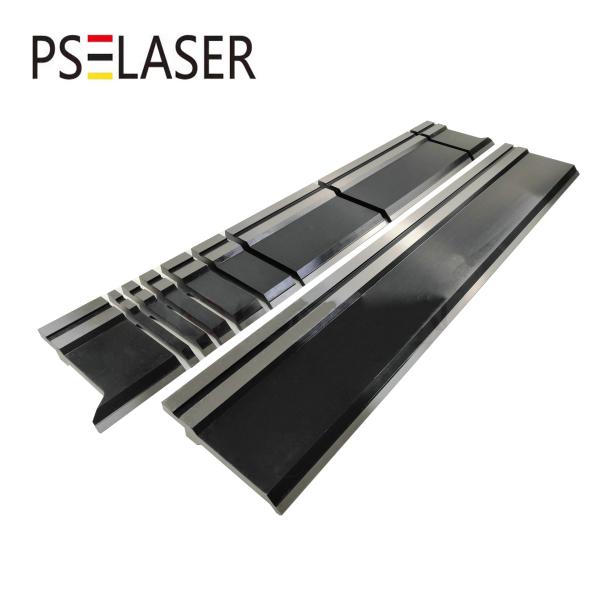

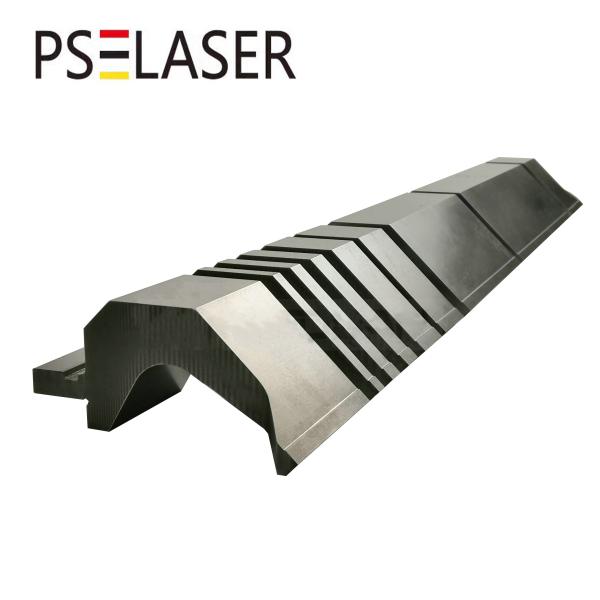

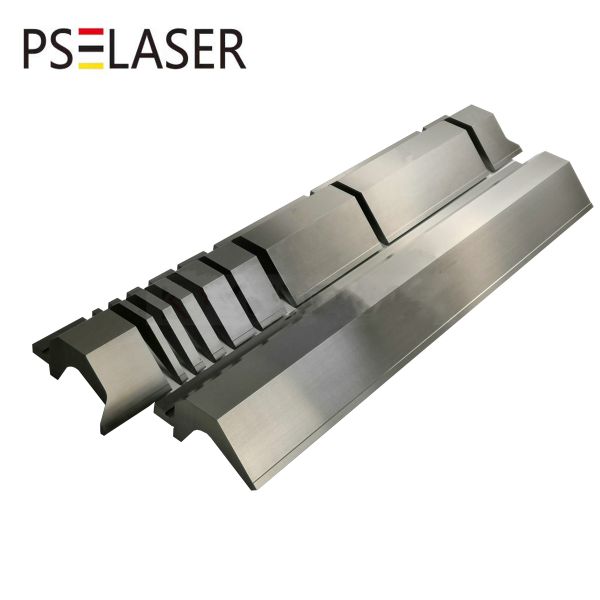

we can manufacture Acute tooling, Goose neck punch ,Single V die ,2 V die ,Multi V die block, die holder and upper adaptor for punch.
Popular size for the tooling is:26*97*835mm ,26*150*835mm, 60*60*835mm, 56*120*835mm

The longest bottom die we can make is up to 10 meters ( size:220*220*10,000mm)

Case:Year 2014, we manufactured one upper tooling (size : 25*165*6100mm ) and bottom tooling(120*120*6100mm) to one of famous machinery dealer in Australia .

Notes:

Also we can make special tooling such as adjustable channel lock bottom die which is used for big capacity press brake to bend thick steel plate

Press Brake Tooling Promecam Amada LVD JFY YAWEI YSD Accurlpress Steelmaster
