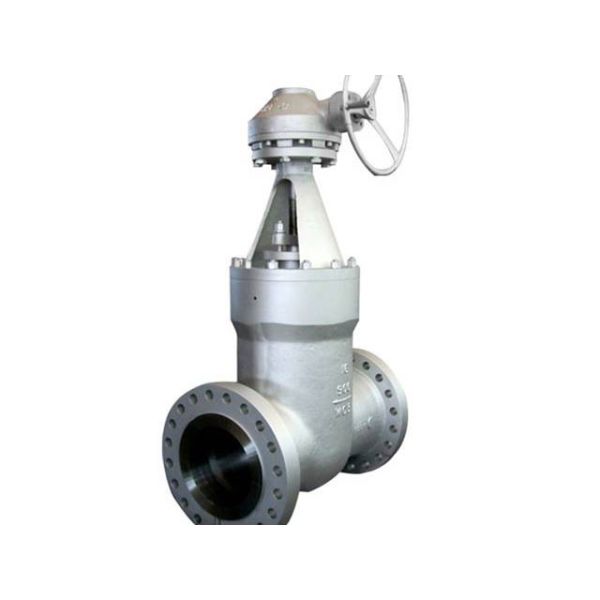

Carbon Steel / Stainless Steel Industrial Gate Valve High Pressure Seal Gate Valve
Carbon Steel / Stainless Steel Industrial Gate Valve High Pressure Seal Gate Valve
Carbon Steel / Stainless Steel Industrial Gate Valve High Pressure Seal Gate Valve
Carbon Steel / Stainless Steel Industrial Gate Valve High Pressure Seal Gate Valve
Carbon Steel / Stainless Steel Industrial Gate Valve High Pressure Seal Gate Valve
Carbon Steel / Stainless Steel Industrial Gate Valve High Pressure Seal Gate Valve
Specifications
Brand Name :
Zaval
Model Number :
ZGZ6D03
Certification :
API 600
Place of Origin :
China
MOQ :
1piece
Supply Ability :
negotiable
Delivery Time :
30 days
Packaging Details :
wooden case
Size Range :
1/2"-60"( 20-1500mm)
Pressure Rating :
Class900-2500( PN48-PN420)
Main Materials :
Carbon steel, Stainless steel, Alloy steel ,Monel, Duplex, Inconel
End Connections :
RF, RTJ, BW
Working temperature :
-46℃～+560℃
Operation :
Hand wheel, gear box, Electric , Pneumatic
Description

High Pressure Seal Gate Valve, Inch1/2"-60" Class900-2500, Carbon Steel, Stainless Steel

Zaval high pressure seal gate valves are designed in accordance with API600 and ASME B16.34 for service of high temperature and high pressure and are widely used in fossil fuel power plant. Compared with bolted bonnet joint valves, it provides absolute reliable sealing of the bonnet joint, so that the pressure seal valves are more compact and rigid as well as maintenance cost-effective at high temperature and high pressure service.

Design Features

Carbon Steel / Stainless Steel Industrial Gate Valve High Pressure Seal Gate Valve

The valve self-sealing type bonnet.
The disc wedging phenomenon is not liable to be caused when temperature rises.
Flexible wedge.
Full stellite overlay seat sealing surface
Full wedge guiding design.
Absolute bonnet joint leak proof.
Optional by-pass design.

Specifications

Design API 600
Face to Face ASME B16.10/API 6D
Flanged Ends ASMEB16.5/MSS-SP-44/ASME B16.25/SMBE B16.47
Shell Wall Thickness ASME B16.34
Marking/Surface Quality MSP-SP-25
Pressure Test API598 / API 6D
