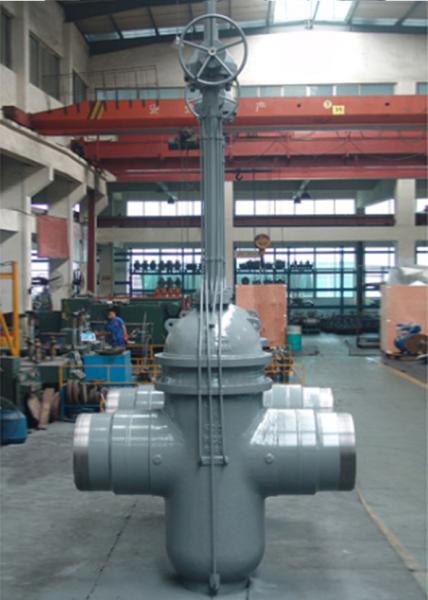

API 6D Industrial Gate Valve Inch 1/2 - 48 Class 150 - 2500 Pressure Rating
API 6D Industrial Gate Valve Inch 1/2 - 48 Class 150 - 2500 Pressure Rating
API 6D Industrial Gate Valve Inch 1/2 - 48 Class 150 - 2500 Pressure Rating
API 6D Industrial Gate Valve Inch 1/2 - 48 Class 150 - 2500 Pressure Rating
API 6D Industrial Gate Valve Inch 1/2 - 48 Class 150 - 2500 Pressure Rating
API 6D Industrial Gate Valve Inch 1/2 - 48 Class 150 - 2500 Pressure Rating
Specifications
Brand Name :
Zaval
Model Number :
ZGZ6D01
Certification :
API 6D
Place of Origin :
China
MOQ :
1piece
Supply Ability :
negotiable
Delivery Time :
30 days
Packaging Details :
wooden case
Size Range :
1/2"-48"( 20-1200mm)
Main Materials :
: Carbon steel, Stainless steel, Alloy steel ,Monel, Duplex, Inconel
End Connections :
RF, RTJ, BW
Working temperature :
-46℃～+200℃
Operation :
Hand wheel, gear box, Electric , Pneumatic
Applications :
transmission pipeline system of natural gas 、oil products and chemical engineering
Description

API 6D Through Conduit Slab Gate Valve Inch1/2"-48" Class150-2500, Carbon Steel, Stainless Steel

Zaval slab gate valve is a through conduit valve type. The design is ideal to minimize pressure drops and to prevent accumulation of external materials such as slurries into the valve cavity. The design is complies to the API6D standard with the high speed, little vibration, long performance life and reliable operation. It is mainly applied to cut-off or discharge of gas and liquid delivery pipelines.

Design Features

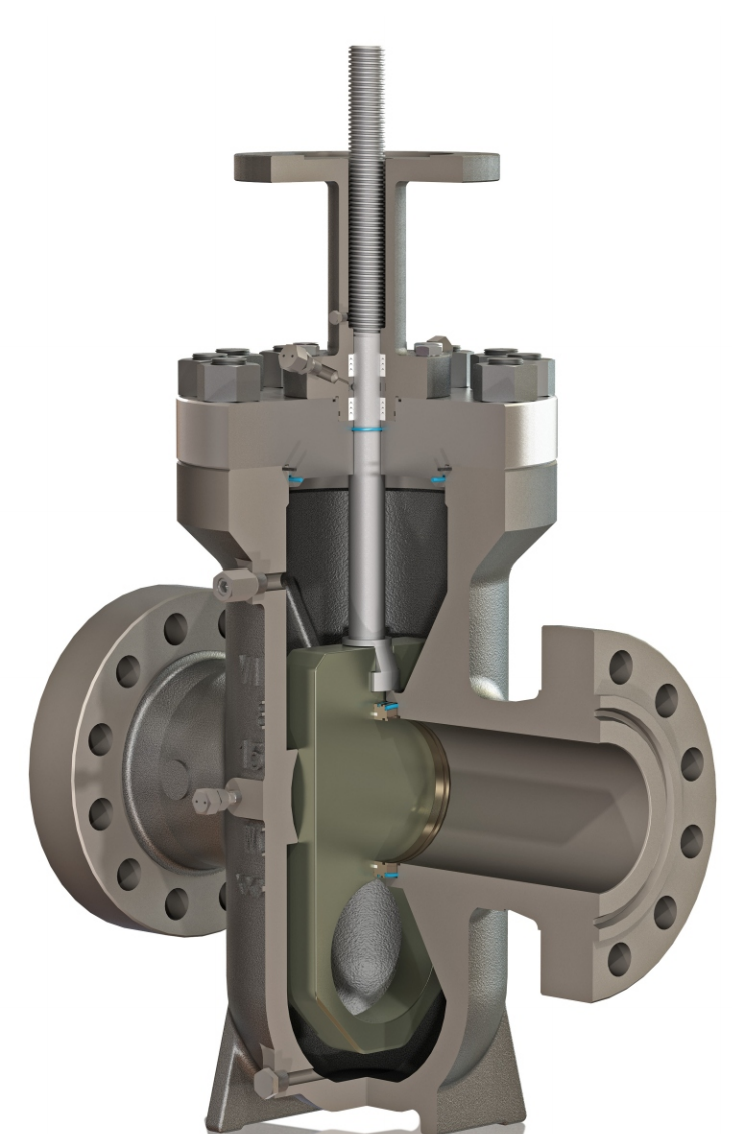

API 6D Industrial Gate Valve Inch 1/2

Full bore port for pigging and reduced pressure drop
Full protected seat sealing faces
Double block and bleed capability
Tight mechanical seal fo high / low pressure
Internal cavity pressure relief
Sealant injectors for seats and stem
Bi-directional

On-line repairable
Ease of on-line stem packing maintenance
Emergency sealant injection on seats

Specifications

Design API 6D
Face to Face ASME B16.10/API 6D
Flanged Ends ASMEB16.5/MSS-SP-44
Shell Wall Thickness ASME B16.34
Marking/Surface Quality MSP-SP-25
Pressure Test API598 / API 6D
