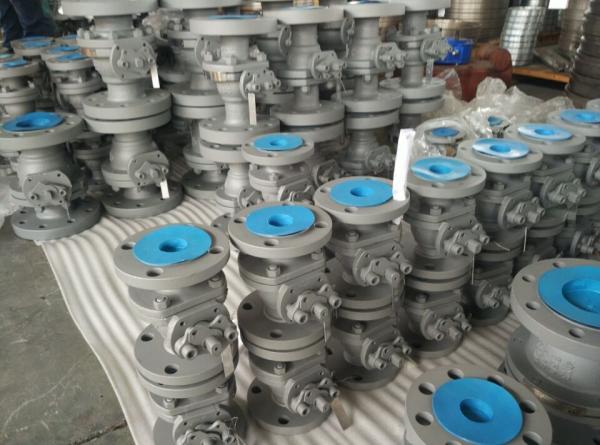

Casted End Entry Industrial Ball Valve Full / Reduces Bore Ports With Fire Safe Design
Casted End Entry Industrial Ball Valve Full / Reduces Bore Ports With Fire Safe Design
Casted End Entry Industrial Ball Valve Full / Reduces Bore Ports With Fire Safe Design
Casted End Entry Industrial Ball Valve Full / Reduces Bore Ports With Fire Safe Design
Specifications
Brand Name :
Zaval
Model Number :
BLFF710
Certification :
API 607
Place of Origin :
China
MOQ :
1 piece
Supply Ability :
negotiable
Delivery Time :
30 days
Packaging Details :
wooden case
Size Range :
1/2"-12" (15-300mm)
Body Style :
1 & 2 piece
Ports :
Full & Reduces Bore
Pressure Ratings :
Class 150-300 （PN10-PN40）
Design Standard :
ASME B16.34/BS5351/API6D/API608
Body Materials :
ASTM A216-WCB, ASTM A351-CF8M,ASTM A352-LCB
Operations :
Manual, Pneumatic Actuator
Applications :
Process, Refinery, Petrochemical,Power, Chemical,Paper
Working Temerature :
-46℃-343℃
Description

Casted End Entry , Side Entry Soft-Seated Floating Ball Valve 1&2PC Inch1/2"-12" Class150-300

Zaval casted end entry and side entry soft-seated floating ball valves are designed according to API 6D/ASME B16.34/BS5351/API 608. These valves are usually applied in low pressure at calss 150~300 with a wide temperature range (-46℃~343℃). The valves are fire safe designed and have been certified per API607 and API6FA. We can offer range consists of one-piece end entry (inch 3/4"-6") and two-piece split body (inch 1/2"-12") designs.Anti-Static Device, and blow-out proof stem, ISO5211 top mounting connection and lockable designs.

Design Features

1-piece,End Entry, Soft-Seated Casted Steel Inch 3/4"-10"( 20-150mm)

Casted End Entry Industrial Ball Valve Full / Reduces Bore Ports With Fire Safe Design

  1. Reliable Flow Locking Device: Valve is equipped with an integral locking device to secure flow.
  2. Blow-out proof stem: The lower end of the stem is T-shaped structured, protected by boss of body, which assures stem retention against any pressure.
  3. Fire Safe Design: Metal to metal sealing shuts off valve flow when soft sealing materials are destroyed by fire.
  4. ISO5211 connection dimension: actuator installation is simplified by using connection dimension recognized in international standards.
  5. Double "D" Stem Head: ensures handle lever will always be mounted correctly, parallel to the media flow, indicating valve open and closed positions.
  6. Emission-free Gasket: Low-emission graphite is employed in gasket to eliminate leakage.

2-piece,Side Entry, Soft-Seated Casted Steel Inch 1/2"-12"( 15-300mm)

Casted End Entry Industrial Ball Valve Full / Reduces Bore Ports With Fire Safe Design​

  1. Double "D" Stem Head: ensures handle lever will always be mounted correctly, parallel to the media flow, indicating valve open and closed positions.
  2. Blow-out proof stem: The lower end of the stem is T-shaped structured, protected by boss of body, which assures stem retention against any pressure.
  3. ISO5211 connection dimension: actuator installation is simplified by using connection dimension recognized in international standards.
  4. Fire Safe Design: Metal to metal sealing shuts off valve flow when soft sealing materials are destroyed
    by fire.
  5. Emission-free Gasket: Low-emission graphite is employed in gasket to eliminate leakage.

Specifications

Design ASME B16.34/API 6D/API 608/BS5351
Face to Face ASME B16.10/Manufacture standard
Flange/BW/SW/NPT ASME B16.5/ASME B16.25/ASME B16.11/ ASME B1.20.1
Shell Wall Thickness ASME B16.34
Marking/Surface Quality MSP-SP-25
Pressure Test API598 or API 6D
Fire Safe Test API607/API 6FA
Special NCAE MR0175
