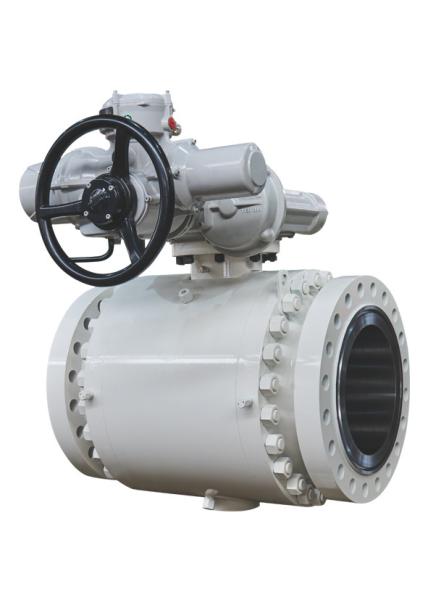

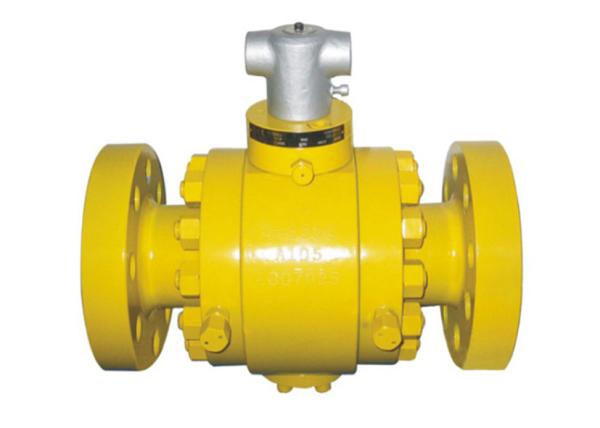

3 Piece Forged Steel Industrial Ball Valve Trunnion Mounted Class 150 - 2500
3 Piece Forged Steel Industrial Ball Valve Trunnion Mounted Class 150 - 2500
3 Piece Forged Steel Industrial Ball Valve Trunnion Mounted Class 150 - 2500
3 Piece Forged Steel Industrial Ball Valve Trunnion Mounted Class 150 - 2500
3 Piece Forged Steel Industrial Ball Valve Trunnion Mounted Class 150 - 2500
3 Piece Forged Steel Industrial Ball Valve Trunnion Mounted Class 150 - 2500
Specifications
Brand Name :
Zaval
Model Number :
BLFF310
Certification :
API 607 Fire Safe Certificate Approved. ASME B16.34,NACE MR0175
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, L/C
Supply Ability :
negotiable
Delivery Time :
45 days
Packaging Details :
wooden case
Ports :
Full & Reduced Bore
Body Style :
3 piece forged steel
Size Range :
2"-24"( 50-600mm)
End Connections :
RF, RTJ, BW
Body Material :
ASTM A 105N, ASTM A350- LF2, ASTM A182 F316
Seat Materials :
PTFE, Nylon, Devlon, PEEK, TFM
Ball Materials :
ASTM A105, ASTM A350, LF2, ASTM A182
Operations :
Manual, Gear, Pneumatic Actuator
Applications :
Oil & Gas, Offshore Platformas
Description

3PC Forging Trunnion Mounted Ball Valves Class 150-2500 Inch 2"-24"

Zaval forging trunnion mounted ball valves are designed according to API6D standard and be offered three-piece split body designs. The valves can be applied in wide pressure and temperature ranges (150LB~2500LB and -46~200℃), The series are subjected to fire safe test and certified per API607 and API6FA.

Design Features

3 Piece Forged Steel Industrial Ball Valve Trunnion Mounted Class 150 - 2500

  1. Two O-ring Seals: Prevent leakage from stem area
  2. Emergency Sealant Injection Fitting: Allows external interventions to prevent stem leakage.
  3. Blow-out Proof Stem : Safety feature that functions to assure stem sealing at all pressures.
  4. Emergency Sealant Injection Fitting: Allows external interventions to prevent seat leakage.
  5. Back-up Metal to Metal Sealing: When primary soft-seat material is deterorated by fire, the metal to metal provides shutoff.
  6. O-ring & Gasket Combination: Prevents leakage from body connection area.
  7. Floating Spring-loaded Seats: Assure sealing even at low pressures.

Specifications

Design

ASME B16.34/API 6D
Face to Face

ASME B16.10/API 6D
End to End ASME B16.10/API6D
End Flange ASME B16.5/B16.47A
BW End ASME B16.25
Test API 6D
Fire Safe Test API607/API 6FA
Special NCAE MR0175
