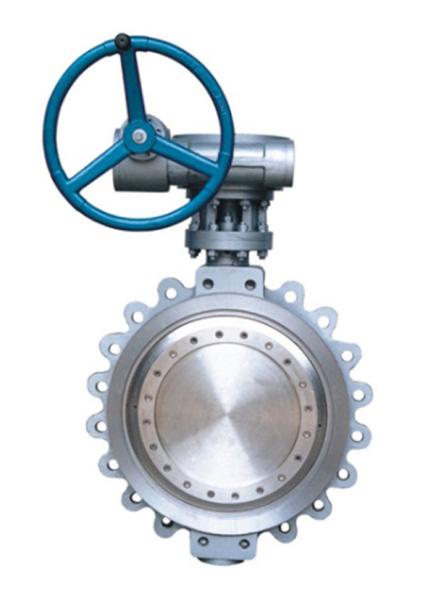

410SS Stem Material Industrial Butterfly Valve Zero Leakage Triple Offset Butterfly Valve
410SS Stem Material Industrial Butterfly Valve Zero Leakage Triple Offset Butterfly Valve
410SS Stem Material Industrial Butterfly Valve Zero Leakage Triple Offset Butterfly Valve
410SS Stem Material Industrial Butterfly Valve Zero Leakage Triple Offset Butterfly Valve
410SS Stem Material Industrial Butterfly Valve Zero Leakage Triple Offset Butterfly Valve
410SS Stem Material Industrial Butterfly Valve Zero Leakage Triple Offset Butterfly Valve
410SS Stem Material Industrial Butterfly Valve Zero Leakage Triple Offset Butterfly Valve
410SS Stem Material Industrial Butterfly Valve Zero Leakage Triple Offset Butterfly Valve
Specifications
Brand Name :
Zaval
Model Number :
ZBRS003
Certification :
API 609
Place of Origin :
China
MOQ :
5 pieces
Delivery Time :
30 days
Packaging Details :
wooden case
Size Range :
2" - 60"( 50-1500mm)
Body Style :
Wafer, Lug, Double Flanged, BW
Temperature Range :
-196℃-450℃
Pressure Ratings :
Class 150-600
Disc Materials :
Stainless Steel, Carbon Steel
Stem Materials :
410SS, 17-4PH
Seat Materials :
316SS hardened, 316SS
Applications :
Petrochemical, Refinery, Shipbuilding Industry
Description

Triple Offset Butterfly Valve , Inch 2"-60" Class150-600Carbon steel, Stainless steel, Duplex stainless steel

Zaval Double Offset Butterfly Valve is design offers rugged reliability and extremely easy maintenance in the field. These valves are Bi-directional with zero leak features. Resilient seat design also can achieve low torque which is easy for operation.Zaval High Performance Valve delivers the highest quality and highest value available for meeting today’s demanding requirements of zero leak.

Triple Offset Frictionless Design

1st offset: The stem shaft is offset from the sealing surface plane, allowing for a continuous engagement of the seating surface.
2nd offset: The stem shaft’s rotation axis is offset from the center of the bore, removing contact between the seat and the seal ring through most
of the disc’s travel.
3rd offset: The conical seating surface is offset asymmetrically to eliminate friction during opening and closing.

410SS Stem Material Industrial Butterfly Valve Zero Leakage Triple Offset Butterfly Valve

Design Features

410SS Stem Material Industrial Butterfly Valve Zero Leakage Triple Offset Butterfly Valve

1, Low Opening & Closing Torque

2, Zero Leakage

3, Fire Safe Design

4, Anti-blowout Shaft

5, Low Emission Shaft Seal

6, Compact Design

Technical specification


Design & manufacturing standard as per API 609, MSS SP-68
Face to face standard as per ASME B16.10, API 609, MSS SP-68
Fanged ends standard as per ASME B16.5, ASME B16.47
Testing & inspection standard as per API598
